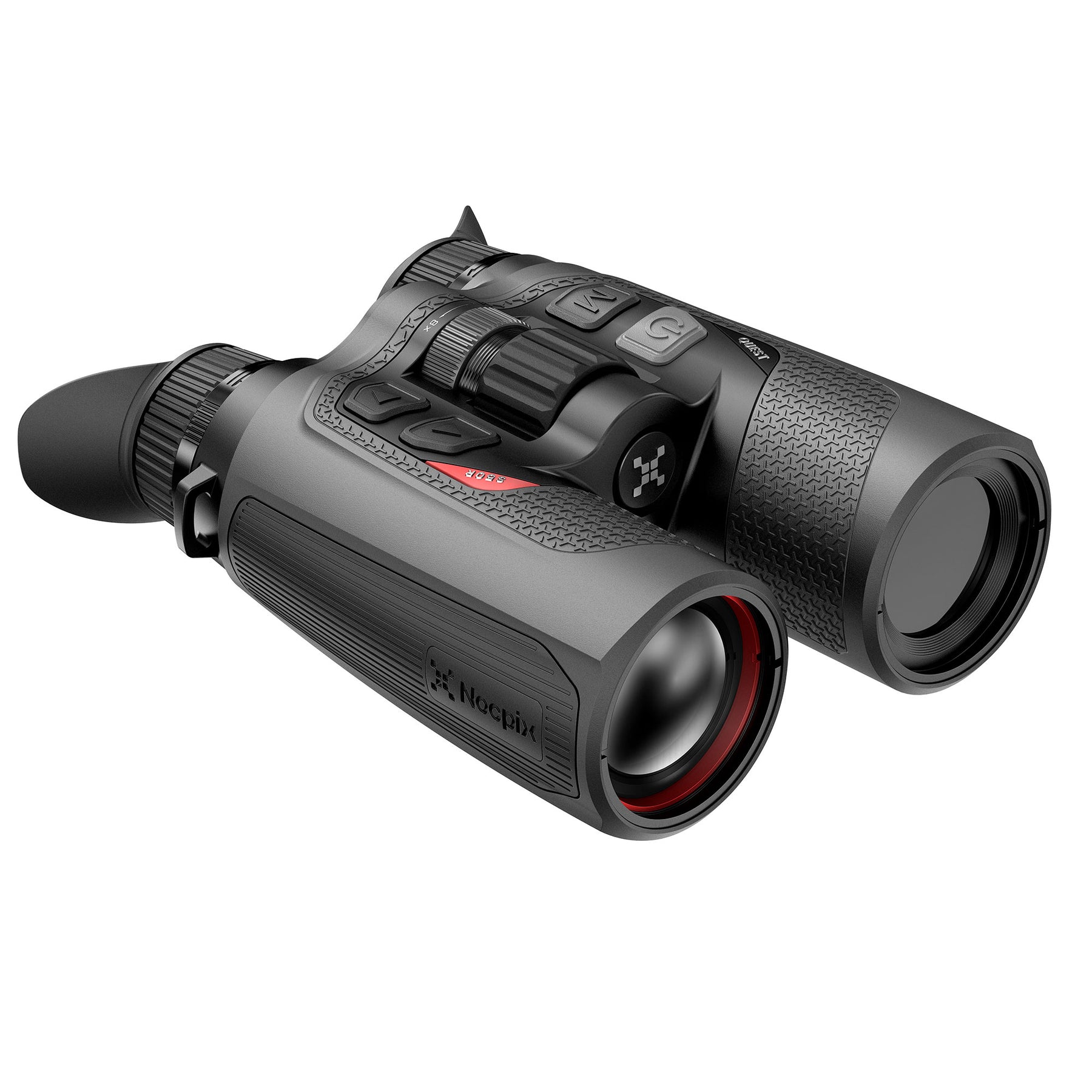

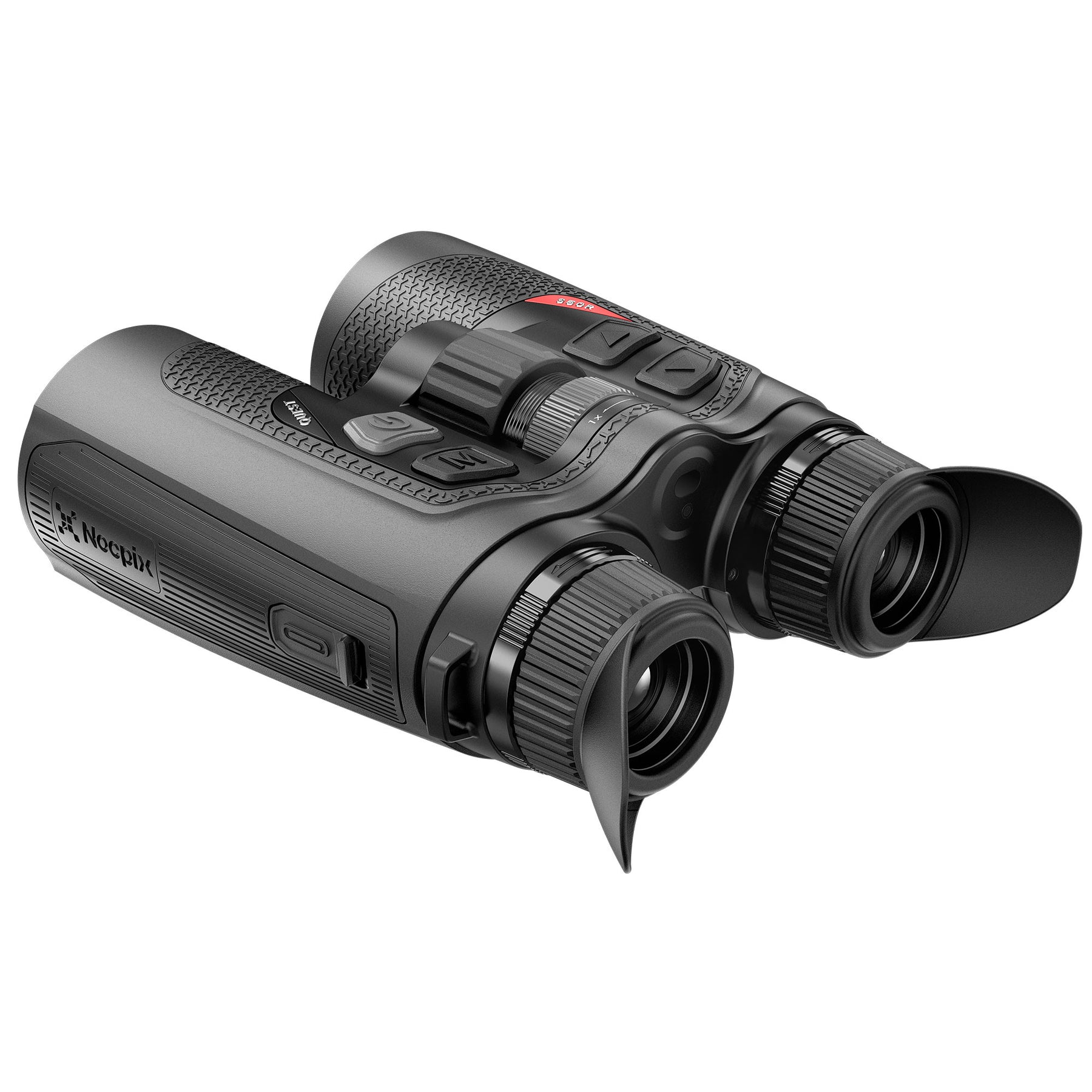

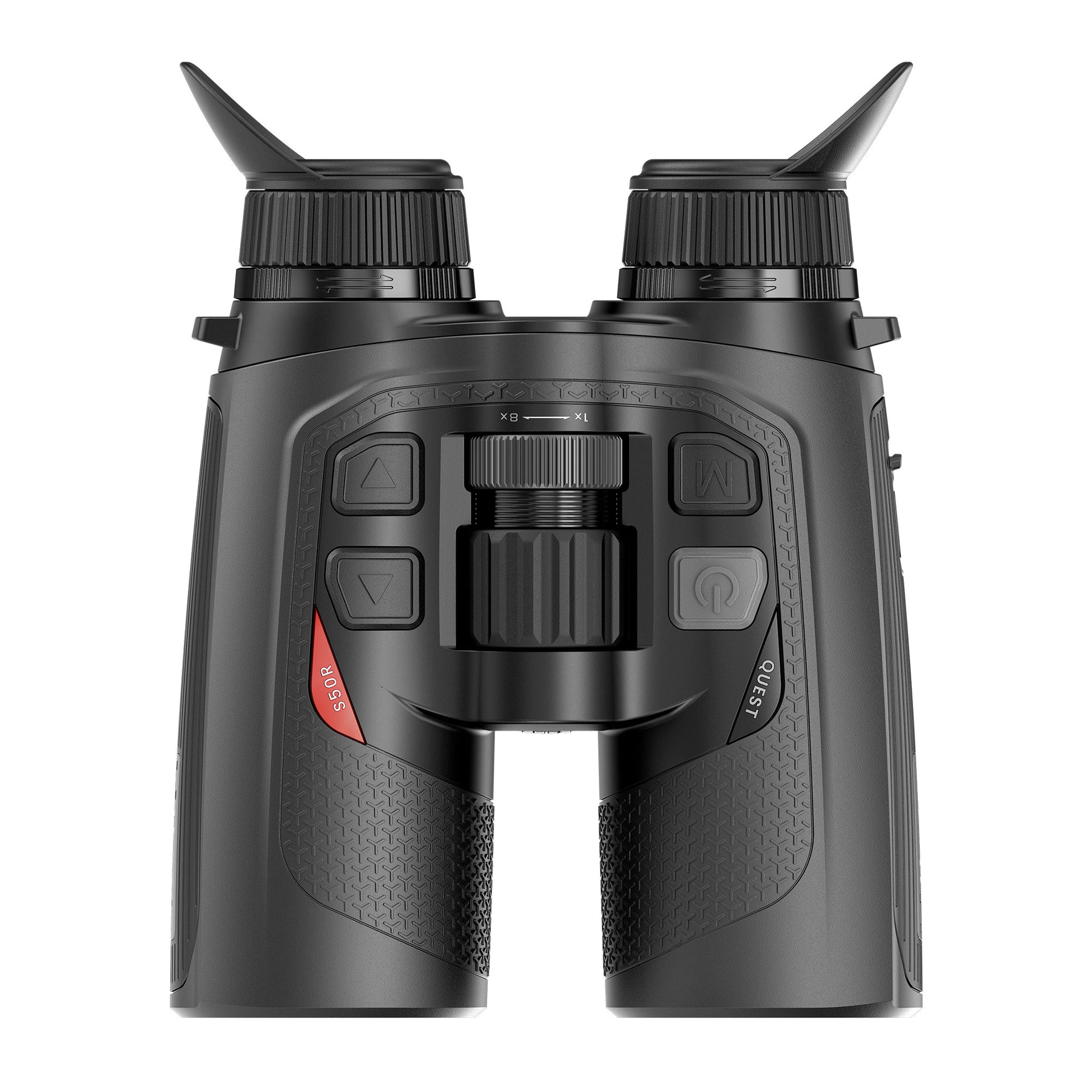

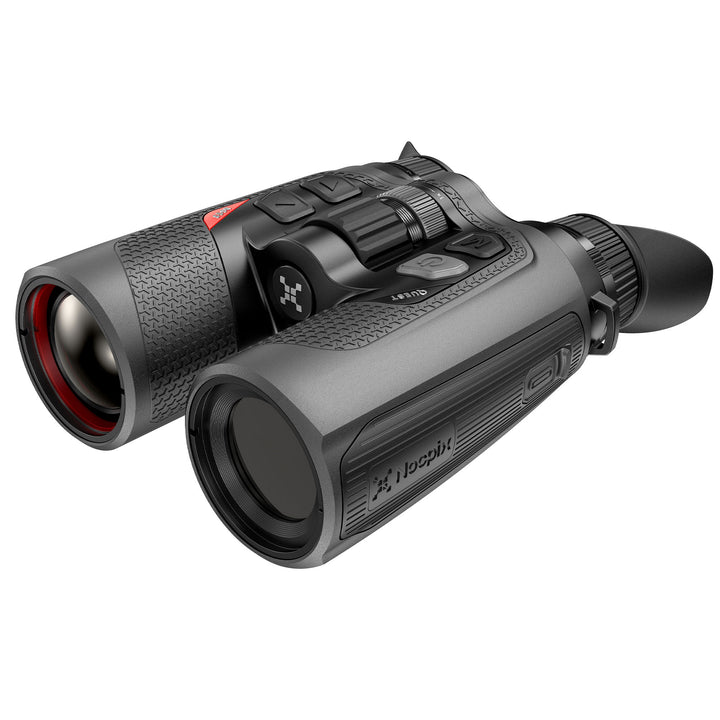

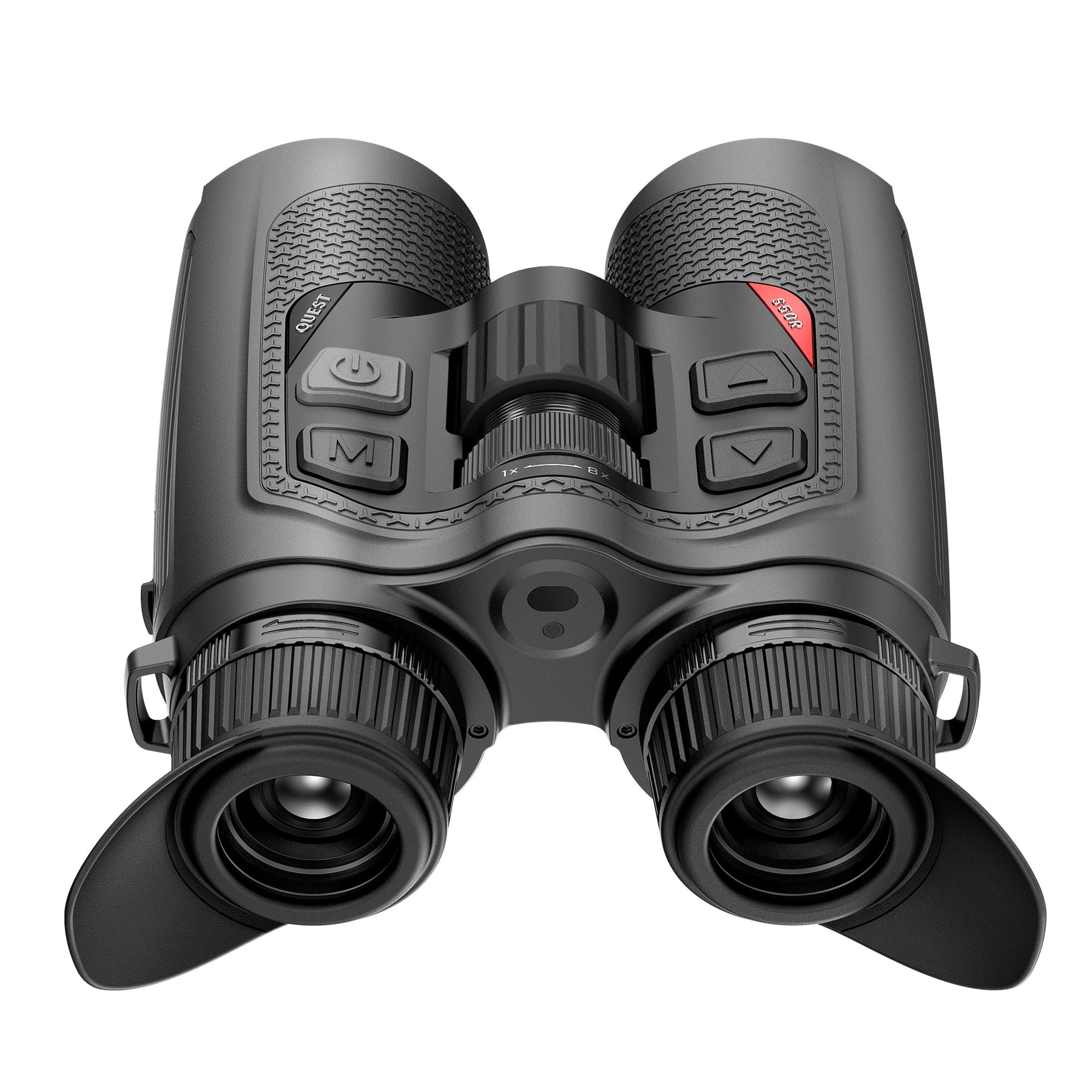

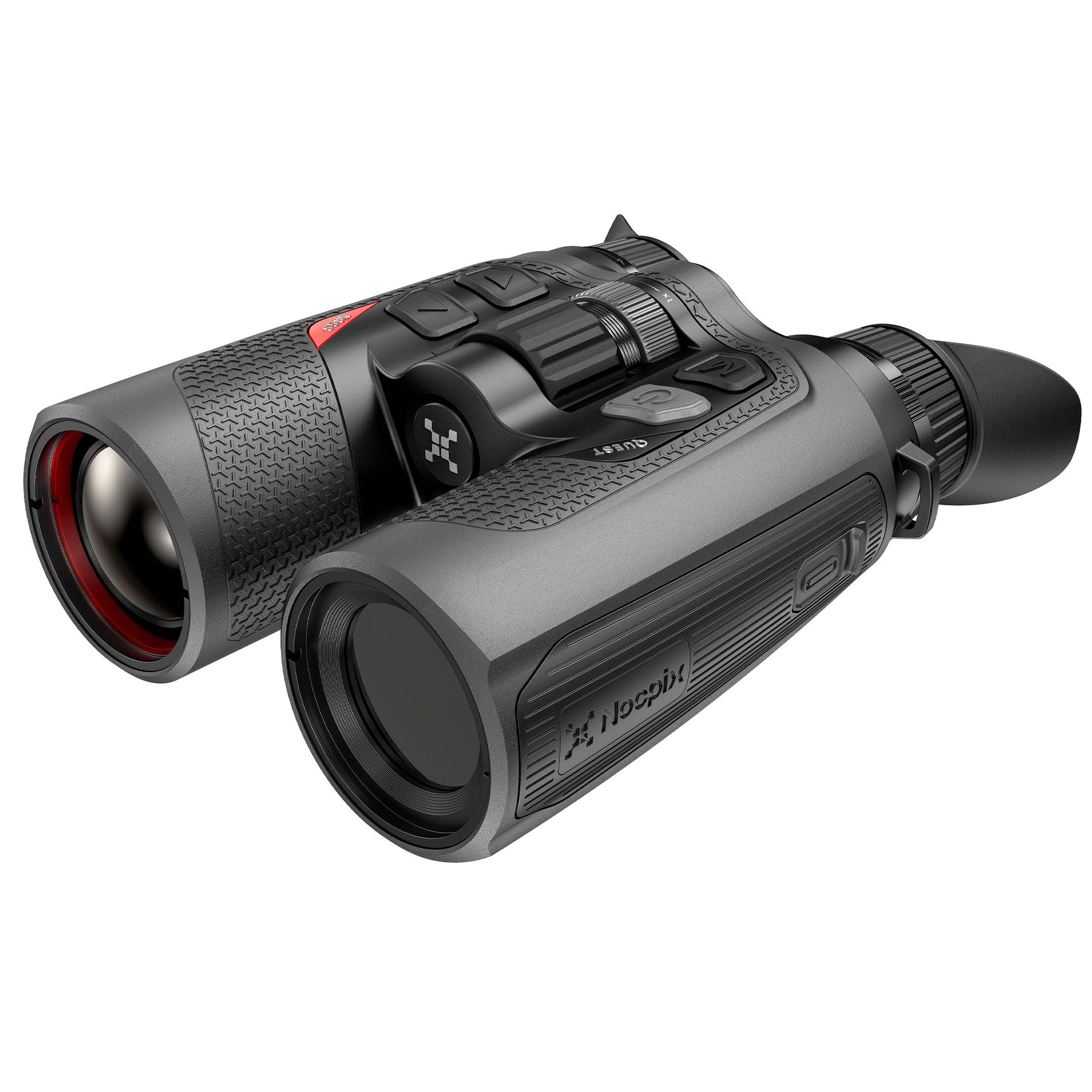

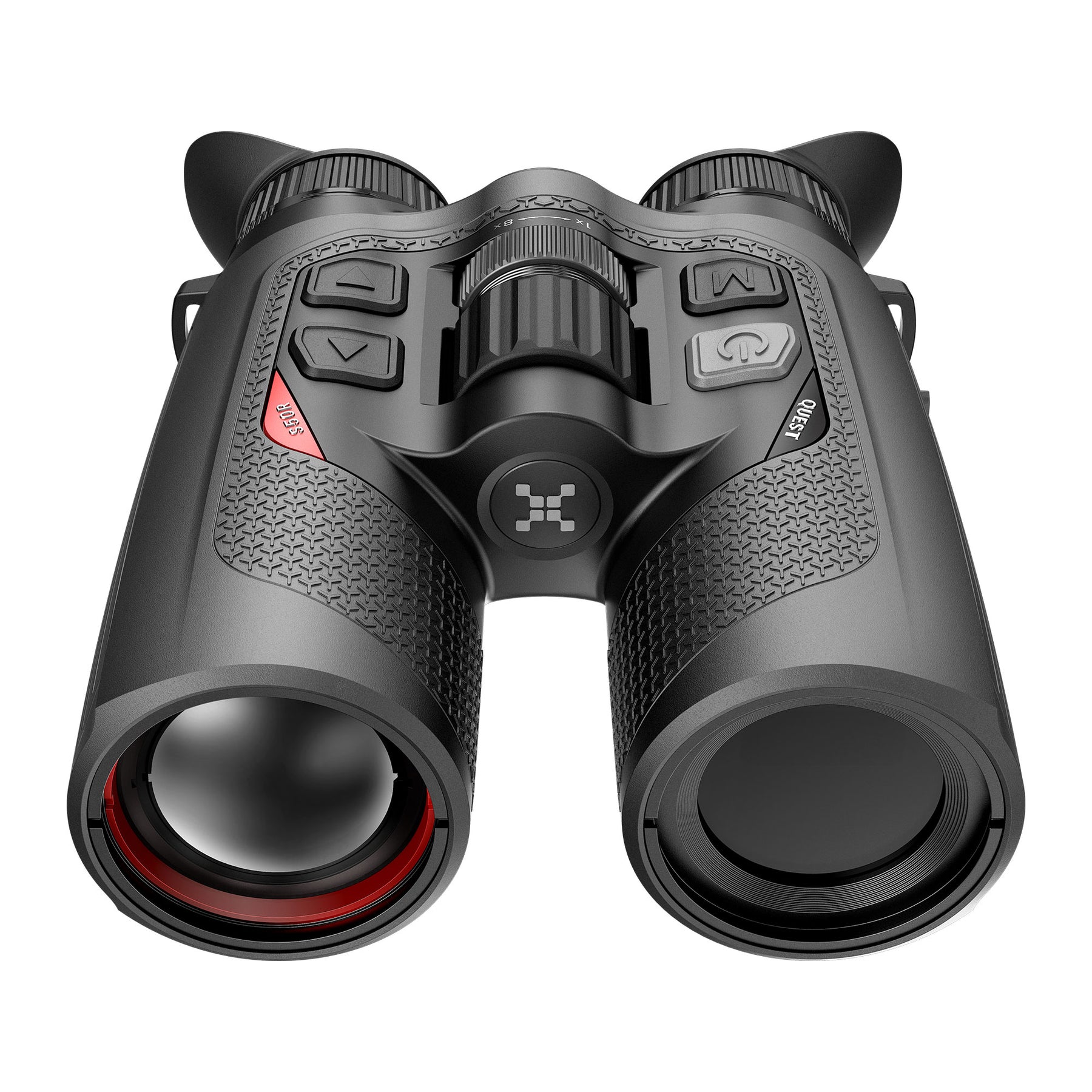

NocPix QUEST S50R Thermal Imaging Binoculars with LRF

The QUEST S50R is the model to choose if maximum image quality and field of view are the priorities.

Its 1280×1024 detector gives it four times the pixel count of the 640×512 H35R and H50R. That additional resolution is especially valuable when viewing fine thermal detail, separating animals from complex backgrounds or applying digital magnification.

It is also unusual because the 50mm lens is paired with only 2× base magnification, producing a huge 30 × 24m field of view at 100m. That is twice the width and height of the H50R while retaining the same approximate 2,600m detection range.

Choose the S50R if you want: flagship thermal resolution, exceptionally wide-area scanning, premium image quality, 2,600m detection and integrated LRF in one binocular platform.

L35R: The entry model, using a 384×288 sensor and 35mm lens with approximately 1,800m detection.

H35R: The versatile 640×512 option, keeping the 35mm lens while delivering much greater resolution and a wide 22 × 18m field of view.

H50R: Uses the same 640×512 detector as the H35R but moves to a 50mm lens, increasing detection range to approximately 2,600m and placing greater emphasis on distance.

S50R: The flagship. Its 1280×1024 sensor, 2× base magnification and 30 × 24m field of view combine maximum detail with exceptionally wide scanning coverage.

This is the key comparison in the QUEST range because the S50R and H50R both use a 50mm F1.1 objective lens and both offer approximately 2,600m manufacturer-stated detection range.

The major difference is sensor resolution. The H50R uses a 640×512 detector with 327,680 thermal pixels, while the S50R uses a 1280×1024 detector with 1,310,720 thermal pixels.

That means the S50R contains four times as many thermal pixels.

This also allows the S50R to start at just 2× magnification and provide an enormous 30 × 24m field of view at 100m. The H50R starts at 4× and provides 15 × 12m.

Choose H50R if you want strong 640×512 long-range performance at a lower price. Choose S50R if you want maximum image detail and dramatically wider viewing without sacrificing stated detection range.

The H35R is already an excellent wide-view binocular, but the S50R moves into a different performance class.

Sensor resolution increases from 640×512 to 1280×1024, objective lens size increases from 35mm to 50mm and manufacturer-stated detection range increases from approximately 1,800m to 2,600m.

Despite the larger lens, the S50R actually provides a wider field of view: 30 × 24m at 100m compared with 22 × 18m from the H35R. It also starts at only 2× rather than 3×.

Choose H35R if 640×512 resolution gives you everything you need and value matters. Choose S50R if you want both greater distance capability and the widest field of view in the QUEST range.

The S50R's 1280×1024 sensor contains 1,310,720 thermal pixels. A 640×512 detector contains 327,680.

This gives the S50R exactly four times the thermal pixel count of the H35R and H50R.

More detector resolution provides finer image detail and leaves considerably more information available when digital magnification is used. It can also make it easier to distinguish separate heat sources and pick out subtle detail against complex backgrounds.

This higher native resolution is one of the main reasons the S50R can combine a large 50mm objective with such a low 2× base magnification and very wide field of view.

The S50R provides an exceptionally wide 30 × 24m field of view at 100m despite using the same 50mm focal length as the H50R.

The reason is the much larger 1280×1024 detector. It captures a substantially wider section of the image produced by the objective lens than the smaller 640×512 detector in the H50R.

As a result, the S50R can start at just 2× magnification instead of 4×. This is especially valuable when scanning large areas because considerably more of the landscape remains visible at once.

The main advantage of the QUEST format is comfortable two-eye viewing. This can be especially useful when scanning for long periods because the viewing experience feels more natural than continuously relying on one eye.

The S50R also uses dual high-resolution AMOLED displays, giving each eye a clear viewing image while the binocular body provides a stable two-handed grip.

A monocular remains useful where minimum size and weight are priorities. QUEST binoculars make more sense where viewing comfort, stability and prolonged observation matter more.

R+ image processing is NocPix's image-processing technology designed to optimise thermal detail, contrast and overall image presentation.

Electronic Image Stabilisation (EIS) helps reduce visible image movement during handheld observation, producing a steadier thermal image.

On a high-resolution device such as the S50R, image stabilisation can be particularly useful when inspecting fine detail or using increased digital magnification.

The QUEST S50R includes a concealed laser rangefinder with a manufacturer-specified maximum range of up to 1,000 metres.

The LRF is incorporated into the binocular body, allowing distance measurement without carrying a separate handheld rangefinder.

NocPix specifies a detection range of approximately 2,600 metres for the QUEST S50R under its stated test conditions.

Detection range is not the same as identification range. At very long distances, the thermal device may show that a heat source is present without giving enough image detail to determine exactly what it is.

The S50R's 1280×1024 detector is especially useful after detection because the greater sensor resolution provides considerably more image information for closer examination.

Actual useful viewing distance varies according to target size, temperature contrast, weather and environmental conditions.

The NocPix QUEST S50R is supplied with NocPix manufacturer warranty cover.

NocPix's standard warranty provides:

• 3 years warranty on the main device
• 2 years warranty on the battery
• 10 years warranty on the thermal detector

For products purchased through a NocPix certified distributor or dealer, the warranty period begins from the purchase date shown on the invoice.

For NocPix products purchased from Bamfords Online, Bamfords is your point of contact for warranty support. If you experience a problem, contact us with proof of purchase and details of the issue and we will assist with the warranty process.

Warranty cover remains subject to NocPix's current manufacturer warranty terms and conditions.

What sensor does the QUEST S50R use?
It uses a second-generation 1280×1024, 12μm thermal sensor with ≤15mK thermal sensitivity and a 60Hz refresh rate.

How far can the QUEST S50R detect?
NocPix specifies a detection range of approximately 2,600m under its stated test conditions.

Does the QUEST S50R have an LRF?
Yes. It includes an integrated concealed laser rangefinder with a maximum specified ranging distance of up to 1,000m.

What is the field of view of the S50R?
Approximately 30 × 24 metres at 100 metres, the widest field of view in the QUEST range.

What is the difference between S50R and H50R?
Both use 50mm F1.1 lenses and have approximately 2,600m detection range. The S50R increases sensor resolution from 640×512 to 1280×1024, starts at 2× instead of 4× and provides double the horizontal and vertical field of view.

How much more resolution does S50R have than H50R?
The 1280×1024 sensor contains four times as many thermal pixels as a 640×512 detector.

Is the S50R the best QUEST model?
It is the flagship model and offers the highest sensor resolution and widest field of view in the QUEST range. Whether it is the best choice depends on whether you need that level of image quality and are willing to pay for it.

Is the QUEST S50R waterproof?
The QUEST range carries an IP67 protection rating.

How long is the NocPix warranty?
NocPix's standard warranty provides 3 years on the main device, 2 years on the battery and 10 years on the thermal detector, subject to manufacturer terms.

The NocPix QUEST S50R uses a dual-battery system, combining a built-in rechargeable battery with a removable 18650 rechargeable battery.

The external 18650 can be replaced in the field without interrupting use, making it easy to extend operating time during longer sessions. NocPix states approximately 6 hours of operating time under normal use, although actual runtime will vary depending on temperature and use of features such as the laser rangefinder, Wi-Fi and recording.

Two 18650 rechargeable batteries are supplied, giving you a spare external battery ready to swap when required.

• NocPix QUEST S50R Thermal Imaging Binoculars with LRF
• 2 × 18650 rechargeable batteries
• Battery charging kit
• USB-C charging/data cable
• Neck strap
• Lens cleaning cloth
• Quick-start guide
• Protective carry bag
