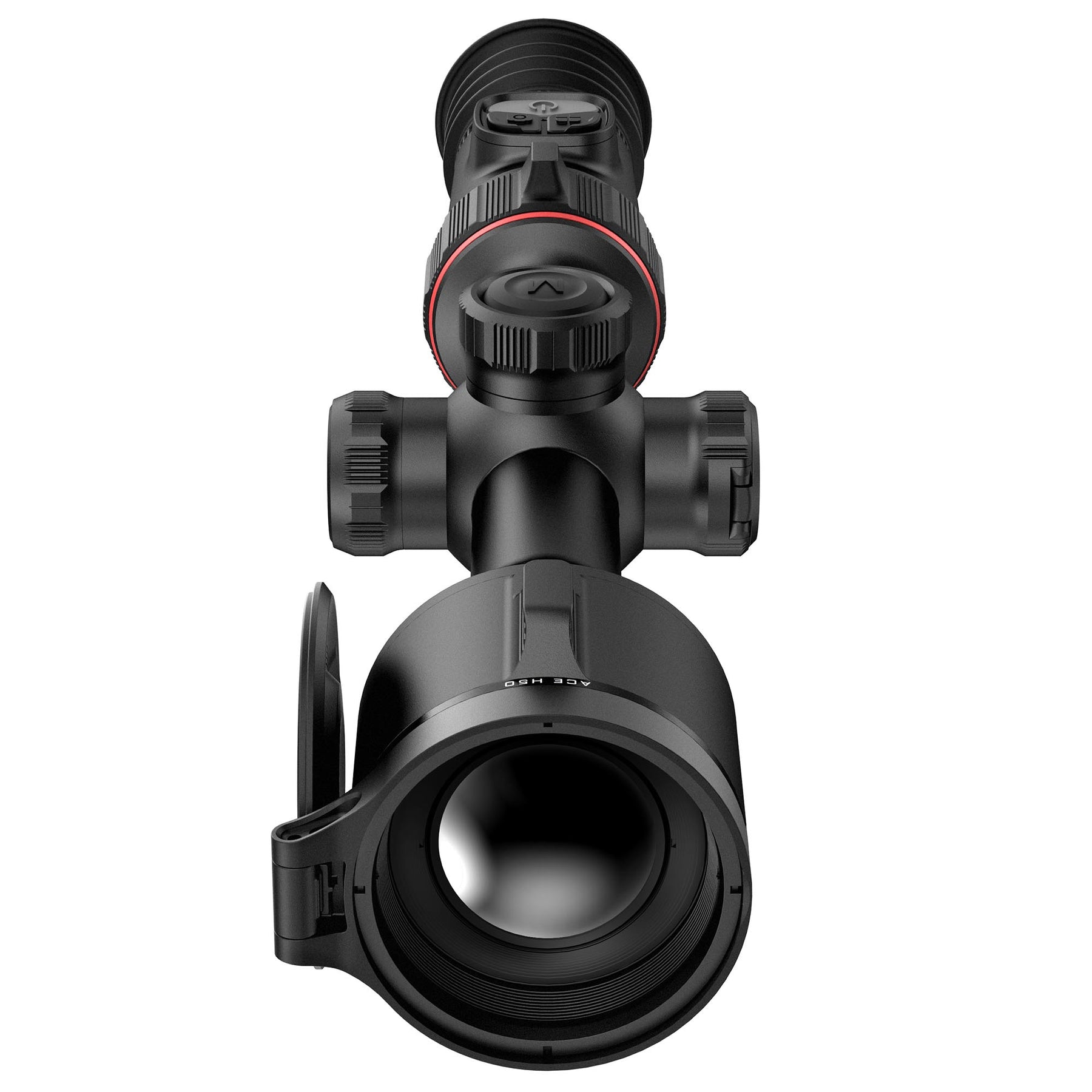

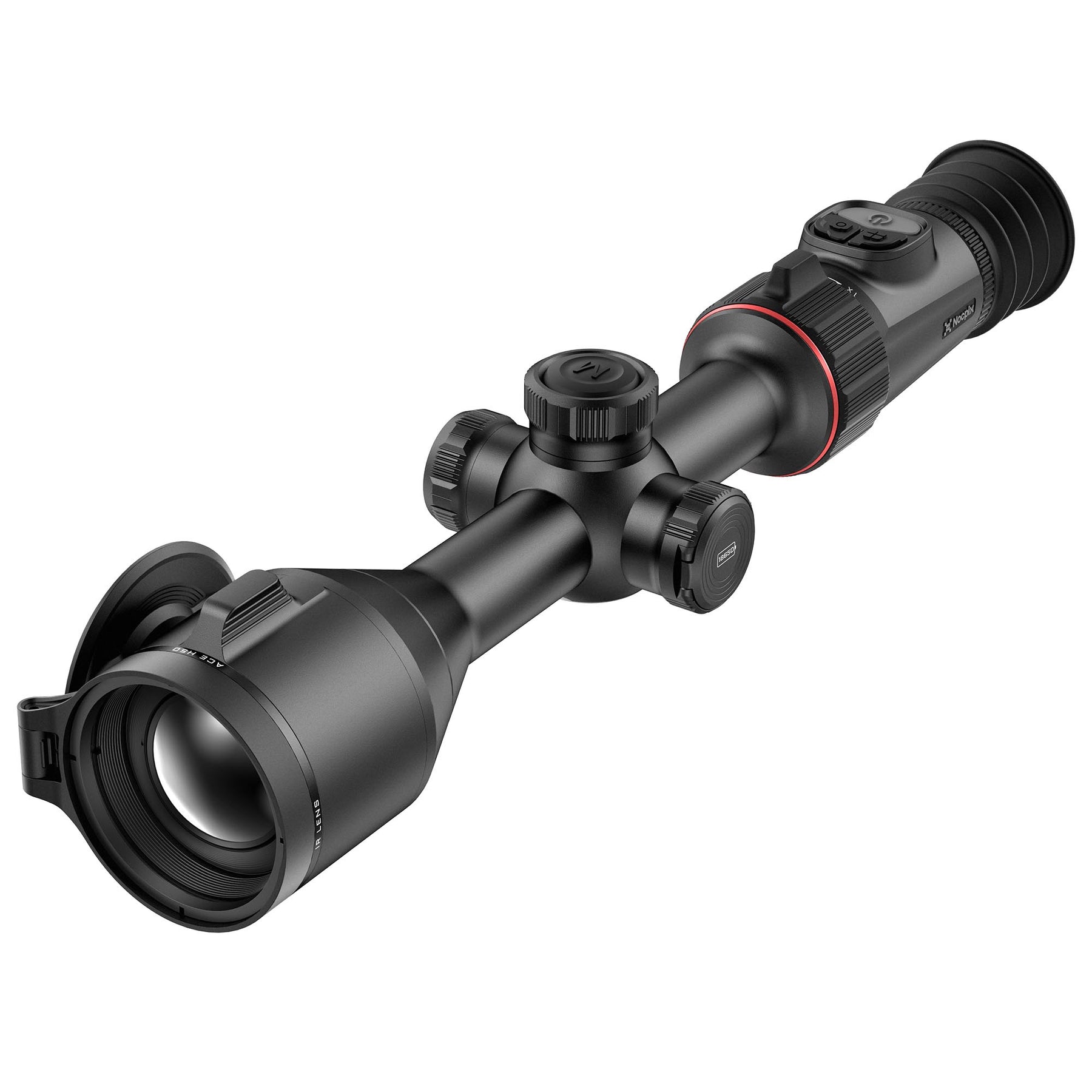

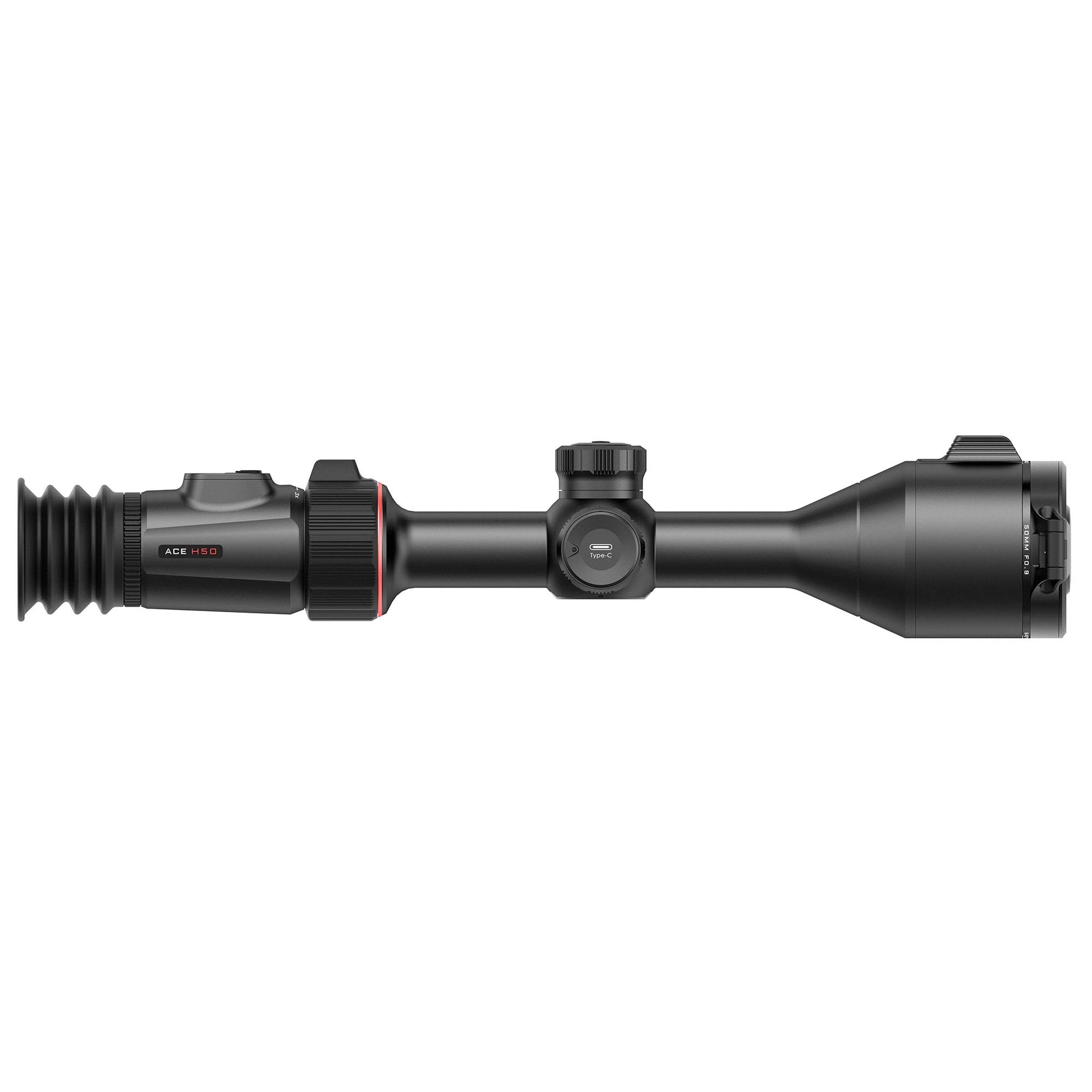

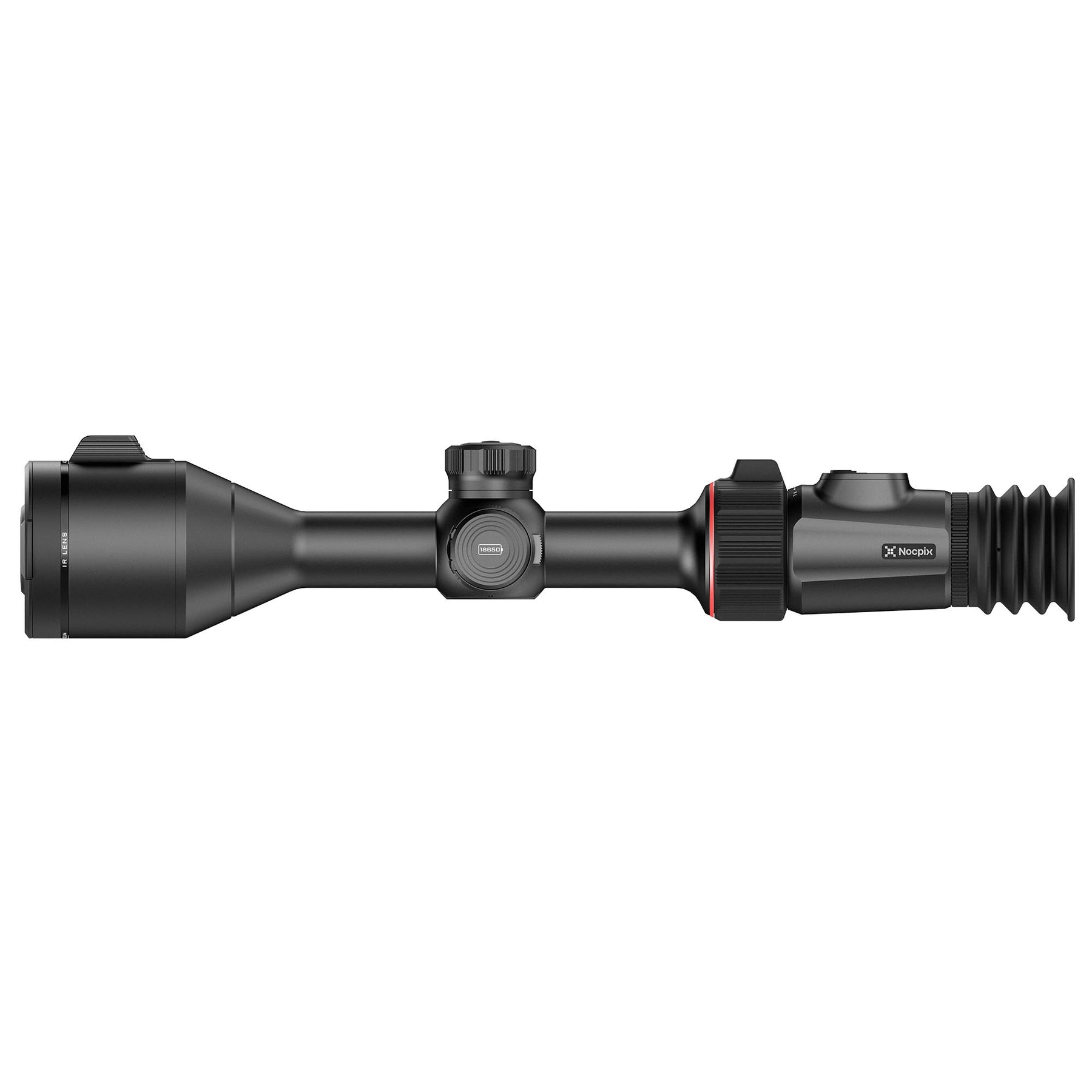

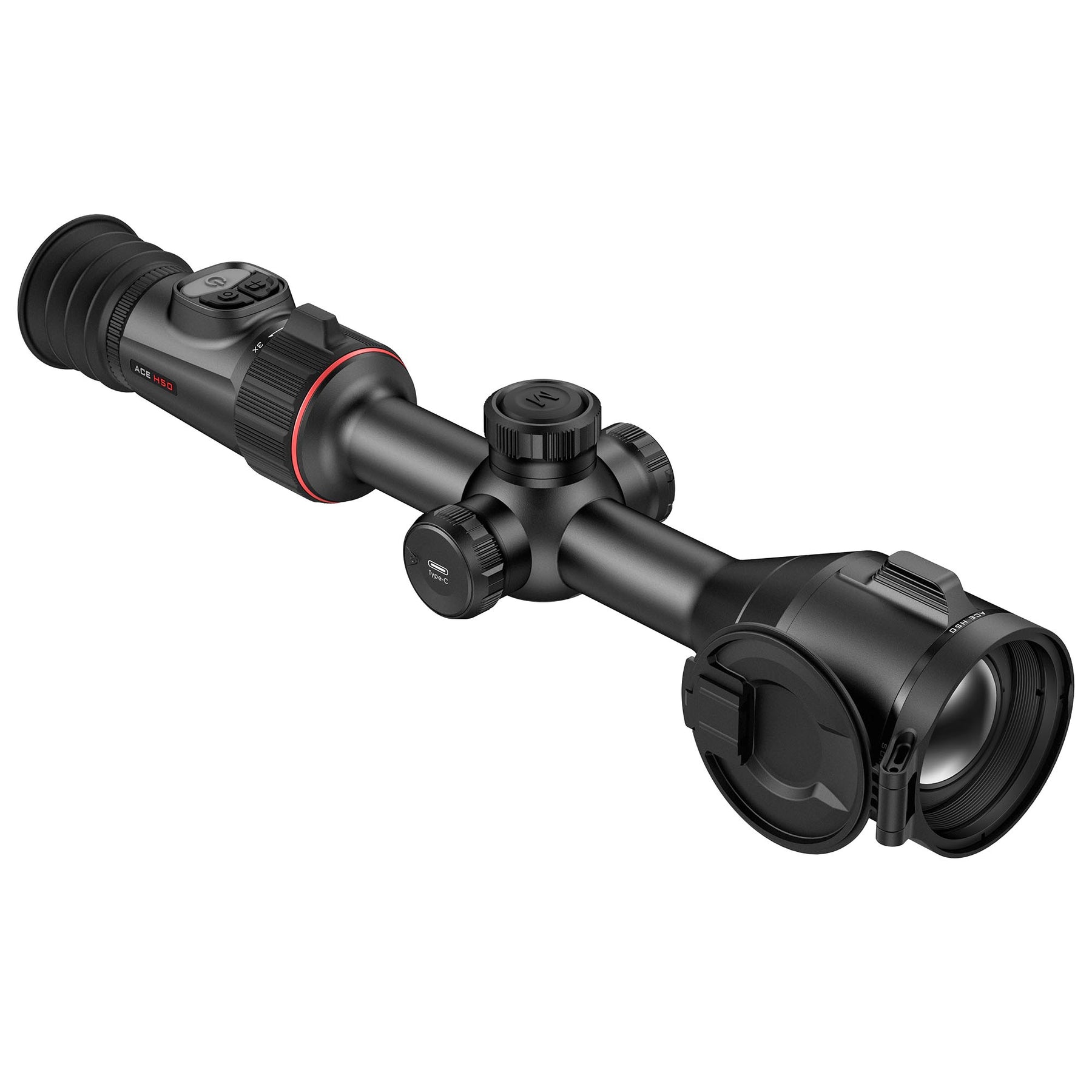

NocPix ACE H50 Thermal Imaging Scope

The NocPix ACE H50 Thermal Imaging Scope is a premium, tube-style thermal riflescope engineered for precision shooting and reliable performance in all lighting and weather conditions. Designed as part of the flagship ACE series, it combines advanced thermal imaging technology with practical, field-ready features to deliver a versatile solution for hunting, pest control, and professional use.

At its core is a 640×512, 12μm thermal sensor with ≤15mK sensitivity, providing detailed, high-contrast imagery and enabling detection of subtle heat differences even in challenging environments such as fog, rain, or dense vegetation. Paired with a 50mm F0.9 objective lens, the ACE H50 captures more thermal energy, resulting in brighter images and improved long-range detection capability.

The scope features a 3× base magnification with digital zoom up to 24×, offering flexibility for both scanning and precise target identification at distance. A 60Hz refresh rate ensures smooth, real-time imaging, which is particularly important when tracking moving targets.

A standout feature of the ACE series is the Vision+ system, delivering a 2560×2560 AMOLED display for a sharp, immersive viewing experience. Combined with Reality+ image processing algorithms, it enhances clarity, reduces noise, and maintains image quality across varying conditions.

Built with practical field use in mind, the ACE H50 includes features such as recoil-activated video recording, picture-in-picture (PIP) mode, onboard photo/video storage, and Wi-Fi connectivity. A dual power system, combining an internal battery with a replaceable 18650 cell, ensures extended operating time during long sessions outdoors.

Key Features

• 640×512 thermal sensor (12μm) for high-detail imaging
• ≤15mK NETD sensitivity for enhanced thermal contrast
• 50mm F0.9 objective lens for improved brightness and range
• 3×–24× magnification for versatile targeting
• Vision+ AMOLED display (2560×2560) for immersive viewing
• 60Hz refresh rate for smooth, real-time imaging
• Reality+ image processing for improved clarity
• Recoil-activated recording & picture-in-picture mode
• Wi-Fi connectivity and onboard storage
• Dual battery system (internal + 18650) for extended runtime

Ideal Use Cases

• Night hunting and vermin control
• Medium- to long-range shooting
• Wildlife observation in low visibility
• Professional field and land management applications

The NocPix ACE H50 is a powerful and well-rounded thermal riflescope, offering excellent image quality, modern features, and dependable performance. It’s particularly well suited to users who want a dedicated thermal scope with strong detection capability and a familiar riflescope form factor, without stepping into the higher cost of rangefinding models.

Spec

• 15mK NETD
• Tube Diameter: 30mm
• Mounting: Compatible with standard 30mm scope rings
• Ocular zoom
• Recoil Activated Video function
• Gallery function
• Dual power supply system
• Built-in memory, supporting photographing, video recording
• Built-in Wi-Fi module, supporting APP connection
• Built-in compass and motion sensor
• PIP (picture-in-picture) function
• Pixel defect correction
• Convenient operation interface

What's Included

• ACE Series Thermal Imaging Scope
• Heated target for zeroing
• Lens cloth
• 2 x 18650 battery
• Type-C cable
• Quick start guide
• Battery charger
• Portable bag
