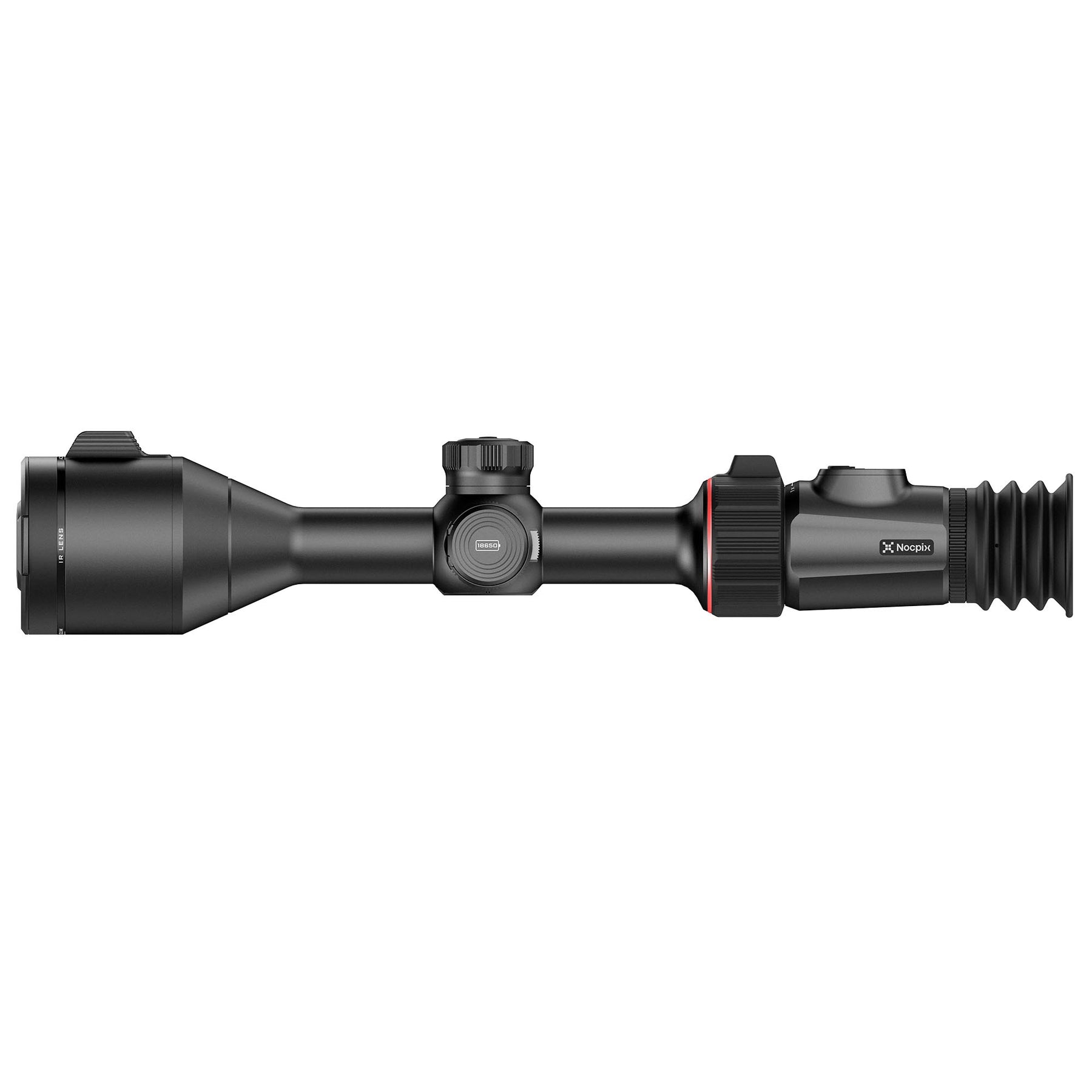

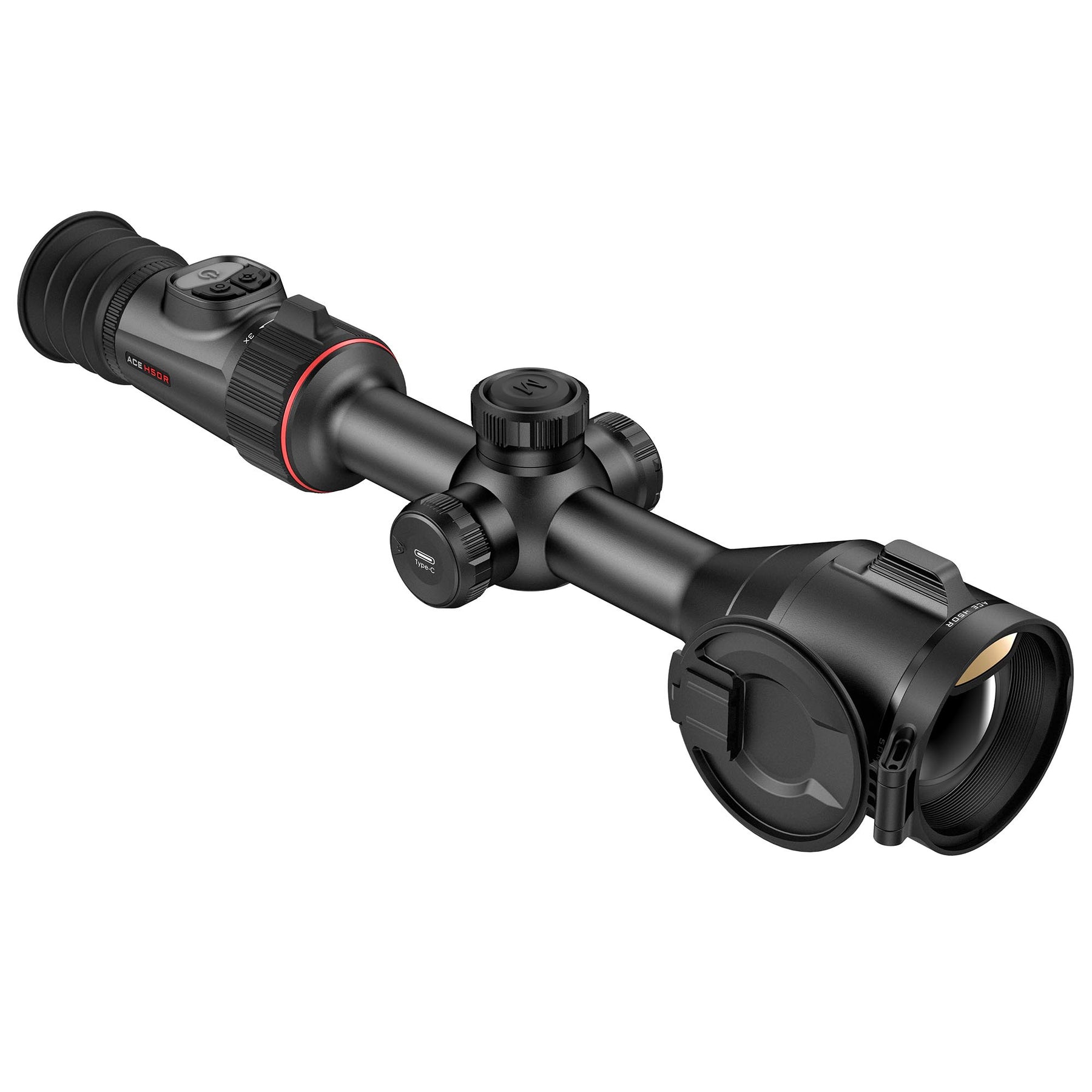

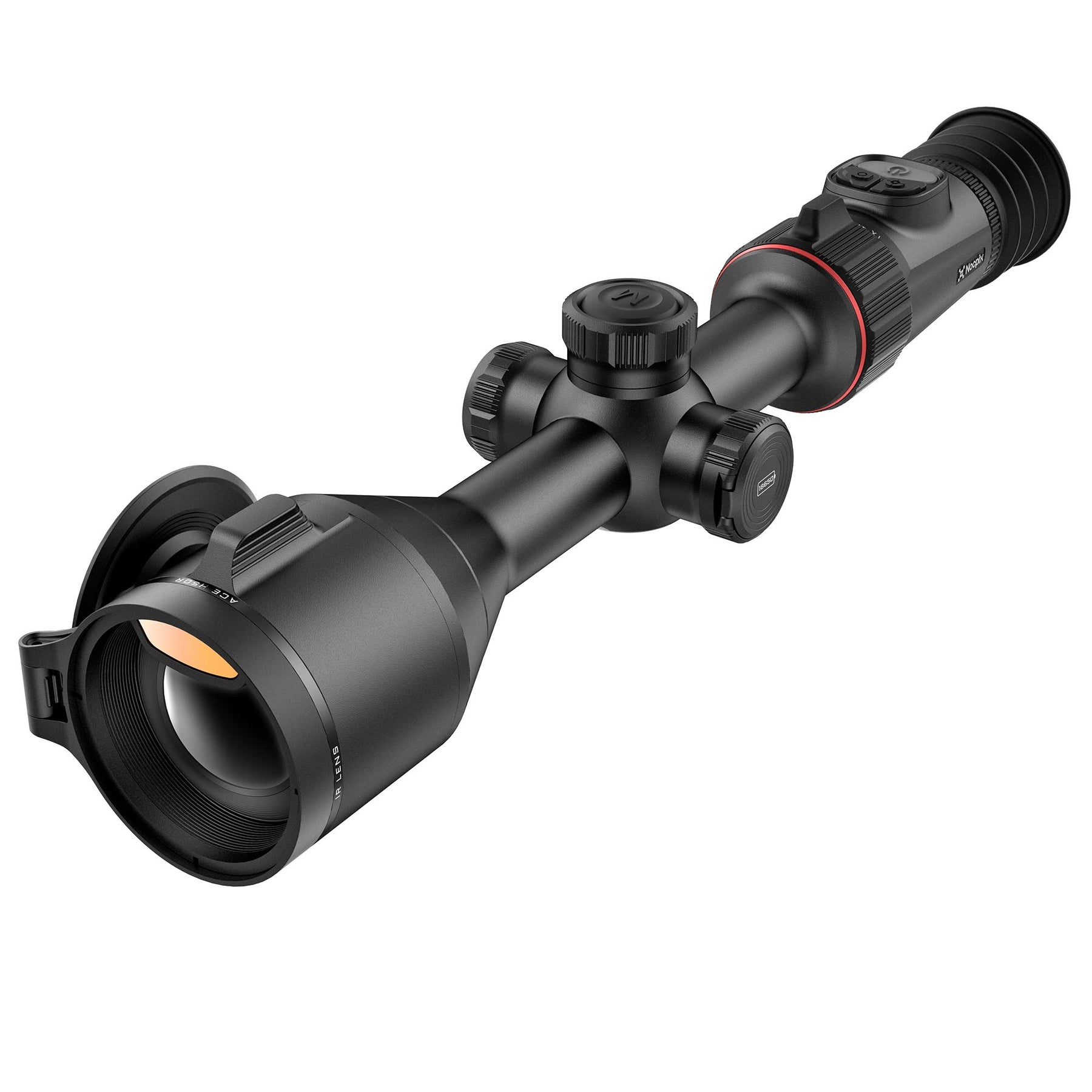

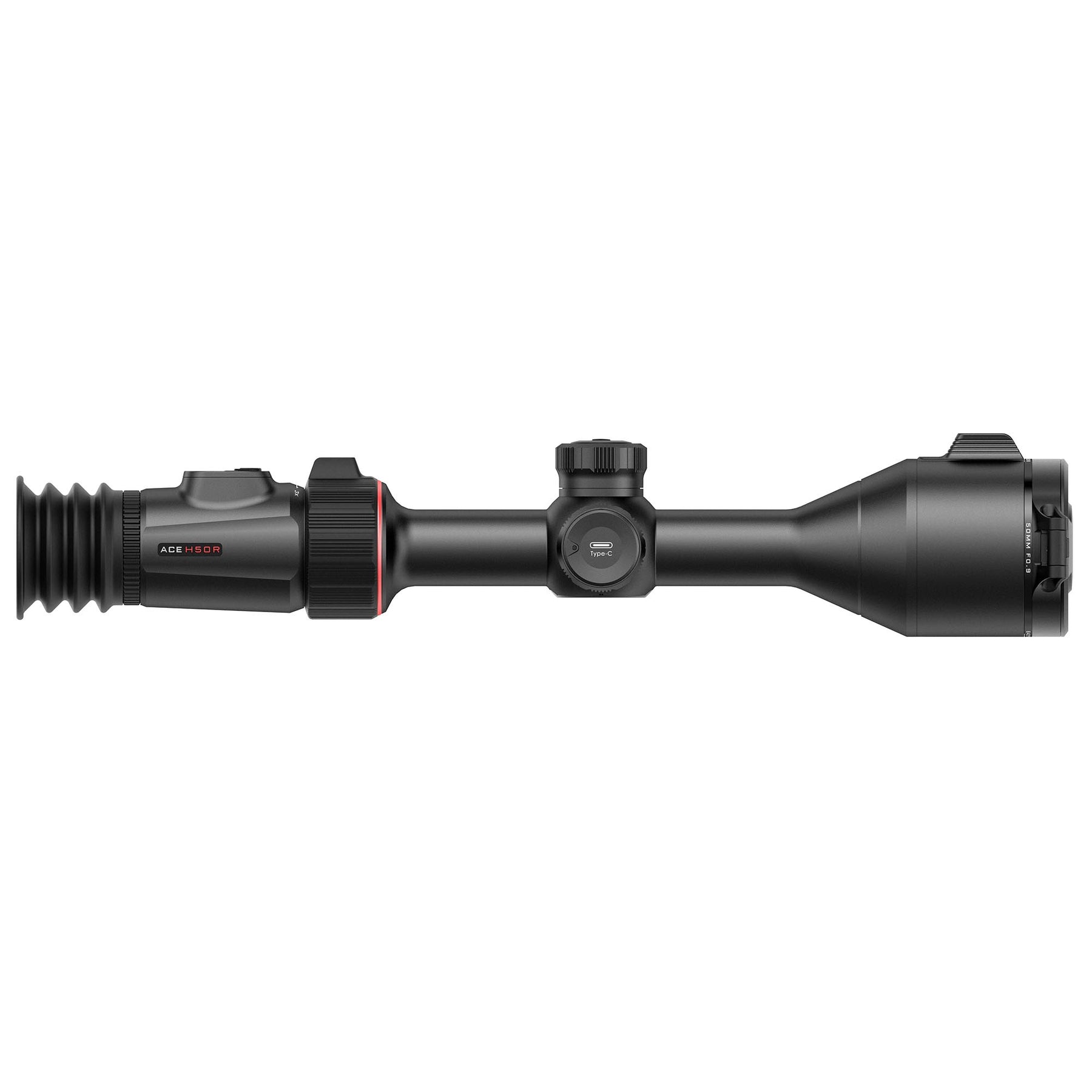

NocPix ACE H50R Thermal Imaging Scope with LRF

The NocPix ACE H50R uses a conventional 30mm main tube, allowing it to be fitted using suitable riflescope mounting rings.

Required scope ring diameter: 30mm.

Mounts must be selected to match both the scope tube and the rifle's rail or mounting system.

• For suitable Picatinny or Weaver rails, choose compatible 30mm rings.
• For suitable dovetail rails, choose 30mm rings with the correct dovetail fitting.
• Ring height must provide sufficient clearance for the objective housing and other rifle components.

The standard ACE H50R is a 30mm tube-mounted model. It must not be confused with the separate ACE H50R RM version, which uses a different rail-mount arrangement.

The manufacturer's standard accessory list does not include mounting rings. Where the Bamfords free Hawke Match Mounts offer applies, add suitable 30mm two-piece mounts to your basket and the promotional discount will be applied.

Contact Bamfords Online if you need help selecting the correct ring height or rail fitting.

The ACE H50R features a 640 × 512 VOx thermal imaging sensor with a 12μm pixel pitch.

Its ≤15mK NETD sensitivity enables the detector to distinguish very small temperature differences under specified test conditions.

This is particularly useful when thermal contrast is limited, such as during damp weather, in vegetation or when surrounding surfaces are close to the subject's temperature.

The 60Hz refresh rate provides smooth image updates during observation and movement.

The 50mm germanium objective uses a fast F0.9 aperture designed to collect thermal energy efficiently.

Combined with the 640 × 512 detector, it provides a balance of image detail, magnification and longer-range observation.

NocPix specifies a maximum detection distance of up to 2,600 metres under its reference test conditions.

Detection is not the same as positive identification. Recognition and identification distances depend on target size, thermal contrast, atmospheric conditions and magnification.

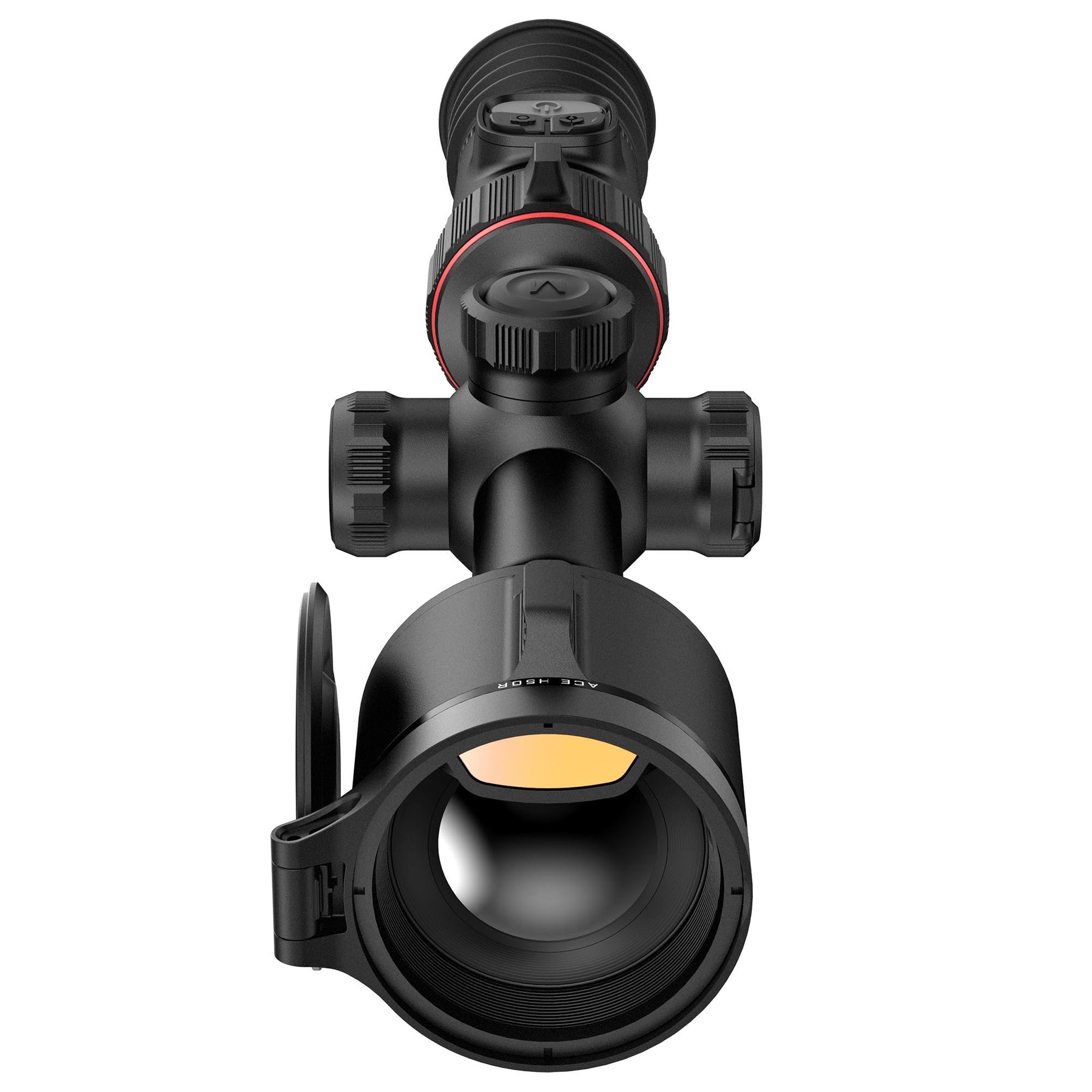

One of the defining features of the ACE H50R is its lens-integrated laser rangefinder.

Unlike external rangefinding modules, the H50R incorporates the LRF directly into the objective assembly, helping maintain the scope's streamlined appearance.

The Class 1 laser rangefinder has a manufacturer-stated measuring range of up to 1,200 metres with ±1 metre stated accuracy.

Actual ranging performance varies with target reflectivity, weather, angle and surrounding conditions.

The H50R provides distance measurement without requiring a separate handheld laser rangefinder.

The ACE H50R incorporates ballistic calculation functionality designed to work with its integrated laser rangefinder.

Users can configure supported ballistic information so the system can calculate an estimated ballistic correction using the measured target distance.

The feature is intended to assist with informed aiming adjustments, but it does not replace correct zeroing, reliable ammunition data or verification under controlled conditions.

The standard ACE H50 does not include the H50R's integrated rangefinding and ballistic functionality.

The ACE H50R provides a 3× base magnification with a total stated magnification range extending to 24×.

NocPix Vision+ incorporates a 1–3× adjustable ocular magnifier that changes the apparent size of the internal display image.

This works alongside the digital magnification system to provide a flexible viewing experience.

Higher magnification narrows the effective field of view and does not increase the native resolution of the thermal sensor.

The ACE H50R features a high-resolution 2560 × 2560 AMOLED display.

The circular viewing format is designed to resemble the viewing experience of a conventional riflescope.

Combined with the Vision+ ocular system, the display allows users to examine thermal detail with adjustable apparent image magnification.

The scope provides 50mm eye relief and an 8mm exit pupil.

NocPix Reality+ image processing works with the thermal detector to refine image presentation, contrast and visible scene detail.

The H50R provides selectable thermal colour palettes, allowing the user to choose a presentation appropriate to viewing conditions and personal preference.

Available image settings and enhancement functions can be adjusted through the scope's menu system.

Image performance will vary with temperature contrast, humidity, weather and distance.

The ACE H50R combines a built-in rechargeable 4,000mAh battery with a removable rechargeable 18650 battery.

NocPix specifies up to approximately seven hours of operating time under its test conditions at around 22°C.

The manufacturer's standard package includes two rechargeable 18650 batteries and a compatible charger, allowing a charged spare battery to be carried.

The removable battery can be replaced while the internal battery provides power, subject to the device's operating state.

Actual battery life varies with temperature, display brightness, Wi-Fi, recording and rangefinder usage.

The ACE H50R includes 64GB of internal storage for photographs and video recordings.

Recording functions include conventional video capture, audio recording through the built-in microphone and recoil-activated video recording.

Wi-Fi connectivity allows the scope to communicate with supported mobile devices through compatible NocPix software.

The USB Type-C connection supports charging and compatible data-transfer functions.

The ACE H50R features a rugged aluminium-alloy body with an IP67 ingress-protection rating.

It is specified to withstand recoil energy up to 6,000 joules and has a manufacturer-stated operating temperature range of -20°C to +50°C.

The housing is designed for demanding outdoor use, although correct installation and sensible care remain important.

The H50R and H50 use the same fundamental 640 × 512 thermal imaging platform. The main difference is the integrated laser rangefinder and ballistic functionality.

Choose the ACE H50R if you want integrated distance measurement and ballistic calculation.

Choose the standard ACE H50 if you prefer the same core thermal imaging performance without those additional features.

The ACE S60R is the higher-resolution model within the original ACE range, while the H50R provides a premium 640 × 512 alternative.

The S60R's 1280 × 1024 sensor offers substantially more native thermal pixels and is suited to customers prioritising the highest level of image detail.

The H50R remains a strong choice for users wanting a premium 640 × 512 scope with built-in ranging and ballistic functionality.

According to the NocPix ACE-series user manual, the standard manufacturer's package contains:

• 1 × NocPix ACE H50R thermal imaging riflescope with integrated LRF
• 2 × rechargeable 18650 batteries
• 1 × compatible 18650 battery charger
• 1 × USB Type-C cable
• 1 × heated target for zeroing
• 1 × lens cleaning cloth
• 1 × quick-start guide
• 1 × portable carrying bag

The scope also incorporates its own internal rechargeable battery.

Mounting rings: No mounting rings are listed in the manufacturer's standard package contents. The ACE H50R requires compatible 30mm rings.

Where the Bamfords free Hawke Match Mounts promotion applies, the appropriate mounts can be added separately to your basket.

The NocPix ACE H50R is covered by the manufacturer's published warranty terms.

• Main device: 3-year standard manufacturer warranty.
• Qualifying thermal detector: 10-year manufacturer warranty.
• Batteries: 2-year manufacturer warranty.
• Eligible product registration may extend the main device warranty to 4 years.

Warranty coverage is subject to the manufacturer's terms, registration requirements and exclusions.

If a fault develops with a product purchased from Bamfords Online, contact us first. We can assist with the appropriate supplier or manufacturer warranty process.

Your statutory consumer rights are unaffected.

What size scope rings does the ACE H50R need?

The ACE H50R uses a 30mm tube and requires suitable 30mm mounting rings. The correct rail fitting and mount height depend on your rifle.

Are scope rings included?

The manufacturer's standard package list does not include scope rings. Suitable 30mm Hawke Match Mounts are available through the Bamfords promotional offer where applicable.

Does the ACE H50R come with batteries?

Yes. Two rechargeable 18650 batteries and a charger are included, alongside the scope's built-in rechargeable battery.

Does it have an integrated laser rangefinder?

Yes. The H50R features a Class 1 laser rangefinder with a maximum stated measuring distance of 1,200 metres.

Does it have a ballistic calculator?

Yes. The built-in ballistic calculation system works alongside the integrated LRF and configured ballistic information.

How far can the H50R detect?

NocPix specifies a detection distance of up to 2,600 metres under its reference test conditions. Positive identification distances are shorter.

What is the difference between H50 and H50R?

The H50R adds an integrated laser rangefinder and ballistic calculation to the core thermal imaging platform shared with the H50.

Does it need infrared illumination?

No. The ACE H50R is a thermal imaging device that detects differences in heat and does not require an external IR torch.

What warranty is included?

NocPix's published standard warranty provides three years for the main device, ten years for qualifying thermal detector components and two years for batteries, subject to its terms. Eligible registration may extend main-device coverage to four years.
