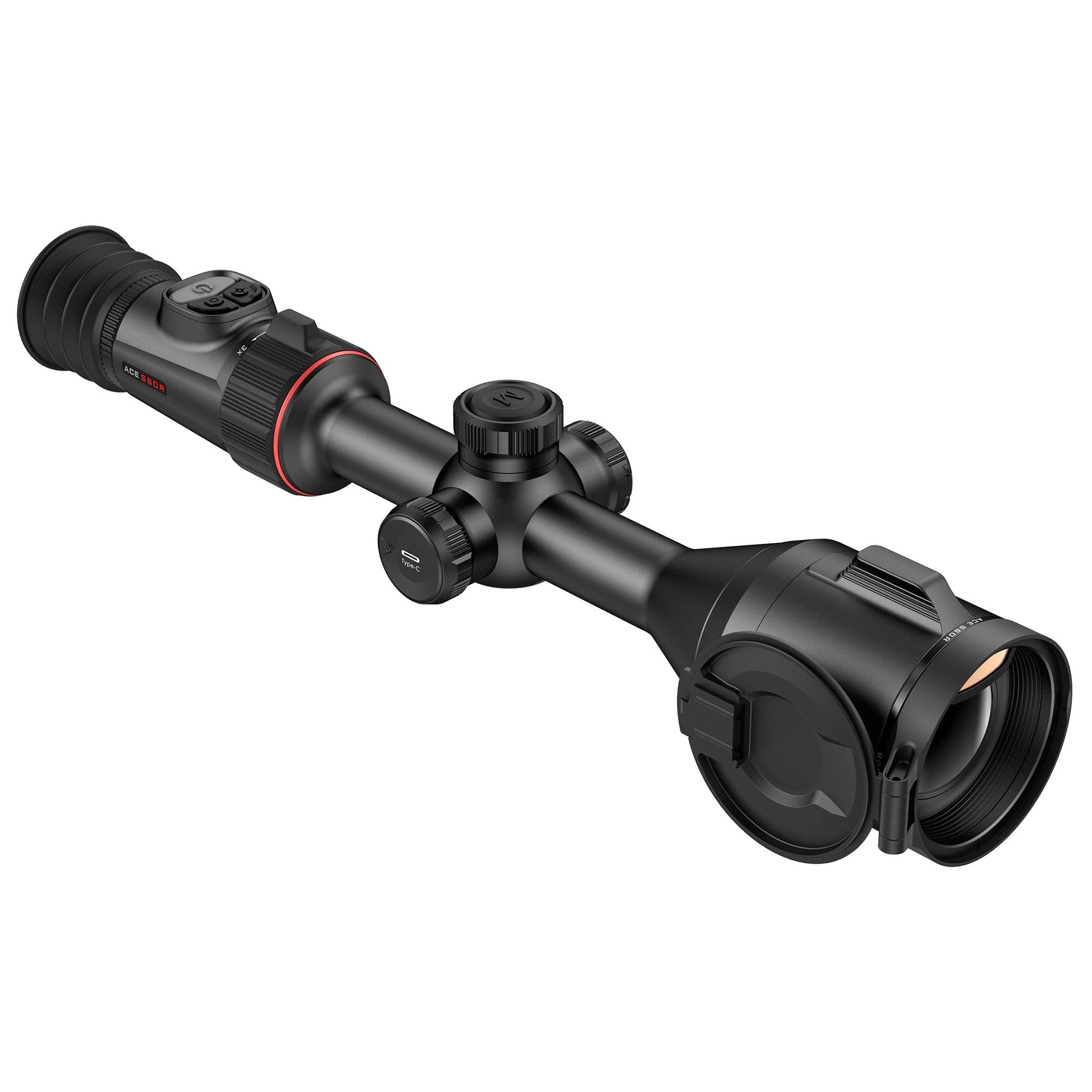

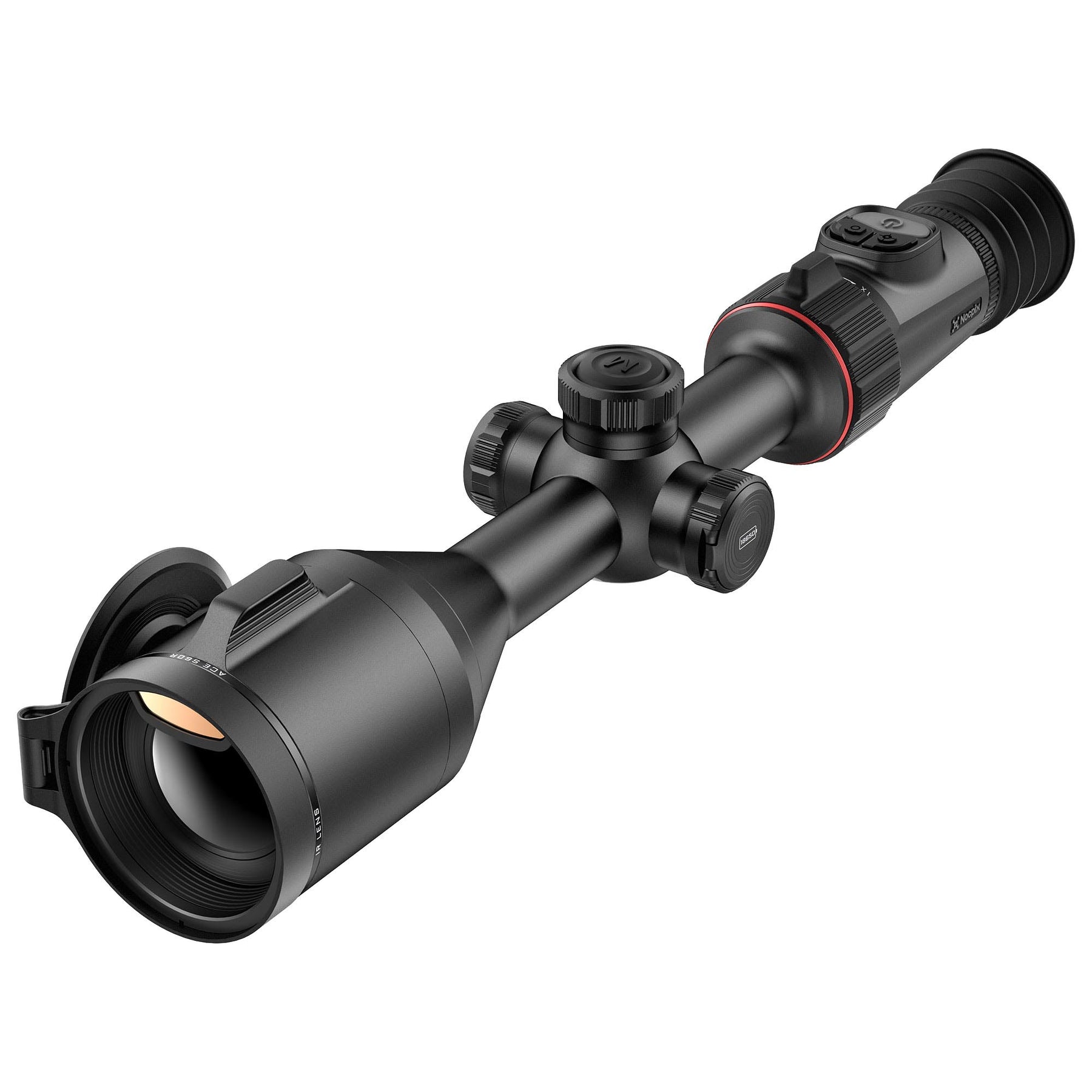

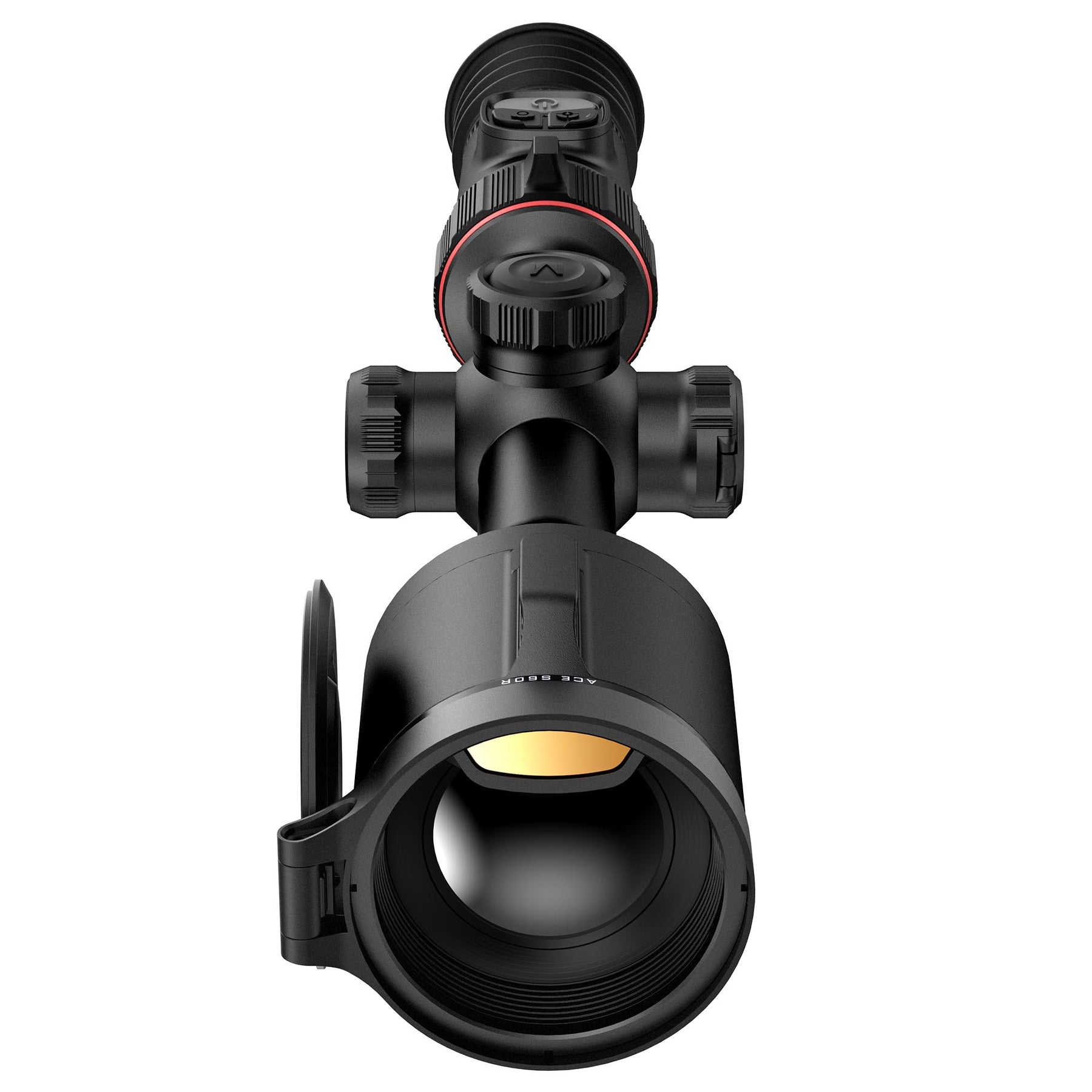

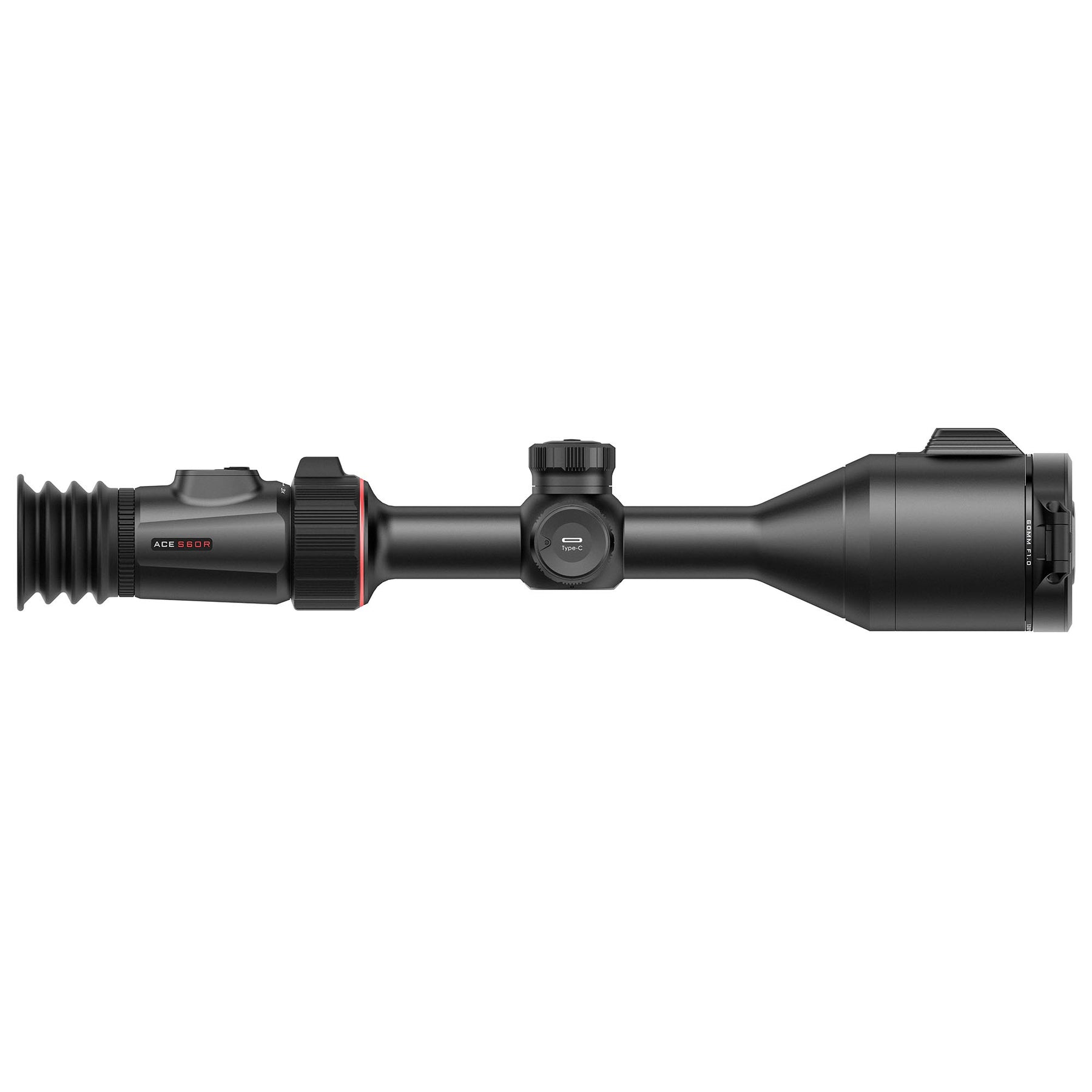

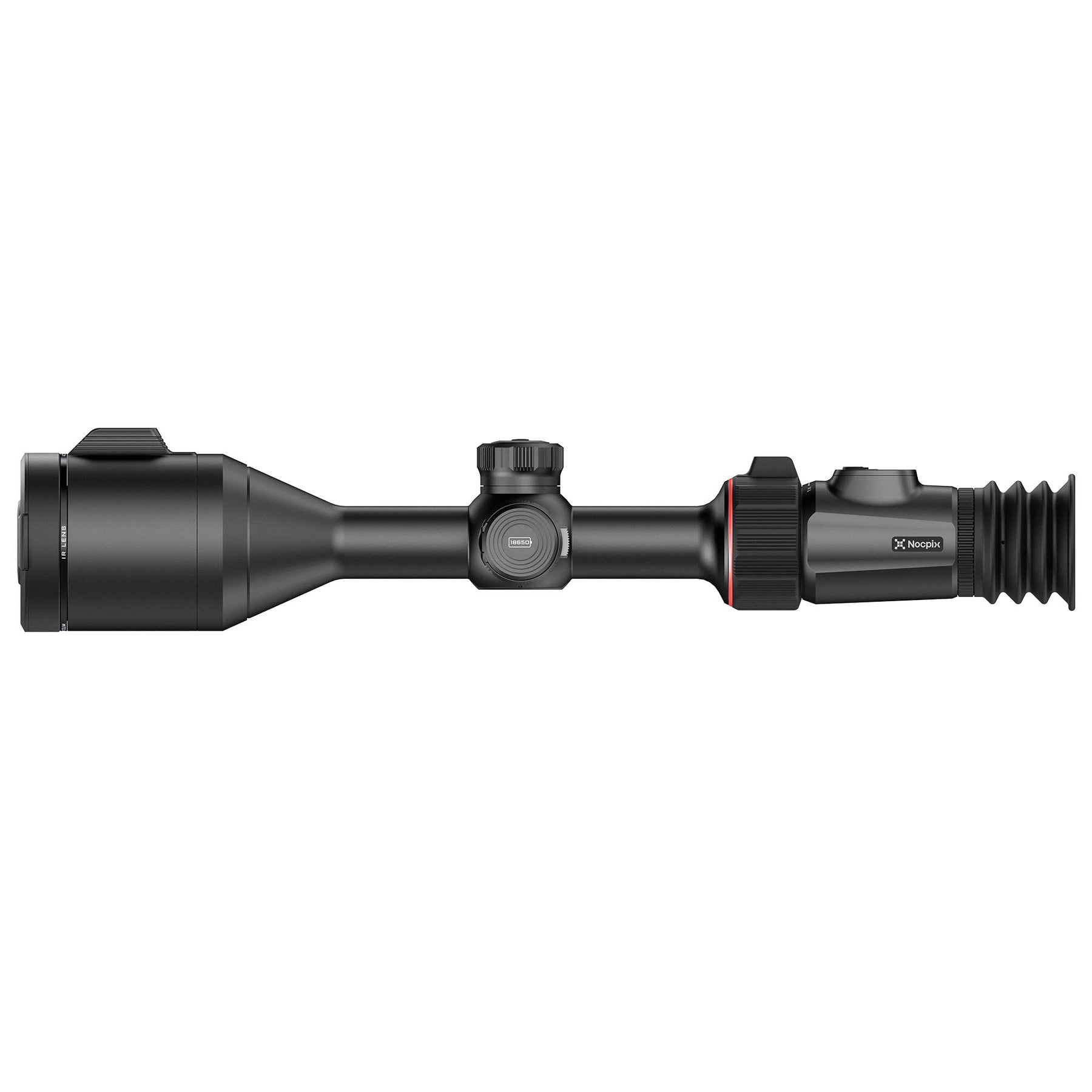

NocPix ACE S60R Thermal Imaging Scope

The NocPix ACE S60R Thermal Imaging Scope is the flagship model in the ACE series, designed for extreme long-range performance, maximum image detail, and precision shooting in all environmental conditions. Built for serious hunters and professional users, it combines ultra-high-resolution thermal imaging with advanced ranging, ballistic calculation, and an immersive display system.

At its core is a 1280×1024, 12μm thermal sensor with ≤15mK sensitivity, delivering exceptionally fine image detail and strong contrast even in difficult conditions such as fog, rain, and low thermal variation environments. Paired with a powerful 60mm F1.0 objective lens, the S60R achieves outstanding long-range detection capability, allowing clear identification of targets at extreme distances.

The scope offers 2×–24× magnification, giving users flexibility for both wide-area scanning and precise target identification at range. A high 50Hz refresh rate ensures smooth, real-time imaging for tracking moving targets with confidence.

A standout feature is the integrated laser rangefinder (up to ~1200m) combined with a built-in ballistic calculator, enabling accurate distance measurement and real-time shooting solutions for improved accuracy in the field.

The ACE S60R uses NocPix’s Vision+ system, featuring a 2560×2560 circular AMOLED display for an immersive, high-contrast viewing experience with reduced eye strain. Combined with Reality+ image processing, it enhances clarity, suppresses noise, and maintains detail across changing environmental conditions.

Built for real-world hunting performance, the S60R also includes recoil-activated video recording, picture-in-picture mode, onboard storage, Wi-Fi connectivity, compass and motion sensors, and multiple reticle options. A dual power system (internal battery plus replaceable 18650 cell) ensures extended runtime and hot-swappable operation in the field.

Key Features

• 1280×1024 thermal sensor (12μm) for ultra-high detail imaging
• ≤15mK NETD sensitivity for superior thermal contrast
• 60mm F1.0 objective lens for extreme long-range detection
• 2×–24× magnification for flexible targeting
• Integrated LRF (~1200m) with ballistic calculator
• Vision+ 2560×2560 AMOLED display for immersive viewing
• 50Hz refresh rate for smooth imaging
• Reality+ image processing for enhanced clarity
• Recoil-activated recording, PIP mode, Wi-Fi & onboard storage
• Dual power system (internal + 18650 hot-swap battery)

Ideal Use Cases

• Long-range night hunting and precision shooting
• Wildlife observation over open terrain
• Professional pest control and land management
• Security and surveillance in low-visibility conditions

The NocPix ACE S60R represents the pinnacle of thermal riflescope technology in the ACE lineup, combining ultra-high resolution, integrated ranging, and advanced imaging tools into a rugged, field-ready platform designed for maximum performance at distance.

Spec

• 15mK NETD
• Tube Diameter: 30mm

• Mounting: Compatible with standard 30mm scope rings
• Ocular zoom
• Built-in LRF
• Ballistic Calculation
• Recoil Activated Video function
• Gallery function
• Dual power supply system
• Built-in memory, supporting photographing, video recording
• Built-in Wi-Fi module, supporting APP connection
• Built-in compass and motion sensor
• PIP (picture-in-picture) function
• Pixel defect correction
• Convenient operation interface

What's Included

• ACE Series Thermal Imaging Scope
• Heated target for zeroing
• Lens cloth
• 2 x 18650 battery
• Type-C cable
• Quick start guide
• Battery charger
• Portable bag
