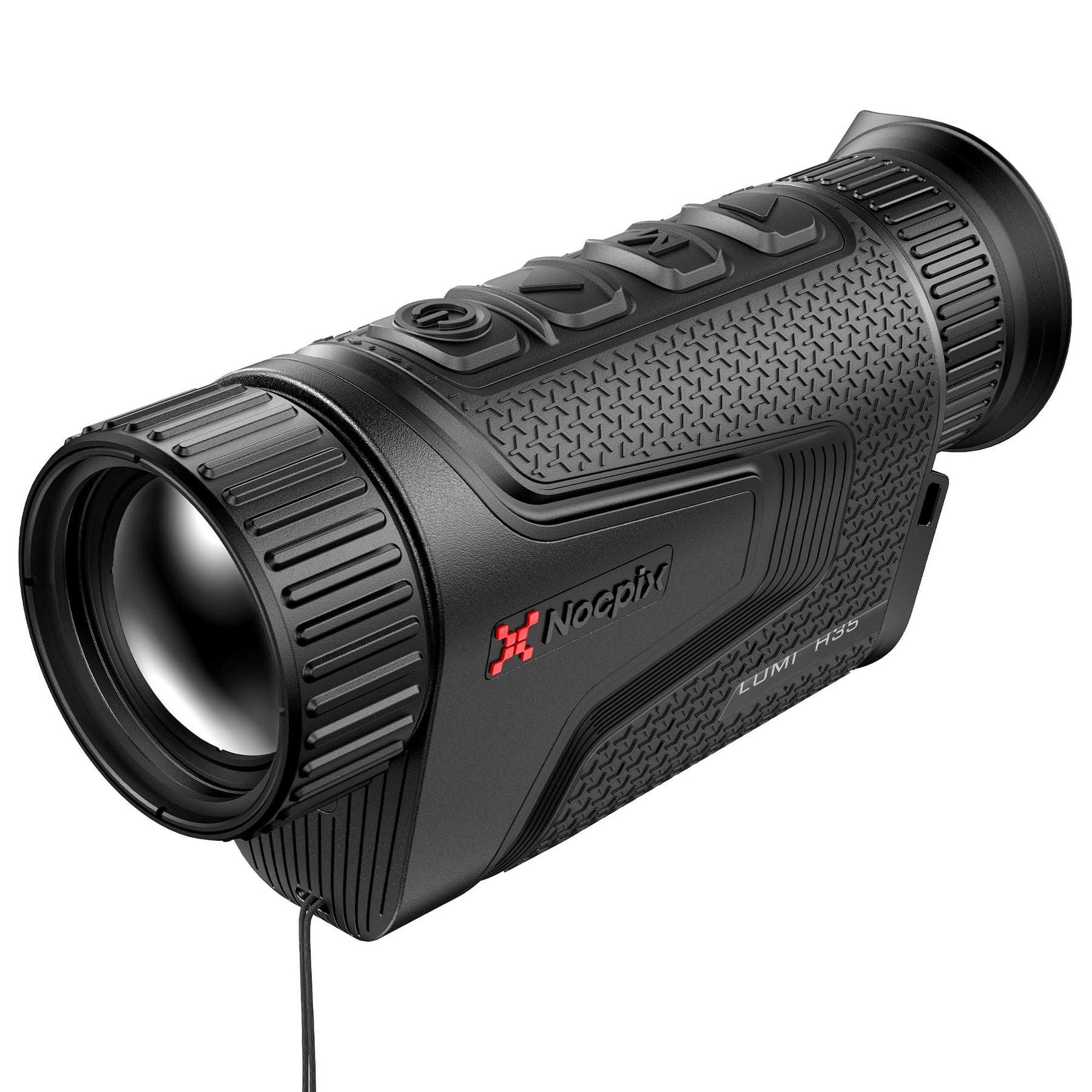

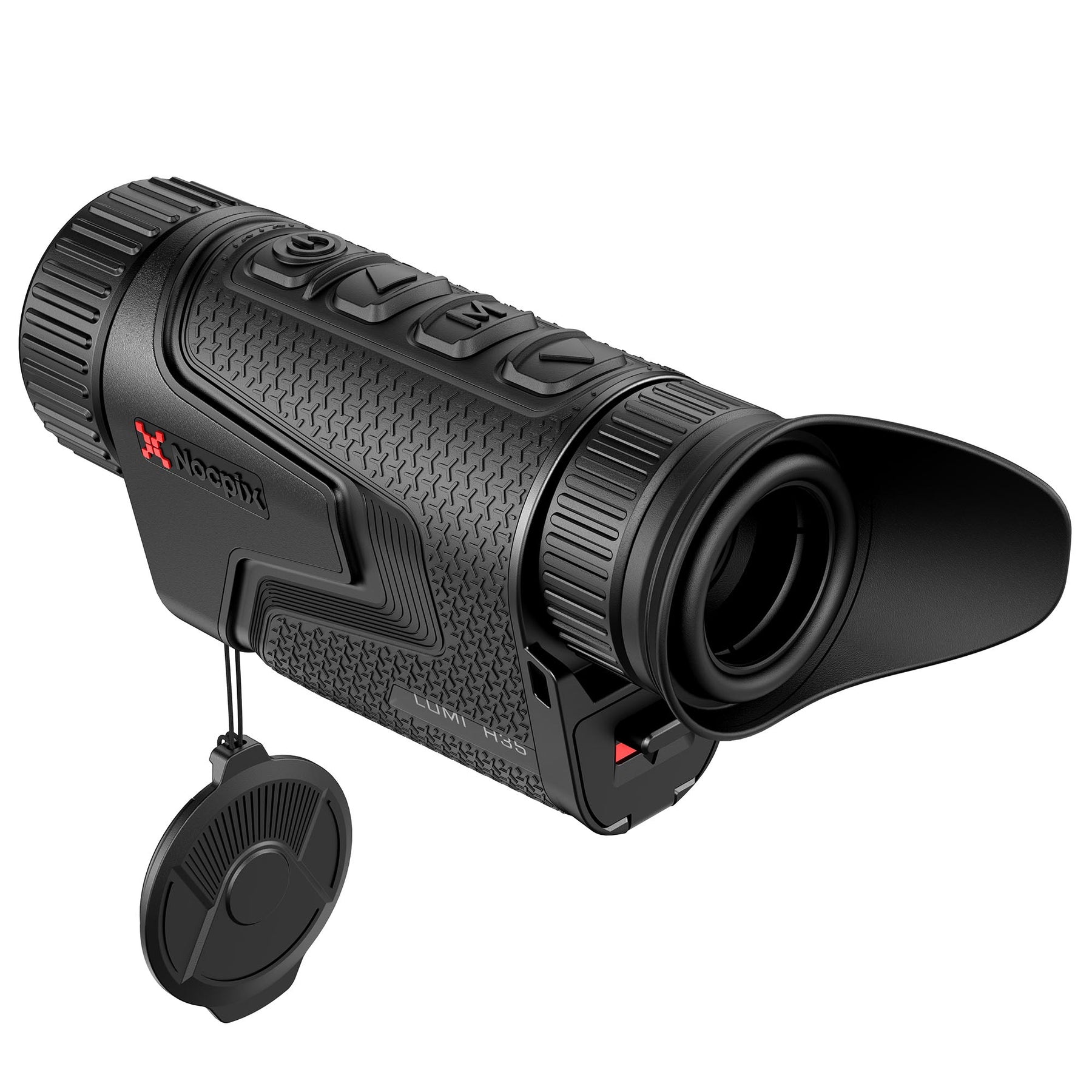

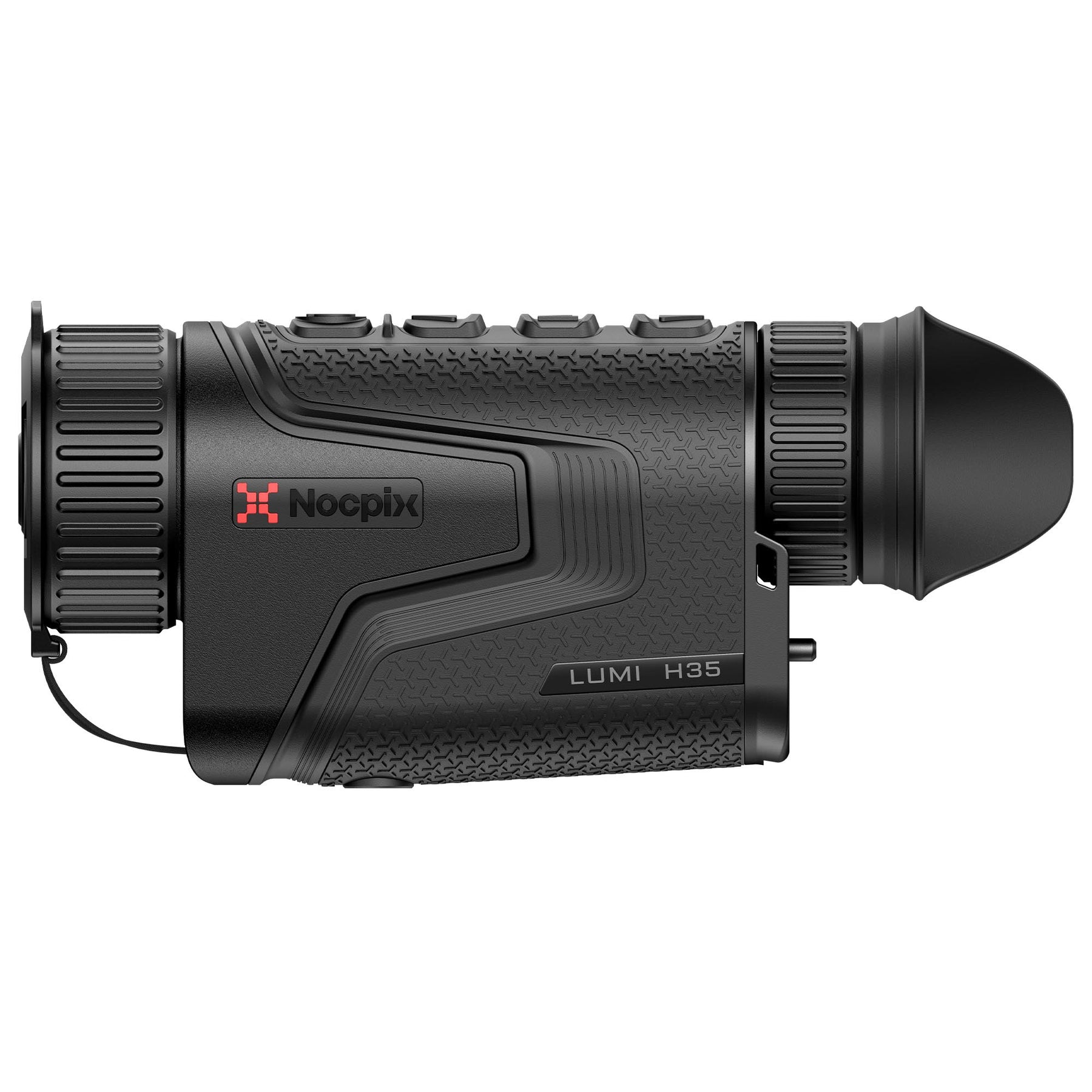

NocPix LUMI H35 Thermal Imaging Monocular

The NocPix LUMI H35 Thermal Imaging Monocular is a compact, high-performance handheld thermal device designed for users who require excellent image quality in a lightweight and highly portable format. Suitable for hunting, wildlife observation, security, and search operations, it delivers reliable detection and clear thermal imaging in all lighting and weather conditions.

At its core is a 640×512, 12μm thermal sensor with ≤18mK sensitivity, providing detailed heat signature detection and consistent performance even in challenging environments such as fog, rain, or dense vegetation. Paired with a 35mm F0.9 objective lens, the device captures more thermal energy than standard optics, resulting in brighter, clearer imagery and improved long-range capability.

The LUMI H35 offers a 2.5× base magnification with digital zoom up to 20×, giving users flexibility for both wide-area scanning and detailed target identification. A 50Hz refresh rate ensures smooth, real-time viewing, while the 1024×768 AMOLED display delivers sharp and comfortable visuals during extended use.

Designed with portability in mind, the unit features an ultra-compact body weighing under 345g, making it easy to carry for long periods in the field. It is powered by a replaceable 18650 battery, allowing quick swaps and extended operation without downtime.

Advanced features such as Reality+ image enhancement algorithms, electronic image stabilisation, and multiple colour palettes improve clarity, reduce noise, and minimise eye fatigue, ensuring a more comfortable and effective viewing experience. Additional functionality includes photo and video recording with onboard storage, making it a versatile tool for both observation and documentation.

Key Features

• 640×512 thermal sensor (12μm) for high-detail imaging
• ≤18mK NETD sensitivity for detecting subtle heat differences
• 35mm F0.9 objective lens for enhanced brightness and range
• 2.5×–20× magnification for flexible observation
• 1024×768 AMOLED display for clear, comfortable viewing
• 50Hz refresh rate for smooth, real-time imaging
• Electronic image stabilisation & Reality+ processing
• Compact, lightweight design (~345g)
• Replaceable 18650 battery system
• Photo/video recording with onboard storage

Ideal Use Cases

• Night hunting and pest control
• Wildlife observation and tracking
• Security and surveillance
• Search and rescue operations

The NocPix LUMI H35 stands out as a “mini but mighty” thermal monocular, offering high-resolution performance, excellent portability, and advanced image processing—ideal for users who want professional-grade thermal capability in a compact handheld device.

Spec

• Compact and lightweight
• 12μm detector
• F0.9 objective lens
• AMOLED 1024×768
• Rechargeable Battery 18650 for quick replacement
• 50Hz high frame rate
• Smooth digital zoom
• Ultraclear mode
• Eye protection with low brightness, color palette and warm hue
• Electronic image stabilisation

What's Included

• LUMI series Thermal Imaging Monocular
• Portable bag
• 18650 Battery × 2
• 18650 battery charger
• Data cable
• Neck Strap
• Lens cleaning cloth
• Quick start guide
