Umarex PAC 1100 Performance Air Compressor

• Manufacturer: Umarex
• Model: PAC 1100 Performance Air Compressor
• Manufacturer item number: 2.0050
• Compressor type: High-pressure PCP air compressor
• Power supply: 230V AC mains or suitable 12V DC vehicle supply
• Maximum filling pressure: 320 bar
• Maximum filling pressure: 4,640 psi
• Maximum supported reservoir volume: 3 litres
• Reference filling time: Approximately 4 minutes 48 seconds for 0.2 litres at 190 bar
• Noise level: Approximately 72 dB
• Automatic shut-off: Yes
• Pressure adjustment: 1-bar increments
• Display: Digital
• Overheat protection: Yes
• Compressor lubrication: Oil-free
• External water cooling: Not required
• Air filtration: Replaceable sponge filter
• High-pressure connection: Foster
• Included adapters: 1/8", M10 and M10x1
• Dimensions (L × W × H): 240 × 140 × 270 mm
• Weight: Approximately 8.5 kg
• Intended use: Filling compatible PCP airgun reservoirs

Filling times vary depending on reservoir size, starting pressure, selected final pressure, power supply and operating conditions.

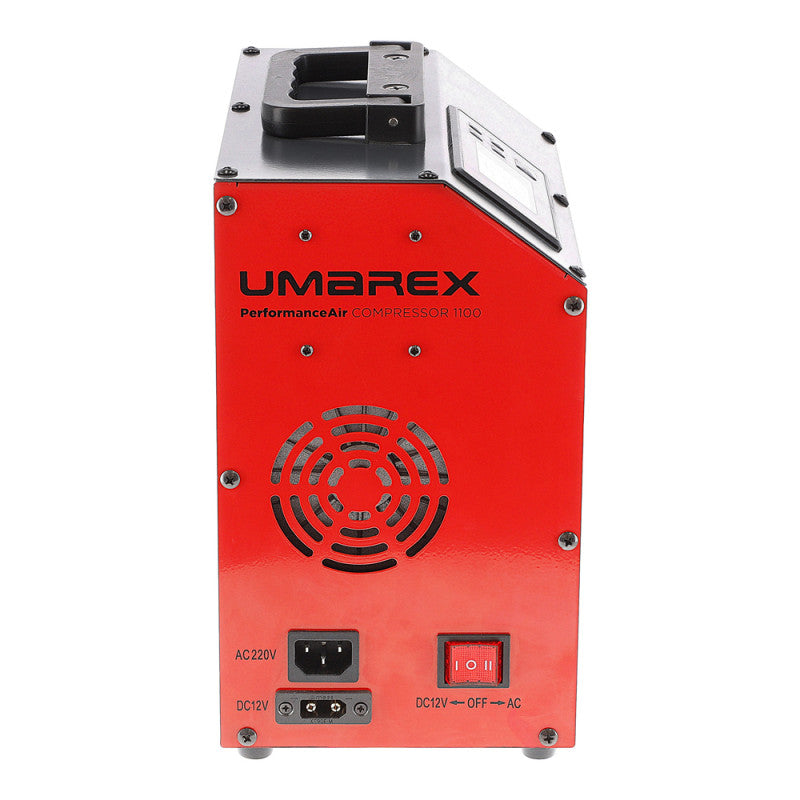

One of the main advantages of the PAC 1100 is its dual power capability. The compressor can operate from a suitable 230V mains electricity supply or from a compatible 12V vehicle power source.

For home use, mains operation provides a convenient solution for filling PCP air rifles in a workshop, garage or other suitable location.

When mains electricity is unavailable, the supplied 12V vehicle connection cable set allows the compressor to be powered from an appropriate vehicle electrical supply, provided the vehicle and electrical system meet the compressor manufacturer's requirements.

This makes the PAC 1100 particularly attractive to shooters who want the flexibility to refill their PCP equipment at home and while travelling.

The PAC 1100 does not contain a rechargeable battery and cannot operate independently of an external electrical supply.

Always use the supplied or manufacturer-approved cables and follow the operating instructions regarding power connections, current requirements and safe vehicle operation.

Do not assume that a standard 12V accessory socket is suitable. Use only the vehicle connection arrangement specified by Umarex.

The PAC 1100 is designed to deliver rapid high-pressure filling for compatible PCP airguns, with a maximum output pressure of 320 bar (4,640 psi).

Umarex lists a reference filling time of approximately 4 minutes and 48 seconds for a 0.2-litre reservoir at 190 bar.

Its maximum supported reservoir volume of 3 litres gives it greater capacity than the PAC 400, PAC 900 and PAC ECO Silent models.

This makes it suitable for a broader range of compatible PCP reservoirs, including certain larger airgun cylinders, provided the reservoir falls within the manufacturer's specified limits.

The PAC 1100 is particularly useful for shooters who refill their rifles regularly and want faster performance than smaller entry-level compressors.

Actual filling times depend on reservoir volume, starting pressure, target pressure, ambient conditions and the electrical power supply used.

Always follow the maximum filling pressure specified by the airgun or reservoir manufacturer. A reservoir rated to 200 bar must never be filled to 320 bar.

The PAC 1100 features an adjustable automatic shut-off system that allows the desired filling pressure to be selected in precise 1-bar increments.

Once the selected pressure is reached, the compressor automatically stops the filling process.

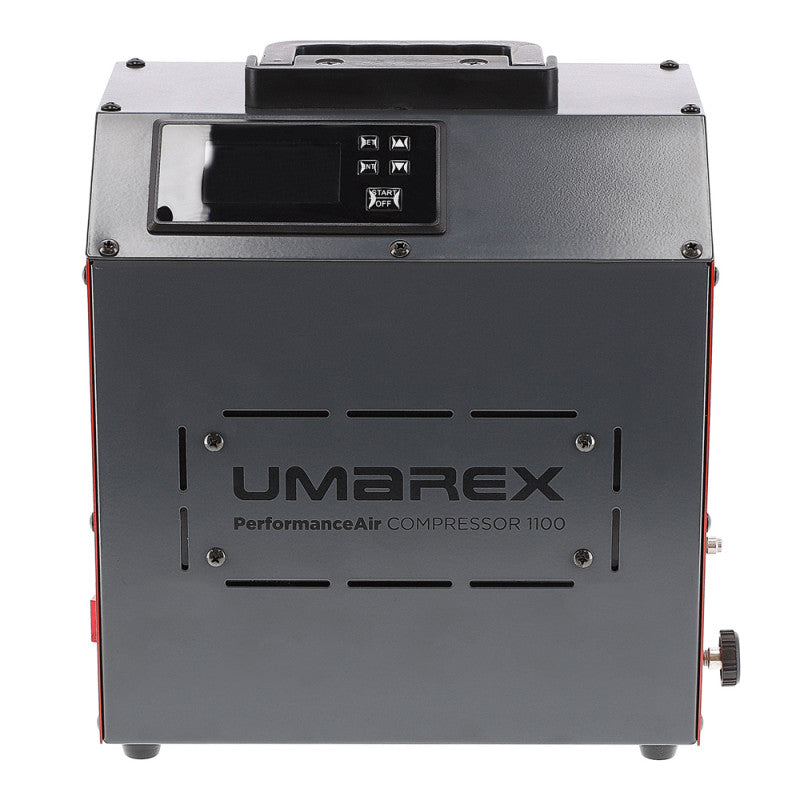

The integrated digital display allows the user to select and monitor the required pressure, helping provide a controlled filling process.

This is particularly useful for owners of multiple PCP airguns with different recommended charging pressures.

Always check the correct pressure for the reservoir before starting and monitor the compressor throughout operation.

The automatic shut-off feature does not remove the need to follow the manufacturer's operating instructions or supervise the filling process.

The PAC 1100 features an oil-free compressor design, eliminating the need for routine compressor oil changes.

It also operates without an external water-cooling tank or pump, helping simplify preparation and routine use.

An integrated overheat protection system helps protect the compressor if operating temperatures become excessive.

The compressor is fitted with a replaceable sponge air filter, which should be inspected and maintained in accordance with the manufacturer's instructions.

Keep ventilation openings unobstructed and operate the compressor on a stable, dry surface with adequate airflow.

Oil-free operation does not mean that the compressed air is guaranteed to be free from atmospheric moisture. Follow the manufacturer's instructions for any moisture management or filtration requirements.

Regularly inspect the filling hose, seals, fittings and electrical cables for signs of wear or damage.

Never operate the compressor with damaged components or attempt unauthorised repairs.

The PAC 1100 is designed for filling compatible pre-charged pneumatic airguns and approved compressed-air reservoirs within the compressor's specified pressure and capacity limits.

The supplied high-pressure filling hose uses a Foster connection, a widely used fitting type for PCP airgun charging equipment.

Adapters for 1/8", M10 and M10x1 connections are included.

Some PCP airguns use manufacturer-specific filling probes or other connection types, which may require an additional compatible adapter.

Before filling, confirm that the reservoir is suitable for high-pressure compressed air, that all fittings are correctly connected and that the selected pressure is within the reservoir manufacturer's limit.

Never attempt to fill an unsuitable, damaged or unapproved pressure vessel.

With a compact design and approximately 8.5 kg weight, the PAC 1100 is suitable for users who want a compressor that can be moved between a home workshop and other suitable filling locations.

The 12V vehicle power option adds useful flexibility when a mains supply is unavailable.

Umarex rates the PAC 1100 at approximately 72 dB, making it quieter than the PAC 900 and PAC 400 according to their published figures, although it is not as quiet as the PAC ECO Silent.

For users who want a balance of filling speed, reservoir capacity and portable power options, the PAC 1100 is a particularly versatile choice.

Ensure the compressor is used in a suitable environment with adequate ventilation, stable positioning and appropriate electrical connections.

Always read the supplied Umarex operating instructions before using the PAC 1100. The following is a general overview and does not replace the manufacturer's procedure.

• Position the compressor on a firm, level and dry surface with adequate ventilation.
• Inspect the filling hose, electrical cables, seals and reservoir for damage.
• Connect the appropriate filling adapter securely to the compatible PCP reservoir.
• Connect the compressor to a suitable 230V mains supply or approved 12V vehicle power source.
• Set the required filling pressure according to the airgun or reservoir manufacturer's instructions.
• Start the filling process using the compressor controls.
• Monitor the pressure, temperature and operating condition throughout the fill.
• Allow the compressor to stop when the selected pressure is reached.
• Follow the manufacturer's pressure-release procedure before disconnecting the filling hose.
• Inspect and maintain the compressor and filling accessories as instructed.

Never leave the compressor operating unattended, disconnect a pressurised hose or exceed the pressure rating of the reservoir.

The standard manufacturer package includes:

• 1 × Umarex PAC 1100 Performance Air Compressor
• 230V mains connection equipment
• 12V vehicle connection cable set
• High-pressure filling hose with Foster connection
• 1/8" filling adapter
• M10 filling adapter
• M10x1 filling adapter
• Sealing rings
• Replaceable sponge filter fitted to the compressor

A rechargeable battery, battery charger, PCP airgun and separate air cylinder are not included.

Check the supplied mains plug configuration before connecting to a UK socket.

The Umarex PAC 1100 Performance Air Compressor comes with a 2-year (24-month) warranty covering manufacturing defects in materials and workmanship under normal use, subject to the applicable warranty terms.

Damage caused by misuse, incorrect operation, accidental damage, unauthorised modifications or failure to follow the manufacturer's maintenance instructions is not covered.

If you experience a problem with your compressor during the warranty period, please contact Bamfords Online with your order details. We'll be happy to assist with your warranty claim.

Your statutory consumer rights remain unaffected.

What is the maximum pressure of the Umarex PAC 1100?

The PAC 1100 has a maximum filling pressure of 320 bar (4,640 psi).

Can the PAC 1100 run from mains electricity?

Yes. It can operate from a suitable 230V mains supply.

Can it run from a 12V vehicle battery?

Yes. The PAC 1100 supports operation from a suitable 12V vehicle power supply using the included connection cable set. Follow the manufacturer's electrical requirements.

Does the compressor have a built-in battery?

No. The PAC 1100 requires an external 230V or suitable 12V power source and does not include a rechargeable battery.

Are the 12V connection cables included?

Yes. A 12V vehicle connection cable set is included in the standard package.

How quickly does the PAC 1100 fill a PCP airgun?

Umarex lists a reference filling time of approximately 4 minutes and 48 seconds for a 0.2-litre reservoir at 190 bar. Actual filling times vary.

Can it fill a 300-bar PCP air rifle?

Yes, provided the airgun's reservoir is specifically rated for filling to 300 bar and the correct connection is used.

Can it fill to 320 bar?

Yes. The PAC 1100 is rated for a maximum pressure of 320 bar. Only use this pressure with a reservoir explicitly approved for it.

What is the maximum reservoir capacity?

The PAC 1100 is designed for compatible compressed-air reservoirs up to 3 litres.

Does the PAC 1100 stop automatically?

Yes. The compressor features adjustable automatic shut-off in 1-bar increments.

Does it require compressor oil?

No. The PAC 1100 is designed for oil-free operation.

Does it require water cooling?

No. An external water-cooling system is not required.

Does it have an air filter?

Yes. The compressor features a replaceable sponge air filter.

Does it have overheat protection?

Yes. The PAC 1100 includes integrated overheat protection.

How noisy is the PAC 1100?

The manufacturer lists an operating noise level of approximately 72 dB.

What filling connections are included?

The compressor uses a Foster high-pressure connection and includes 1/8", M10 and M10x1 adapters.

Does it come with a UK mains plug?

The mains plug configuration should be checked for the UK-supplied package. A suitable UK plug adapter may be required.

How much does the compressor weigh?

Approximately 8.5 kg.

What warranty does the Umarex PAC 1100 have?

The PAC 1100 comes with a 2-year (24-month) warranty covering manufacturing defects under normal use, subject to the applicable warranty terms.

What is the difference between the PAC 1100 and PAC 900?

The PAC 1100 offers a higher maximum pressure of 320 bar, supports reservoirs up to 3 litres and can operate from mains or a suitable 12V vehicle supply. The PAC 900 is mains-powered, has a 300-bar maximum pressure and is designed for reservoirs up to 1 litre.

What is the difference between the PAC 1100 and PAC 1400?

The PAC 1100 operates from 230V mains or a suitable 12V vehicle power supply and delivers up to 320 bar. The PAC 1400 operates from mains or compatible rechargeable batteries, delivers up to 300 bar and has a faster manufacturer-listed reference filling time.

Which Umarex PAC compressor should I choose?

The PAC 1100 is a strong choice for shooters who want fast filling and the flexibility of mains or 12V vehicle power. Choose the PAC 1400 for rechargeable battery operation, the PAC 900 for a compact mains-powered option, the PAC 400 for lightweight battery-powered portability or the PAC ECO Silent where reduced noise is the main priority.
