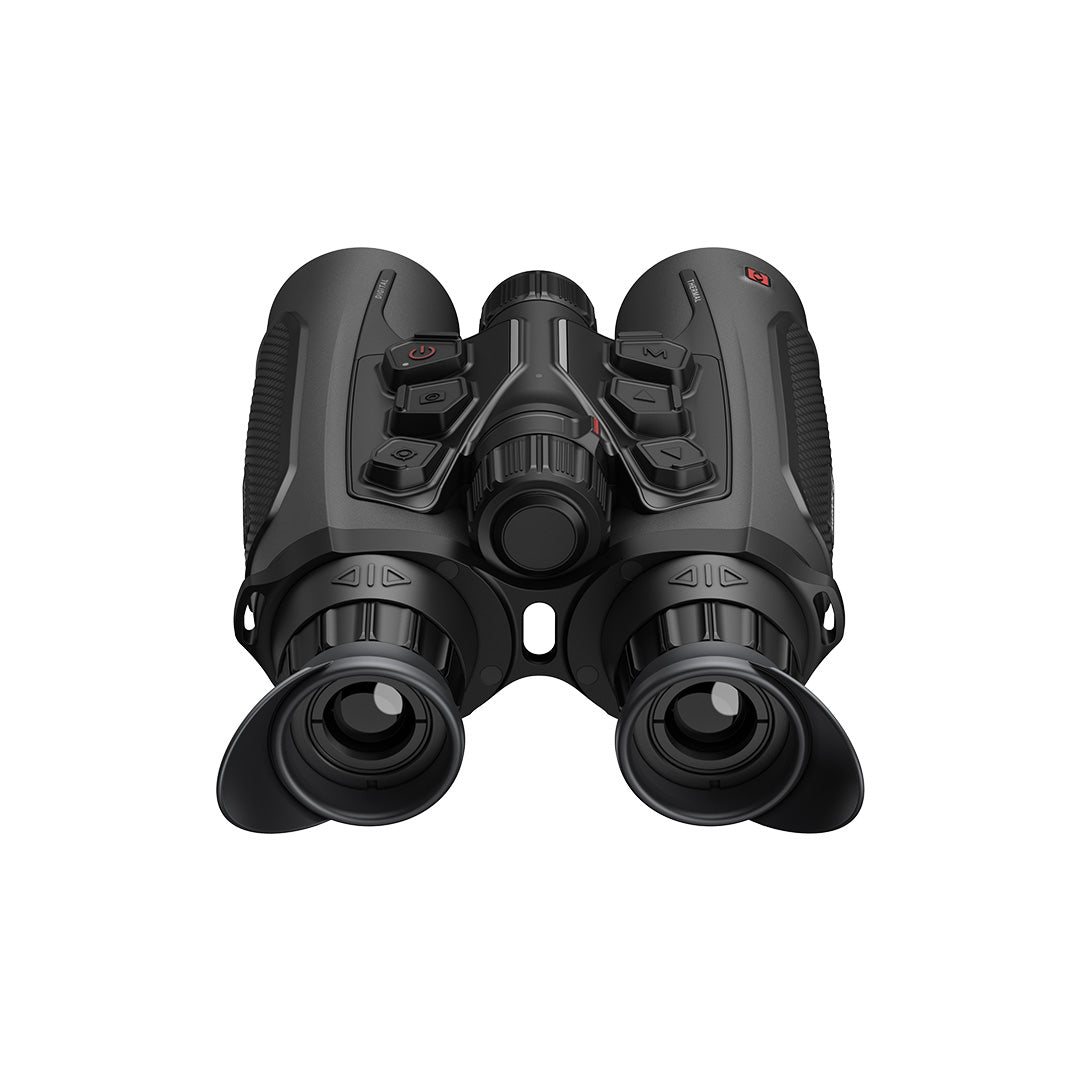

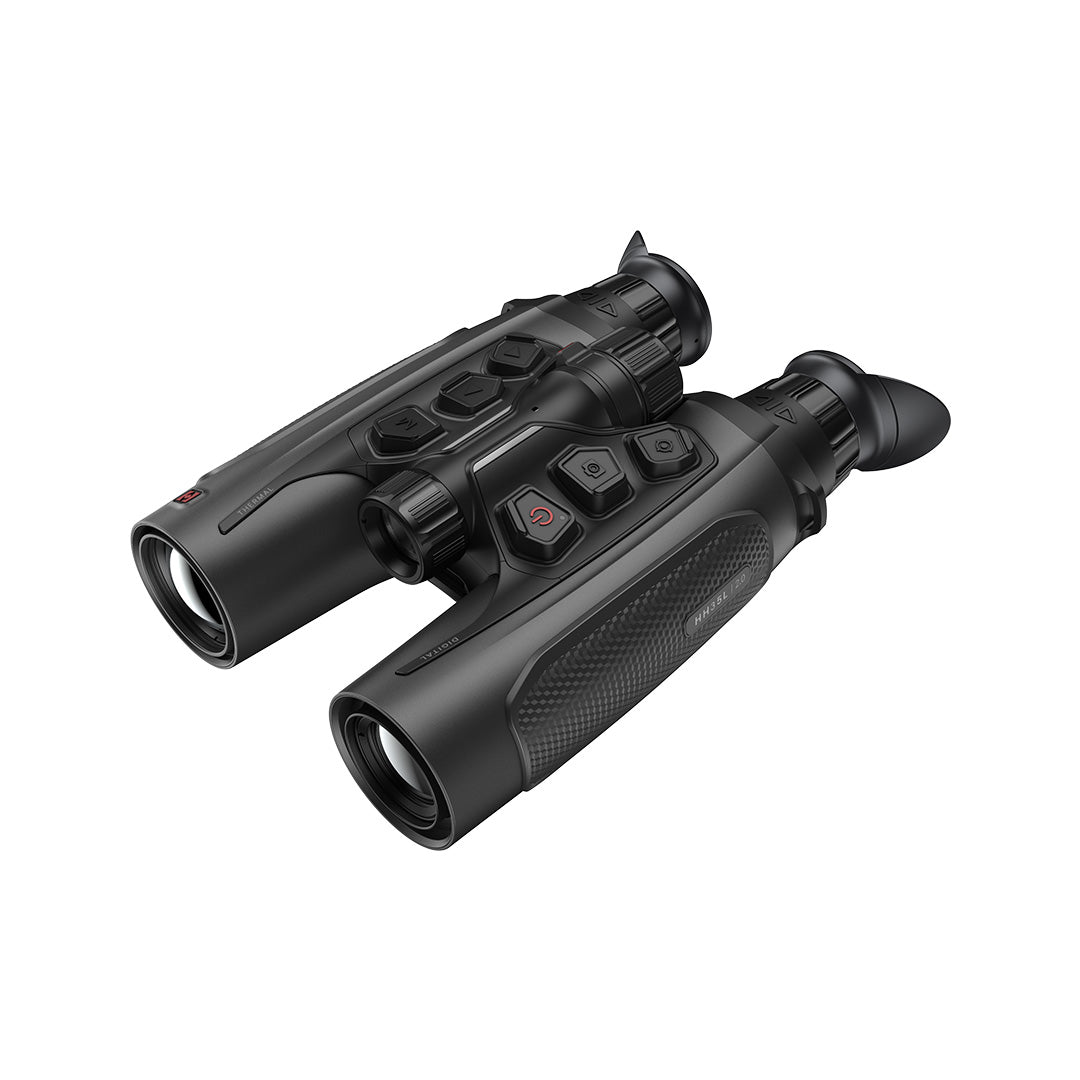

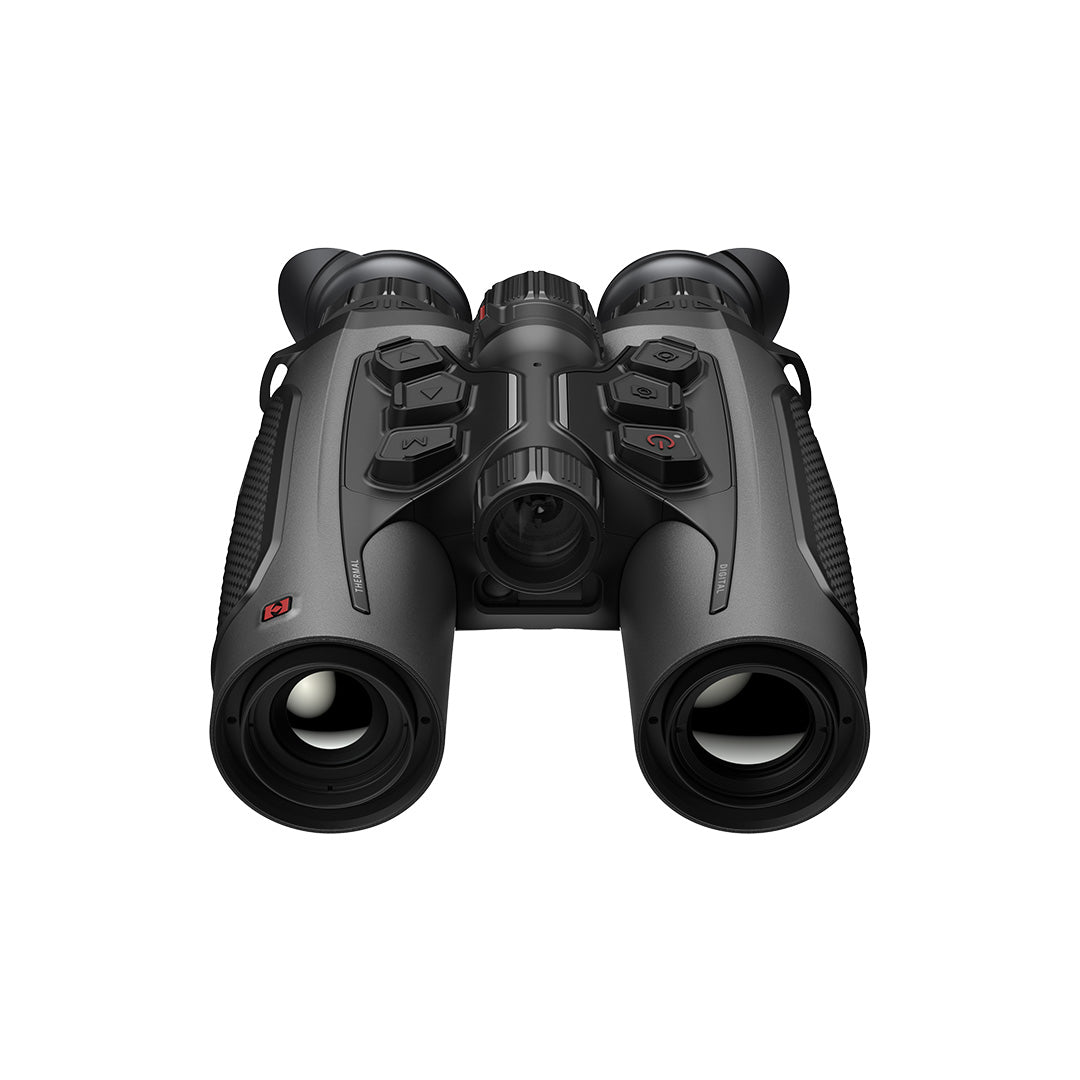

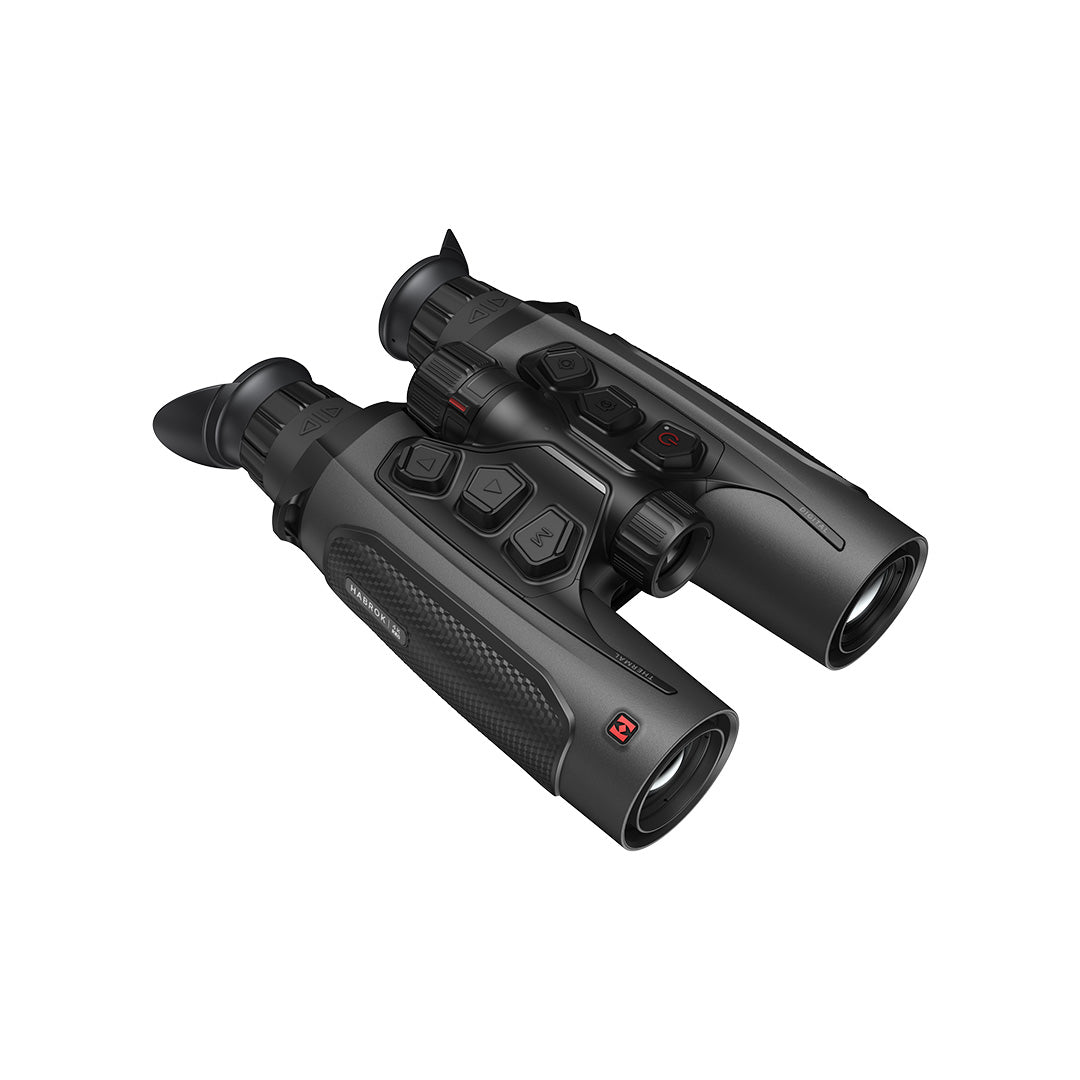

HIKMICRO Habrok 4K 2.0 HH35L Thermal & Digital Binoculars with LRF

The HH35L 2.0 incorporates a 384 × 288 thermal detector with 12µm pixel pitch, a 35mm F1.0 objective lens and thermal sensitivity below 15mK.

This combination provides improved temperature differentiation and image detail in demanding observation conditions, helping users locate animals and other heat sources against complex backgrounds.

The thermal channel operates at 50Hz for smooth moving imagery and offers a detection range of up to 1,800m under the manufacturer's test conditions.

Thermal magnification ranges from 4.0× to 20.0×, allowing users to scan an area and progressively enlarge distant subjects.

The available thermal palettes include White Hot, Black Hot, Red Hot, Red Monochrome, Green Monochrome and Fusion.

Importantly, the quoted 1,800m range is a detection figure rather than a guarantee that an animal or object can be positively identified at that distance. Identification range depends on the target, conditions and viewing environment.

Alongside its thermal detector, the Habrok features a dedicated 3840 × 2160 digital imaging sensor with a 60mm F2.2 objective lens.

This optical channel provides detailed daytime imagery and infrared-assisted viewing after dark, making it useful when users want to observe physical features that cannot be distinguished through thermal imaging alone.

The digital channel offers magnification from 5.5× to 22.0× and supports day, night and automatic viewing modes.

With suitable infrared illumination, the manufacturer quotes a night viewing distance of up to 400m. Actual performance will vary according to the illuminator, environmental conditions and target reflectivity.

The binoculars allow users to switch between thermal detection and digital observation using the rear control, reducing the need to change equipment during use.

The integrated laser rangefinder measures distances from approximately 10m to 1,000m, with a stated accuracy of ±1m.

This allows users to establish distances while observing through the binoculars without switching to a separate rangefinding device.

Maximum range	1,000m
Minimum range	10m
Measurement accuracy	±1m
Laser wavelength	905nm
Laser classification	Class 1

The binoculars also support ballistic calculation functionality, subject to correct configuration and the applicable device settings.

HSIS Shutterless Technology

HIKMICRO Shutterless Image System technology helps maintain continuous thermal viewing without the familiar image freeze associated with conventional shutter-based calibration.

Image Pro 3

Advanced image processing enhances perceived detail, contrast and image clarity to make observation more comfortable across varying conditions.

Electronic Image Stabilisation

Image stabilisation is supported in both thermal and digital channels, helping reduce visible movement when using higher magnification settings.

Picture-in-Picture

Picture-in-Picture allows an enlarged section of the image to be viewed while retaining awareness of the wider scene.

Rear Focus Control

The rear-mounted focus wheel provides convenient focusing while the binoculars remain in a natural viewing position.

Photo and Video Recording

Capture photographs, video and audio recordings using the built-in 64GB storage.

Wireless Connectivity

Wi-Fi hotspot functionality enables compatible connection with the HIKMICRO Sight App for supported viewing, media and device functions.

The HIKMICRO Habrok 4K 2.0 HH35L uses replaceable rechargeable 18650 lithium-ion batteries.

Four 18650 batteries are included in the manufacturer's standard package, providing two pairs. The binoculars operate using two batteries at a time, so the second pair can be carried as spares.

Battery type	Rechargeable 18650 lithium-ion
Batteries included	Yes – 4 batteries
Batteries used at once	2
Spare batteries supplied	2
Battery charger included	Yes
USB-C cable included	Yes
Stated operating time	Approximately 6.5 hours per pair
External power	5V DC, 2A USB power supply supported
Direct charging	Supported

The manufacturer's stated operating time is approximately 6.5 hours at 25°C with the laser rangefinder and Wi-Fi hotspot enabled. Actual runtime depends on temperature, display settings, operating mode and feature usage.

With two complete pairs of batteries included, users can replace the first pair when depleted and continue observing. Combined runtime will vary according to operating conditions.

The included external battery charger allows the supplied rechargeable batteries to be charged separately from the binoculars.

Only use suitable rechargeable batteries that meet HIKMICRO's specifications and follow the manufacturer's battery handling and charging instructions.

The Habrok 4K 2.0 HH35L features a removable infrared illuminator for digital night vision observation.

The standard package includes a 940nm illuminator fitted to the device and an interchangeable 850nm illuminator.

940nm infrared: Produces a less visible glow, making it particularly useful when discretion is important. It is generally better suited to observing light-sensitive wildlife at closer practical distances.

850nm infrared: Generally provides stronger effective illumination for longer-range digital night vision, although the emitter may produce a faint visible red glow.

These illuminators assist the digital night vision channel. The thermal channel detects heat signatures and does not require infrared illumination to operate in darkness.

Thermal Imaging

Thermal sensor	Uncooled VOx
Resolution	384 × 288 pixels
Pixel pitch	12µm
NETD	Less than 15mK
Thermal objective	35mm F1.0
Refresh rate	50Hz
Detection range	Up to 1,800m
Magnification	4.0×–20.0×
Field of view	7.53° × 5.65°
Field of view at 100m	13.16 × 9.87m
Minimum focus	5m
Shutterless technology	HSIS

Digital Day & Night Vision

Digital sensor	CMOS
Resolution	3840 × 2160 (4K UHD)
Objective lens	60mm F2.2
Magnification	5.5×–22.0×
Field of view	7.3° × 4.1°
Field of view at 100m	12.8 × 7.2m
Minimum focus	8m
Night viewing distance	Up to 400m
IR illuminators	940nm and 850nm interchangeable
Smart IR	Supported

Display & Electronics

Display technology	OLED
Display size	0.49 inch
Display resolution	1920 × 1080
Image processing	Image Pro 3
Image stabilisation	Supported
Picture-in-Picture	Supported
Photo capture	Supported
Video recording	Supported
Audio recording	Supported
Internal storage	64GB eMMC
Wi-Fi hotspot	Supported
GPS	Supported
Digital compass	Supported
Ballistic calculator	Supported

Physical Specifications

Weight	Approximately 900g without batteries
Dimensions	Approximately 223 × 143 × 75mm
Housing	Magnesium alloy construction
Protection rating	IP67
Operating temperature	-30°C to +55°C
Interpupillary adjustment	60–74mm
Tripod mounting	1/4"-20 UNC
Power supply	Replaceable 18650 batteries / USB-C

The HH35L 2.0 sits above the HE25L 2.0 within the Habrok 4K 2.0 range, offering a higher-resolution thermal detector, improved sensitivity and a longer thermal detection distance.

Specification	HE25L 2.0	HH35L 2.0
Thermal resolution	256 × 192	384 × 288
Thermal lens	25mm	35mm
NETD	Less than 18mK	Less than 15mK
Detection range	1,200m	1,800m
Digital resolution	4K UHD	4K UHD
Laser rangefinder	1,000m	1,000m
Battery type	18650	18650

The HE25L 2.0 is a capable option for users who want combined thermal and 4K digital viewing at a lower price point.

The HH35L 2.0 is better suited to users who prioritise thermal detail, temperature sensitivity and longer-distance detection. Its 384 × 288 detector contains more than twice as many thermal pixels as the 256 × 192 HE25L 2.0 detector.

Both models retain the versatility of digital day and night viewing, integrated rangefinding and interchangeable rechargeable batteries.

Choose the HE25L 2.0 if:

• You want a more affordable entry into combined thermal and 4K digital binoculars.
• Most observation takes place at shorter or moderate distances.
• You value the convenience of thermal detection and digital viewing in one device.

Choose the HH35L 2.0 if:

• You want a more detailed 384 × 288 thermal image.
• You regularly scan open countryside, woodland edges or longer distances.
• Improved thermal sensitivity is important in challenging conditions.
• You want up to 1,800m thermal detection alongside 4K digital observation.

For users who regularly rely on thermal imaging rather than using it only occasionally, the HH35L 2.0 provides a meaningful upgrade over the HE25L 2.0.

The standard HIKMICRO Habrok 4K 2.0 HH35L package includes:

• 1 × HIKMICRO Habrok 4K 2.0 HH35L binoculars
• 4 × rechargeable 18650 lithium-ion batteries
• 1 × external battery charger
• 1 × USB Type-C cable
• 1 × 940nm IR illuminator fitted to the binoculars
• 1 × interchangeable 850nm IR illuminator
• 1 × premium HIKMICRO binocular harness
• 1 × neck strap
• 1 × tripod adapter
• 1 × lint-free cleaning cloth
• 1 × quick start guide

The four supplied batteries provide a working pair and a spare pair. An external charger is included, so there is no need to purchase a separate charger to begin using the supplied batteries.

Package contents are based on the published standard manufacturer configuration and may be subject to manufacturer changes.

The HIKMICRO Habrok 4K 2.0 HH35L is supplied with manufacturer warranty cover, subject to HIKMICRO's applicable warranty terms and conditions.

Main device	3 years
Thermal detector	10 years
Rechargeable batteries	2 years

These are the published warranty periods for the Habrok range. Coverage may depend on the applicable regional warranty policy, purchase date, product registration requirements and the nature of the fault.

The extended detector warranty applies to the thermal detector rather than every component within the binoculars.

Damage caused by misuse, unauthorised modification or other exclusions specified in the manufacturer's warranty terms may not be covered.

For warranty assistance, please contact Bamfords Online with your order details and a description of the issue. Your statutory consumer rights are unaffected.

Does the HIKMICRO Habrok 4K 2.0 HH35L include batteries?

Yes. Four rechargeable 18650 lithium-ion batteries are included in the standard package.

Does it use 18650 or 21700 batteries?

The HH35L 2.0 uses 18650 rechargeable batteries, not 21700 batteries.

Does it include a battery charger?

Yes. An external battery charger and USB Type-C cable are included.

How many batteries does it use at once?

Two 18650 batteries are used at a time. Four are supplied, providing a spare pair.

How long does the battery last?

The manufacturer's stated operating time is approximately 6.5 hours per pair at 25°C with the laser rangefinder and hotspot enabled. Actual runtime varies with conditions and use.

Can it be powered using a power bank?

Yes. The binoculars support a compatible external USB power supply.

Does it work in complete darkness?

Yes. The thermal channel detects heat without visible light. The digital channel can use the supplied infrared illuminators for night observation.

Are both 850nm and 940nm IR illuminators included?

Yes. The standard package includes a fitted 940nm illuminator and an interchangeable 850nm illuminator.

What is the maximum thermal detection distance?

The manufacturer quotes up to 1,800m under suitable conditions. Detection distance should not be confused with positive identification distance.

Does it have a laser rangefinder?

Yes. The integrated Class 1 laser rangefinder measures distances up to 1,000m with a stated accuracy of ±1m.

Can I use it during the day?

Yes. The 4K digital channel provides daytime observation, while the thermal channel can detect heat signatures in daylight or darkness.

Can I record photographs and videos?

Yes. The binoculars support photo, video and audio recording with built-in 64GB storage.

Is it waterproof?

The binoculars have an IP67 protection rating for dust and water resistance. They should still be used in accordance with the manufacturer's handling instructions.

Can it be mounted on a tripod?

Yes. A tripod adapter is included, and the device supports a standard 1/4"-20 UNC mounting connection.

What is the difference between the HH35L 2.0 and HE25L 2.0?

The HH35L 2.0 has a higher-resolution 384 × 288 thermal detector, a larger 35mm thermal lens, better stated thermal sensitivity and a longer 1,800m detection range.

Does it come with a carrying case?

A premium HIKMICRO binocular harness is included in the standard package.

What warranty does it have?

Published warranty periods are 3 years for the main device, 10 years for the thermal detector and 2 years for the rechargeable batteries, subject to applicable manufacturer terms.
