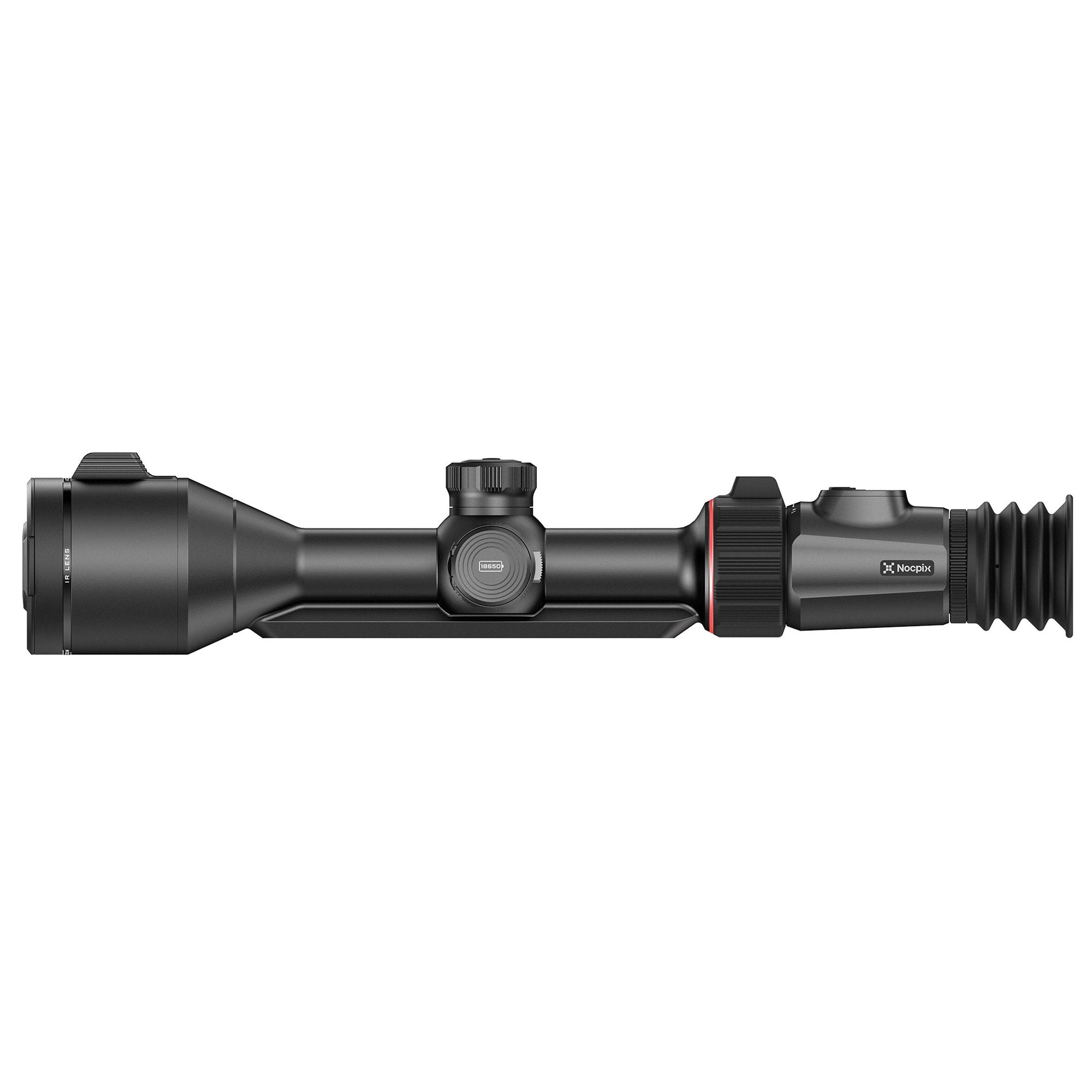

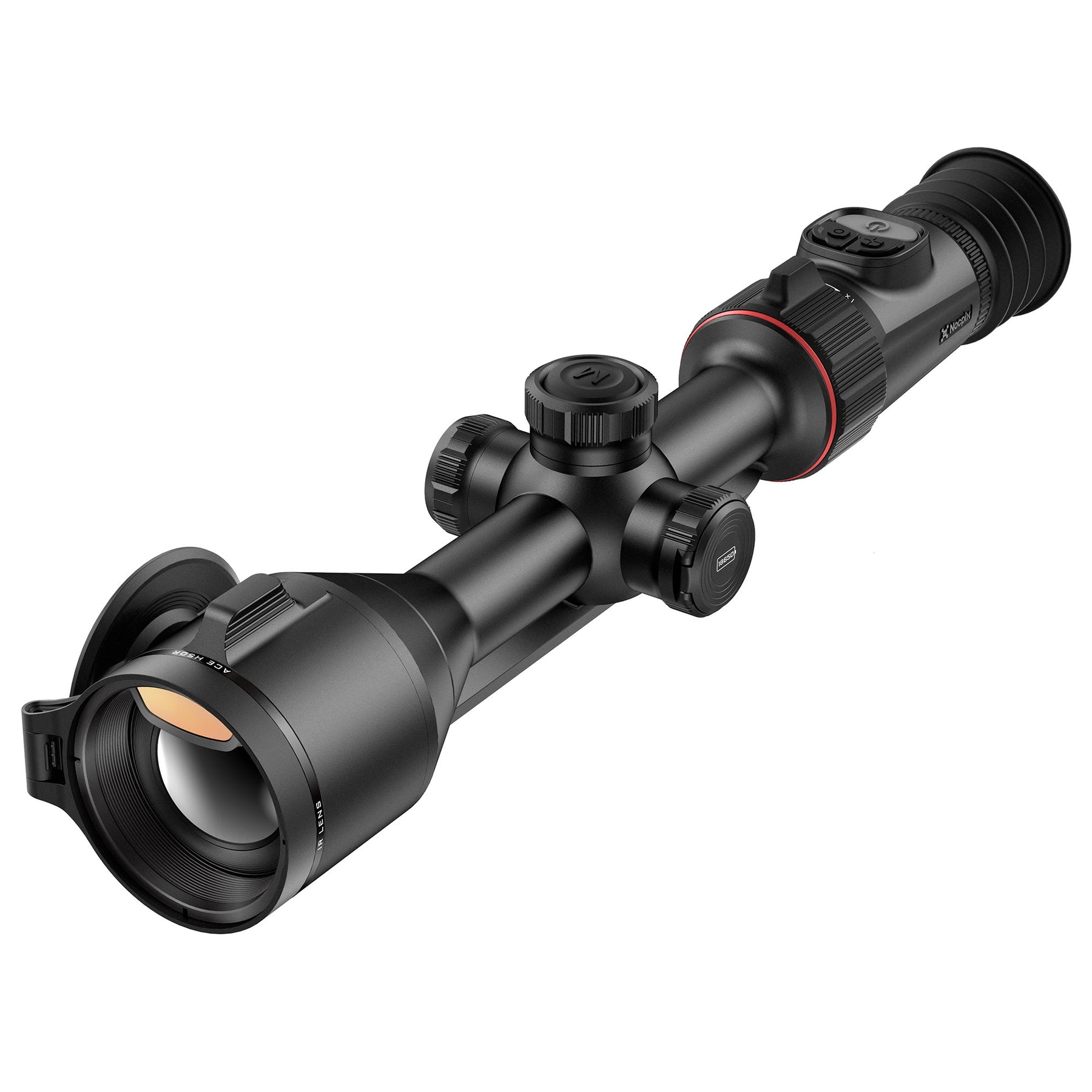

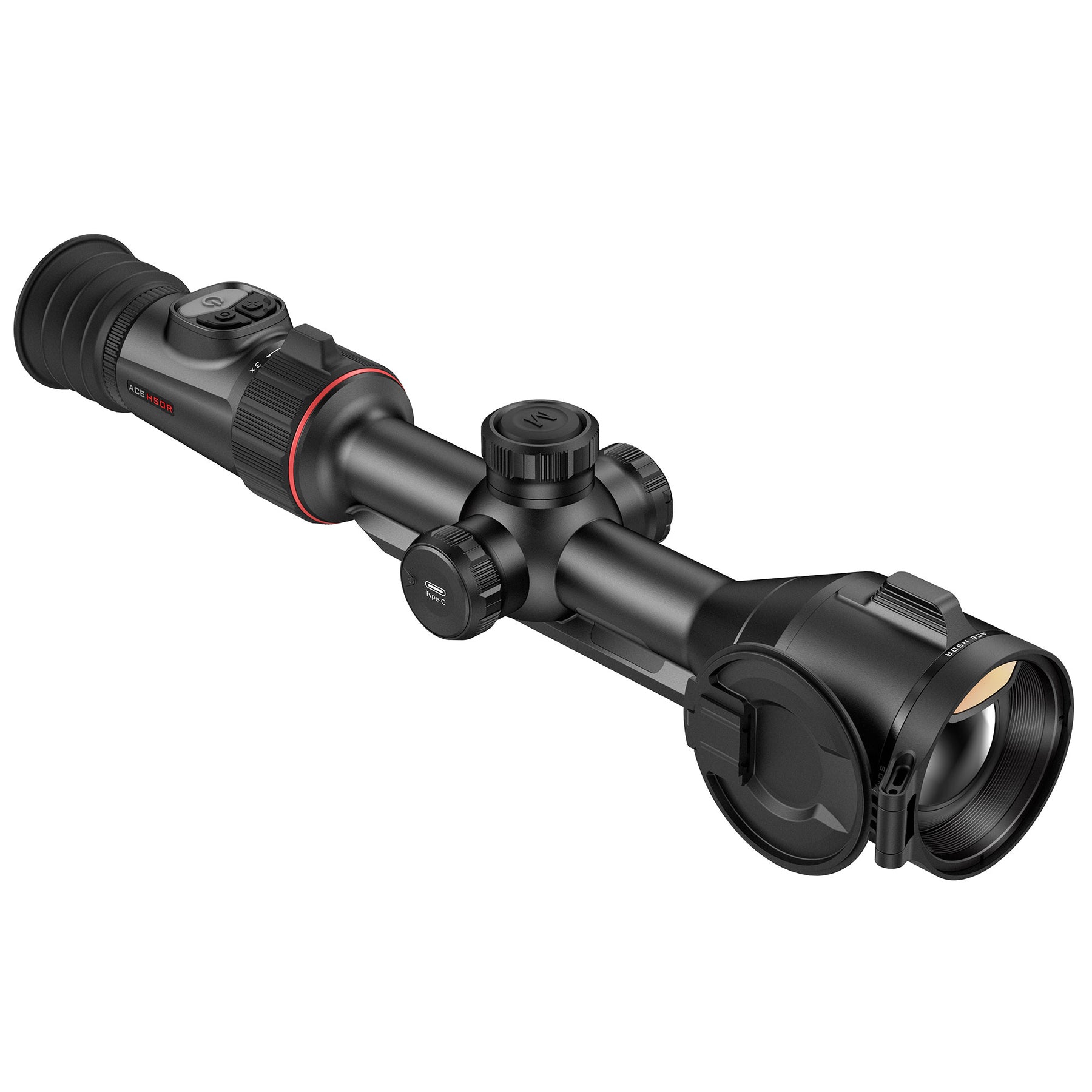

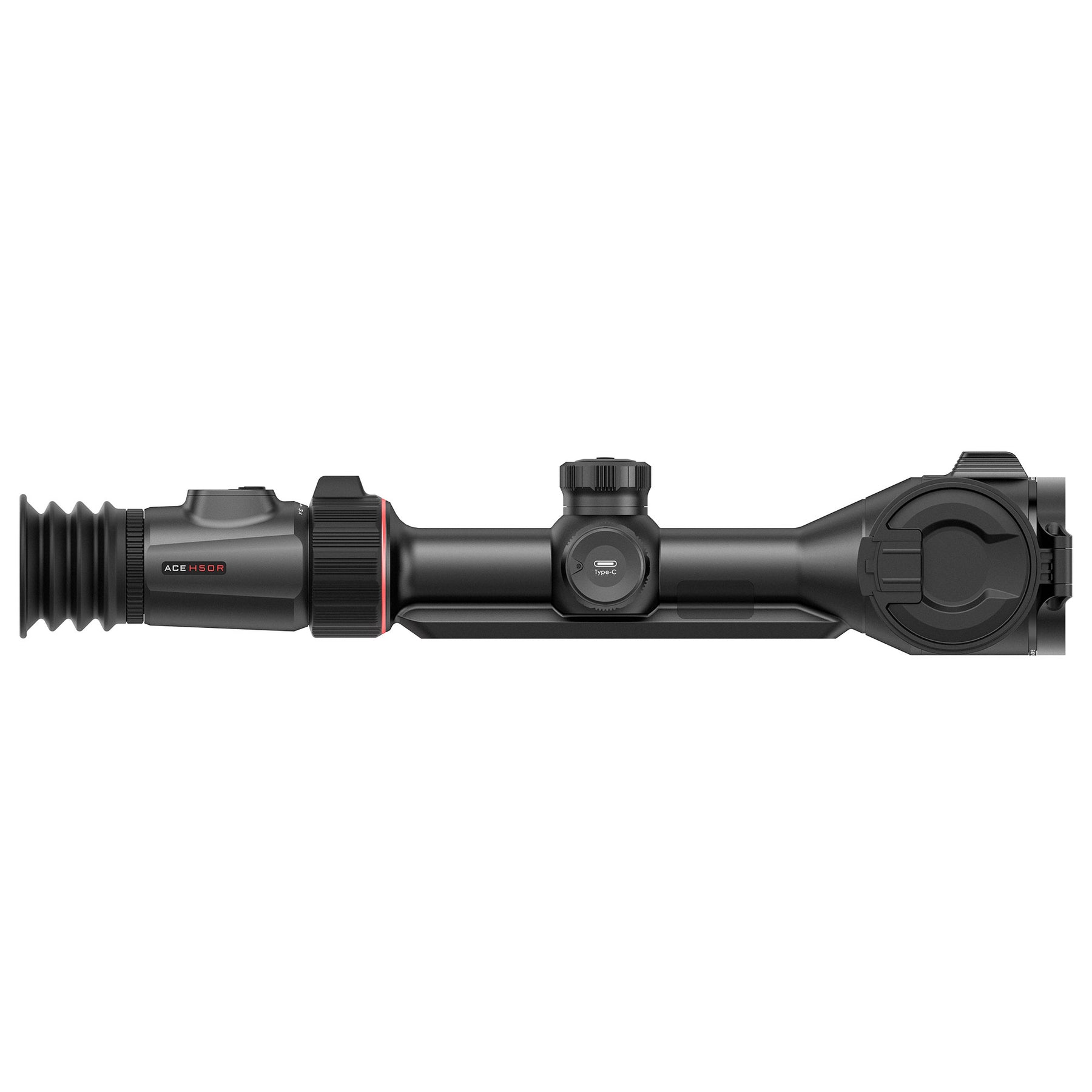

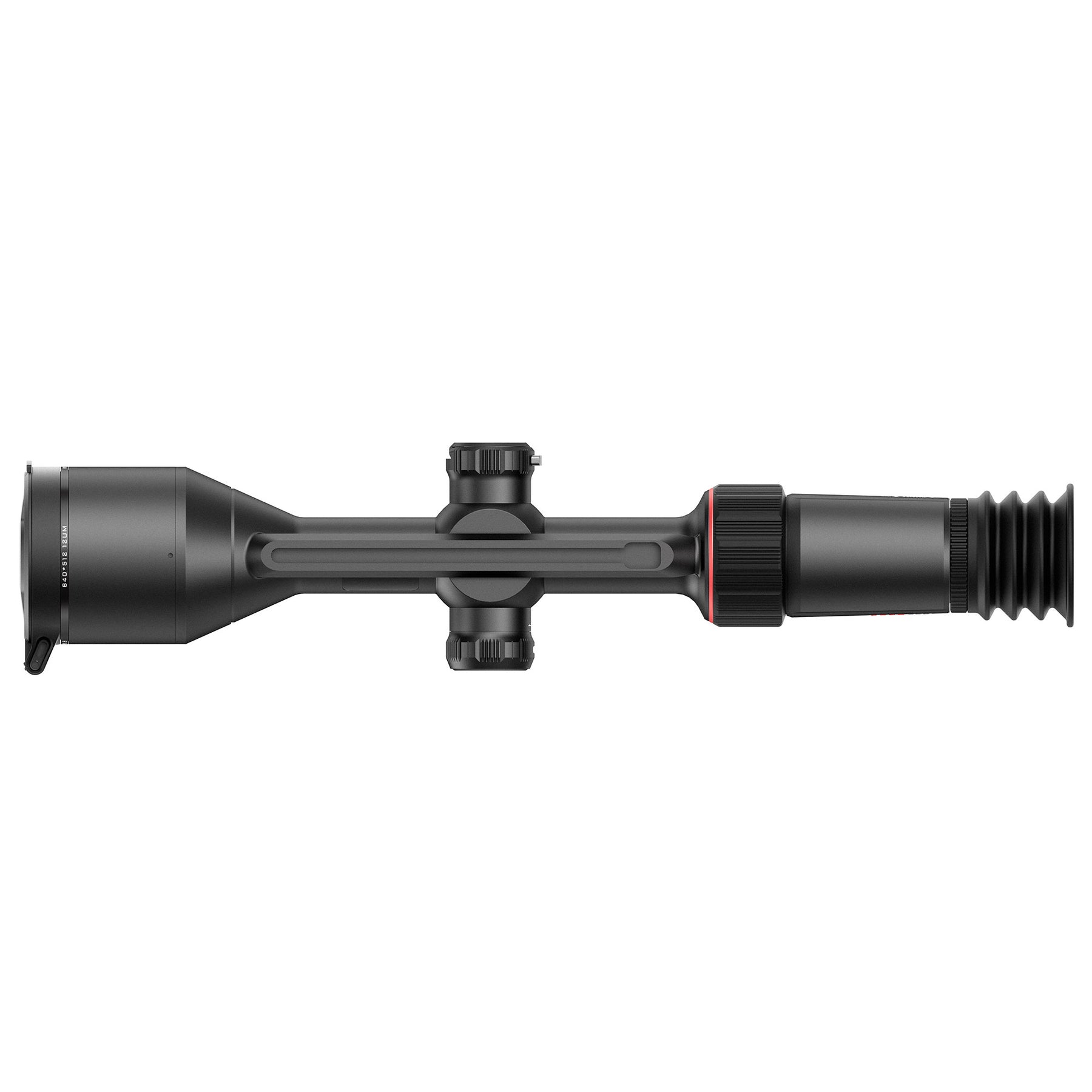

Nocpix ACE H50R RM Thermal Imaging Scope with LRF

The ACE H50R RM uses a 640×512 thermal detector with a 12μm pixel pitch, giving it substantially greater native thermal resolution than a 384×288 system.

Its ≤15mK NETD rating indicates high thermal sensitivity, allowing the detector to distinguish very small differences in temperature within the scene.

This becomes particularly useful during damp, mild, foggy or overcast conditions where an animal and its surroundings can be relatively close in temperature and the thermal image may otherwise appear flatter.

The detector operates at 60Hz, helping movement remain smooth when following a target or scanning quickly across a field.

The H50R RM combines its 640×512 detector with a fast 50mm F0.9 germanium objective lens.

The large F0.9 aperture allows a high level of infrared energy to reach the sensor, helping the detector maintain useful detail and contrast in challenging thermal conditions.

The 50mm focal length provides 3× base magnification and an 8.8° × 7.0° field of view, equivalent to approximately 15.4m × 12.3m at 100 metres.

NocPix specifies thermal detection of a standard 1.7m × 0.5m target at distances of up to 2,600 metres.

Detection range and identification range are not the same thing. At extreme range, the scope may establish that a heat source is present without providing sufficient detail for positive identification.

The ACE H50R RM incorporates an integrated Class 1 laser rangefinder directly into the thermal sight.

NocPix specifies ranging performance up to 1,200 metres and uses true optical-axis alignment within the ACE RM platform.

This enables distance to be measured without changing to a separate handheld rangefinder, which is especially useful through thermal imaging where darkness can remove many of the visual cues normally used to judge distance.

Laser Rangefinder	Integrated
Laser Safety Class	Class 1
Maximum Measuring Range	Up to 1,200m

The H50R RM supports ballistic calculation alongside the integrated laser rangefinder.

Once the relevant ballistic parameters have been correctly entered, measured range information can be used as part of the scope's ballistic solution to provide additional aiming information through the display.

Current NocPix ACE RM firmware supports ballistic-calculation distances up to 1,999 metres.

Ballistic calculation is an aiming aid and does not replace correct zeroing, verified ammunition data, safe shooting practices or positive target identification.

The main reason to choose the H50R RM instead of the standard H50R is its dedicated mounting architecture.

NocPix designed the ACE Rail Mount to provide greater structural rigidity than a conventional round 30mm scope tube held between separate rings.

• Rigid mounting interface designed for long-term stability
• Reduced possibility of optic movement under recoil
• Eliminates the risk of deforming a round scope tube through incorrectly tightened rings
• Rail interface inherently assists horizontal levelling
• Extended fore/aft adjustment makes eye-relief setup easier

The RM does not provide a better thermal sensor than the standard H50R. Its advantage is the way the scope is mounted, aligned and positioned on the rifle.

The ACE Rail Mount provides a larger range of forward-and-back positioning than would normally be available from fixed ring positions on a conventional scope tube.

This makes it easier to position the complete optic correctly for the shooter's preferred eye relief and rifle setup.

The rail-based interface also controls horizontal orientation inherently, reducing the need to manually rotate and level a round scope body within separate rings.

The ACE H50R RM provides 3× base magnification and an overall magnification range of 3–24×.

The 3× native view gives useful image scale for observation across open ground while retaining a practical field of view for locating and following heat sources.

NocPix also equips the ACE platform with its 1–3× ocular zoom system.

Rather than relying solely on digital enlargement of the thermal image, ocular zoom magnifies the viewed display through the eyepiece and is one of the defining features of the original ACE platform.

The H50R RM uses NocPix's Vision+ system with a large 1.03-inch round 2560×2560 AMOLED display.

The high-resolution display provides a detailed and immersive viewing surface for the information captured by the 640×512 thermal detector.

Display Type	1.03-inch round AMOLED
Display Resolution	2560×2560
Eye Relief	50mm
Exit Pupil	8mm
Dioptre Adjustment	-5D to +5D

NocPix's Reality+ image-processing algorithm is designed to reduce environmental temperature noise while improving thermal contrast and detail presentation.

The original ACE platform also incorporates shutterless thermal imaging intended to minimise interruption to the viewed scene during observation.

This is particularly useful when following moving animals because periodic calibration interruptions can otherwise temporarily disrupt the view.

Combined with the H50R RM's 60Hz detector, the result is designed to provide a smooth and responsive thermal image.

The ACE H50R RM uses a dual battery arrangement consisting of a built-in rechargeable battery and an additional removable rechargeable battery.

The internal battery has a capacity of 4000mAh, while the removable battery is a rechargeable 18650 Li-ion cell.

NocPix specifies up to 7 hours of maximum operating time at 22°C for the H50R platform.

Internal Battery	Built-in 4000mAh rechargeable battery
Replaceable Battery	Rechargeable 18650 Li-ion battery
Maximum Stated Runtime	Up to 7 hours at 22°C
External Power	5V USB Type-C

The removable 18650 can be exchanged during longer sessions while the internal battery remains available as an additional onboard power source.

Actual runtime varies with ambient temperature and use of power-intensive functions such as Wi-Fi and recording.

The ACE H50R RM includes 64GB of internal storage for thermal photographs and video recordings.

A built-in microphone also provides audio recording with compatible video footage.

Recoil Activated Video allows the scope to automatically capture footage associated with a detected shot, reducing the need to manually begin every recording beforehand.

A built-in Gallery allows recorded media to be reviewed directly through the scope, while Wi-Fi connectivity supports compatible NocPix app functions.

The H50R RM is designed as a dedicated weapon-mounted thermal optic rather than a handheld thermal adapted for mounted use.

The original ACE platform is rated for recoil energy up to 6,000 joules and carries an IP67 ingress-protection rating.

NocPix specifies an operating-temperature range of -20°C to +50°C.

Ingress Protection	IP67
Operating Temperature	-20°C to +50°C
Maximum Recoil Energy	6,000J

The H50R RM and standard H50R use essentially the same core thermal imaging specification.

ACE H50R	640×512 | ≤15mK | 50mm F0.9 | 3–24× | 1,200m LRF | 30mm tube
ACE H50R RM	640×512 | ≤15mK | 50mm F0.9 | 3–24× | 1,200m LRF | Rail Mount

The sensor, objective lens, magnification, field of view, detection capability and rangefinder specification are fundamentally the same.

The H50R RM and S60R RM share the same Rail Mount concept, integrated rangefinder and original ACE platform, but differ substantially in thermal resolution and objective lens specification.

ACE H50R RM	640×512 | ≤15mK | 50mm F0.9 | 3–24× | 2,600m detection
ACE S60R RM	1280×1024 | ≤15mK | 60mm F1.0 | 2–24× | 3,100m detection

The S60R RM contains around four times as many thermal pixels and provides a substantially wider field of view despite using the larger 60mm objective.

The H50R RM belongs to the original ACE generation, while ACE 2 H50R is the newer-generation model.

ACE H50R RM	640×512 | ≤15mK | 50mm F0.9 | Rail Mount | original ACE
ACE 2 H50R	640×512 | ≤12mK | 50mm F0.9 | next-generation ACE 2 platform

ACE 2 improves detector sensitivity to ≤12mK and introduces NocPix's newer R+ 2.0, Ocular Zoom 2.0 and LRF 2.0 technologies.

The H50R RM remains particularly attractive where the dedicated Rail Mount architecture is preferred or where its price represents a significant saving against the newer generation.

ACE H50R RM — 640×512 thermal detector, fast 50mm F0.9 lens, 3× base magnification, 2,600m stated detection and integrated 1,200m LRF. The better-value choice within the ACE RM range.

ACE S60R RM — flagship 1280×1024 detector, 60mm F1.0 lens, 2× base magnification, very wide 25.6m field of view at 100m and 3,100m stated detection.

Both use NocPix's dedicated Rail Mount system, integrated laser ranging, ballistic calculation, Vision+ display, ocular zoom and dual-battery power arrangement.

Model	NocPix ACE H50R RM
Generation	Original ACE RM
Device Type	Rail-mount thermal imaging riflescope with integrated LRF
Thermal Sensor	640×512
Pixel Pitch	12μm
NETD	≤15mK
Frame Rate	60Hz
Objective Lens	50mm F0.9
Magnification	3–24×
Ocular Zoom	1–3×
Field of View	8.8° × 7.0°
Field of View at 100m	15.4m × 12.3m
Detection Range	Up to 2,600m
Display Type	1.03-inch round AMOLED
Display Resolution	2560×2560
Eye Relief	50mm
Exit Pupil	8mm
Dioptre Adjustment	-5D to +5D
Laser Rangefinder	Integrated, Class 1
LRF Measuring Range	Up to 1,200m
Ballistic Calculation	Supported
Internal Battery	Built-in 4000mAh rechargeable battery
Replaceable Battery	Rechargeable 18650 Li-ion battery
Maximum Operating Time	Up to 7 hours at 22°C
External Power	5V USB Type-C
Internal Storage	64GB
Photo / Video Recording	Supported
Audio Recording	Supported
Recoil-Activated Video	Supported
Gallery	Supported
Wi-Fi / App	Supported
Ingress Protection	IP67
Operating Temperature	-20°C to +50°C
Maximum Recoil Energy	6,000J
Mounting	NocPix ACE Rail Mount

The ACE H50R RM package is supplied with the scope and the main accessories required for operation, charging, zeroing and transport.

• NocPix ACE H50R RM Thermal Imaging Scope with LRF
• Rechargeable 18650 batteries
• 18650 battery charger
• USB Type-C cable
• Zeroing target
• Lens cleaning cloth
• Protective carry bag / case
• Quick-start / product documentation

The scope itself also contains a built-in 4000mAh rechargeable battery in addition to the removable 18650 battery system.

Package contents can vary by production batch or sales region, so the contents supplied with current Bamfords stock take precedence if the manufacturer's supplied accessory list changes.

The NocPix ACE H50R RM is covered by NocPix's manufacturer's warranty, with separate warranty periods applying to the main scope, rechargeable batteries and thermal detector.

Main Device	3 years
Rechargeable Batteries	2 years
Thermal Detector	10 years

For products purchased through a NocPix certified distributor or dealer, the warranty period begins from the purchase date shown on the invoice.

The manufacturer's warranty covers qualifying performance failures caused by material, process or manufacturing defects under normal use and maintenance.

Free warranty cover does not extend to accidental damage, misuse, unauthorised modification, disassembly or repair, improper use or storage, inappropriate voltage input or other excluded damage described in NocPix's warranty terms.

Please retain your Bamfords Online invoice as proof of purchase. If a qualifying warranty issue develops with your ACE H50R RM, contact Bamfords Online for assistance with the warranty process.

What does RM mean on the NocPix ACE H50R RM?

RM refers to the Rail Mount version. Instead of a conventional round 30mm scope tube and separate rings, this version uses NocPix's dedicated rail-based mounting architecture.

What sensor does the ACE H50R RM use?

It uses a 640×512 thermal detector with a 12μm pixel pitch, ≤15mK NETD thermal sensitivity and a 60Hz refresh rate.

How far can the H50R RM detect?

NocPix specifies thermal detection of up to 2,600 metres using a standard 1.7m × 0.5m target at P(n)=99%. Recognition and positive identification occur at shorter ranges.

How far does the laser rangefinder work?

The integrated Class 1 laser rangefinder has a manufacturer-stated measuring range of up to 1,200 metres.

Does the H50R RM have ballistic calculation?

Yes. The scope supports ballistic calculation using distance information from its integrated laser rangefinder once the relevant ballistic information has been correctly configured.

What magnification does it have?

The H50R RM provides 3–24× magnification and also incorporates the original ACE 1–3× ocular zoom system.

Is the H50R RM better than the normal H50R?

Thermal performance is essentially the same. The key advantage of the RM model is its dedicated Rail Mount, which provides a rigid mounting interface, simplified horizontal alignment and greater fore/aft positioning flexibility.

Does the H50R RM use 30mm scope rings?

No. The RM version uses the dedicated NocPix Rail Mount system. Choose the standard H50R if you specifically want conventional 30mm tube mounting.

What batteries does the H50R RM use?

It uses a dual battery system consisting of a built-in 4000mAh rechargeable battery and a replaceable rechargeable 18650 Li-ion battery.

How long does the battery last?

NocPix specifies up to 7 hours of maximum operating time at 22°C. Actual runtime varies with ambient temperature and use of features such as Wi-Fi and recording.

Are batteries and a charger included?

The ACE platform is supplied with rechargeable removable batteries and a charger, while the scope itself also contains its built-in 4000mAh rechargeable battery. Package contents can vary by region or production batch.

What display does it use?

The H50R RM uses a 1.03-inch round 2560×2560 AMOLED display as part of NocPix's Vision+ viewing system.

Does the ACE H50R RM record video?

Yes. It supports photography, video and audio recording, Recoil Activated Video and includes 64GB of internal storage.

How much recoil can it withstand?

NocPix specifies recoil resistance of up to 6,000 joules for the original ACE platform.

Is the H50R RM waterproof?

The scope carries an IP67 ingress-protection rating.

Is this the ACE 2 H50R?

No. This is the original-generation ACE H50R RM. The ACE 2 H50R is a separate newer-generation product with different specifications, including an upgraded ≤12mK thermal detector.

What warranty does the NocPix ACE H50R RM have?

NocPix specifies a 3-year warranty for the main device, 2 years for rechargeable batteries and 10 years for the thermal detector, subject to the manufacturer's warranty terms.
