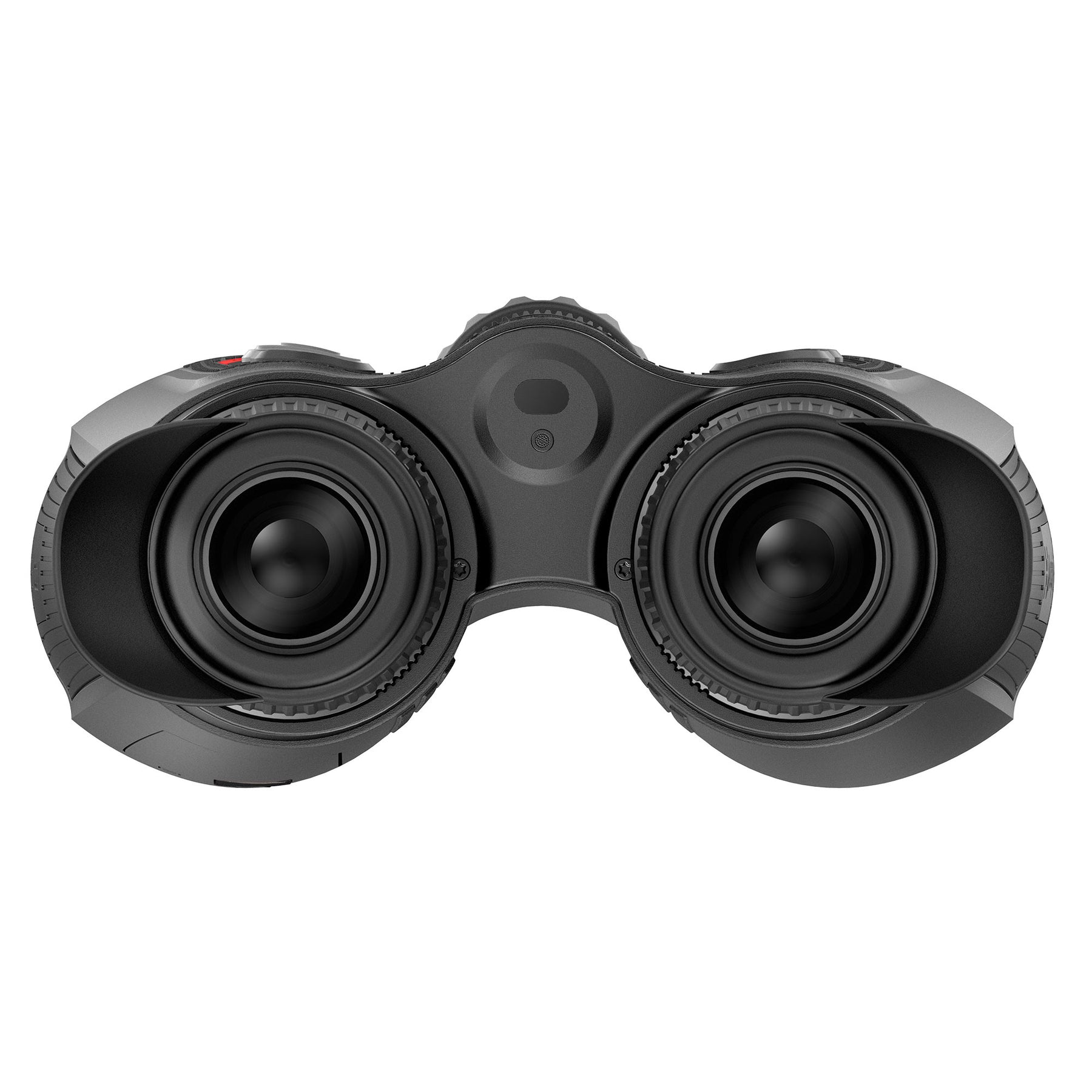

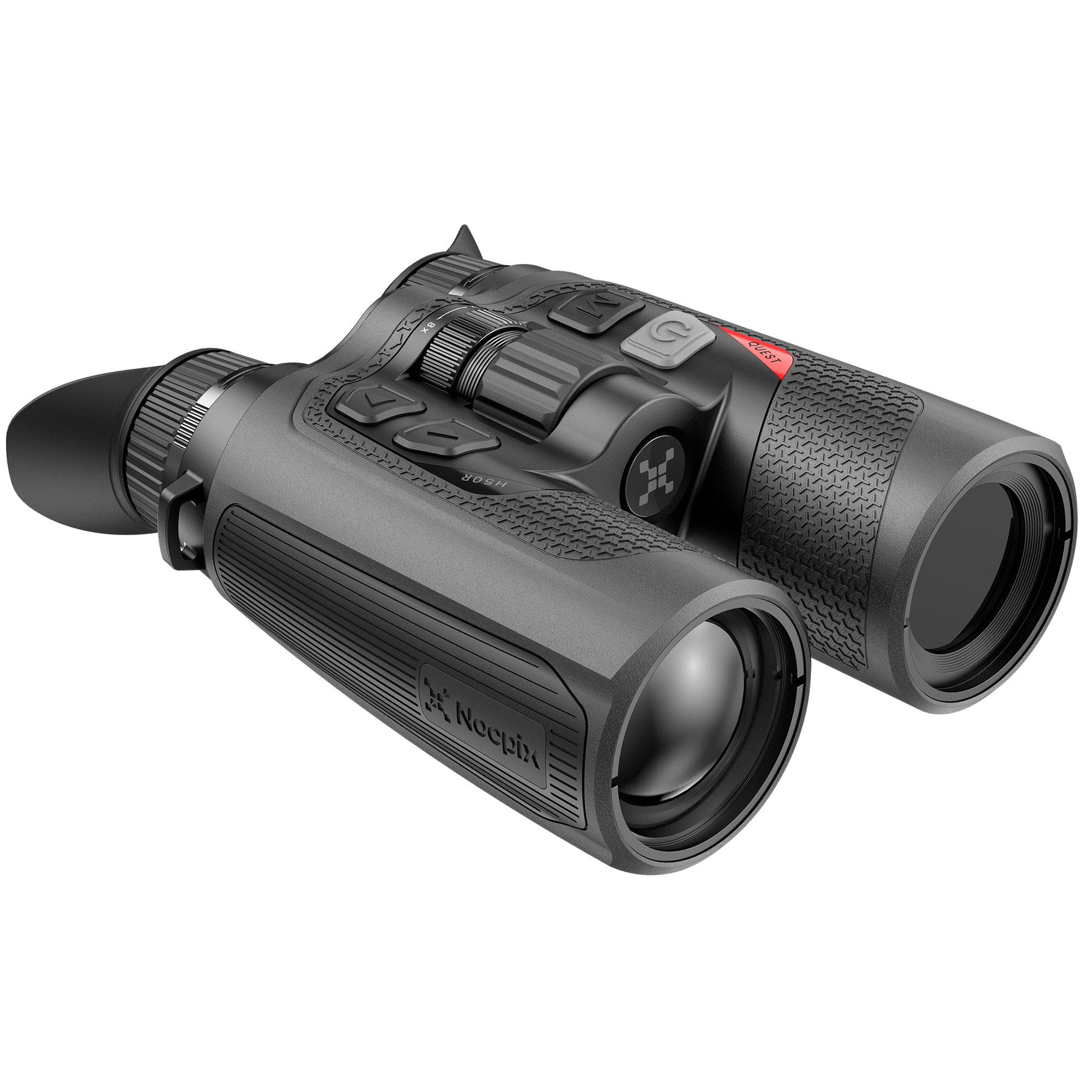

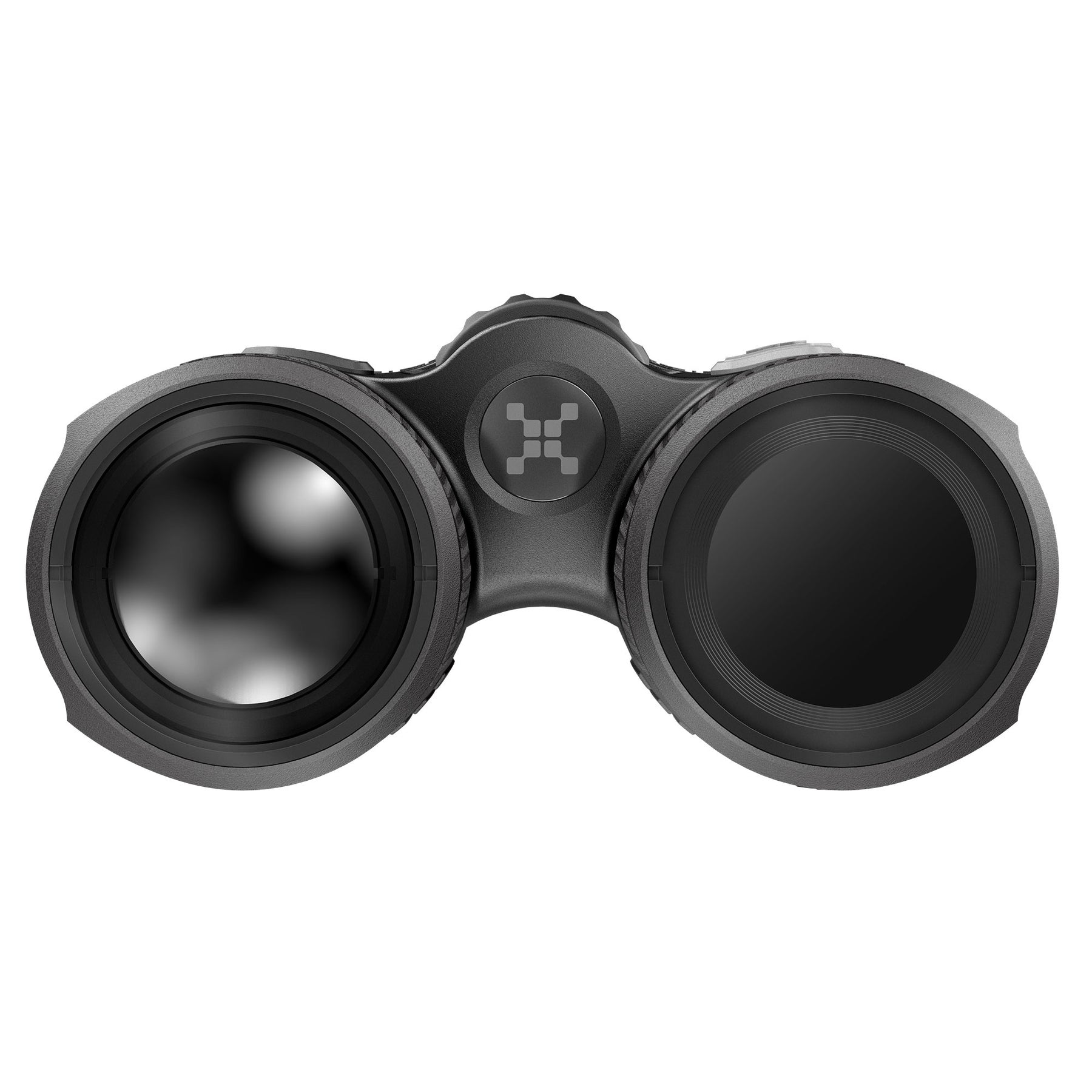

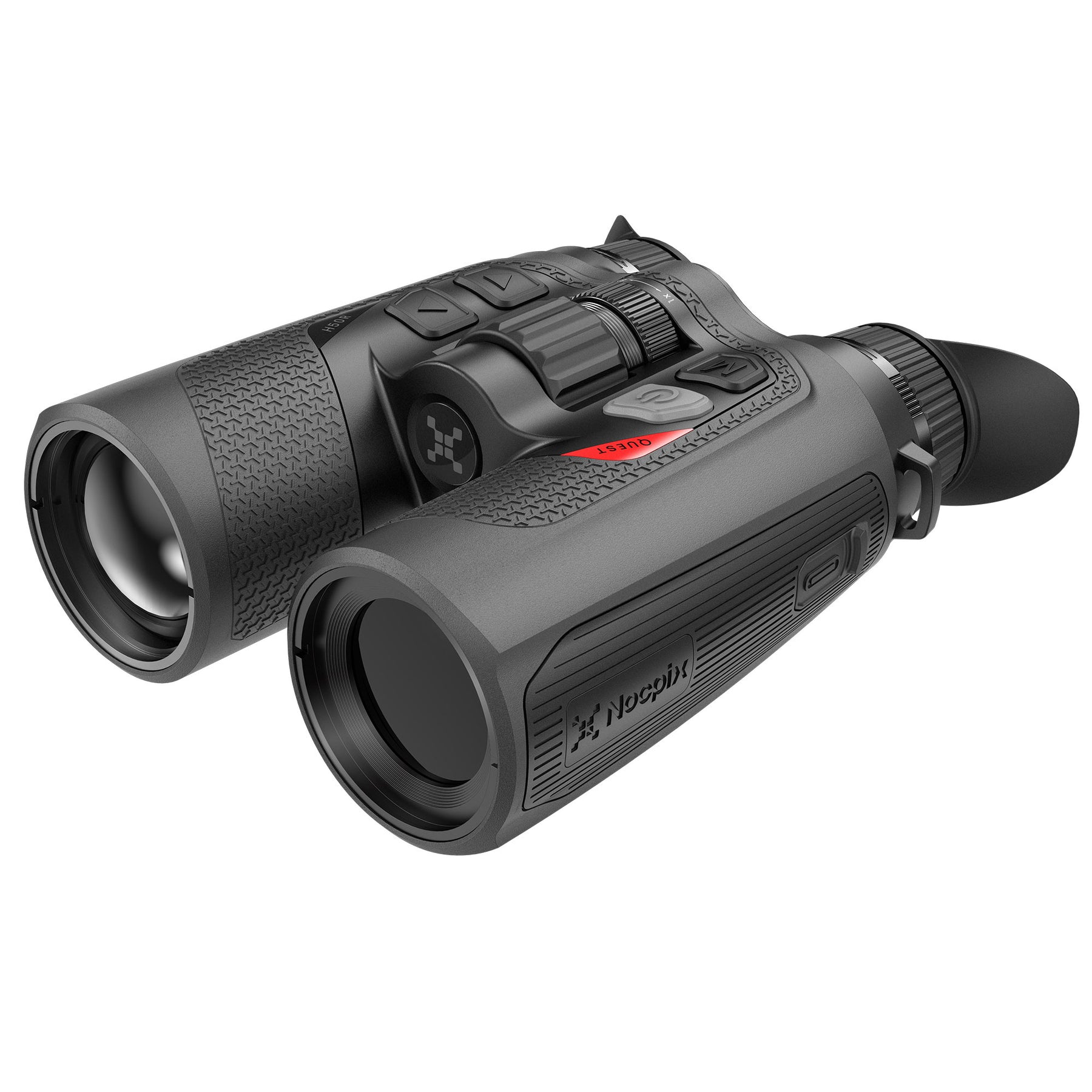

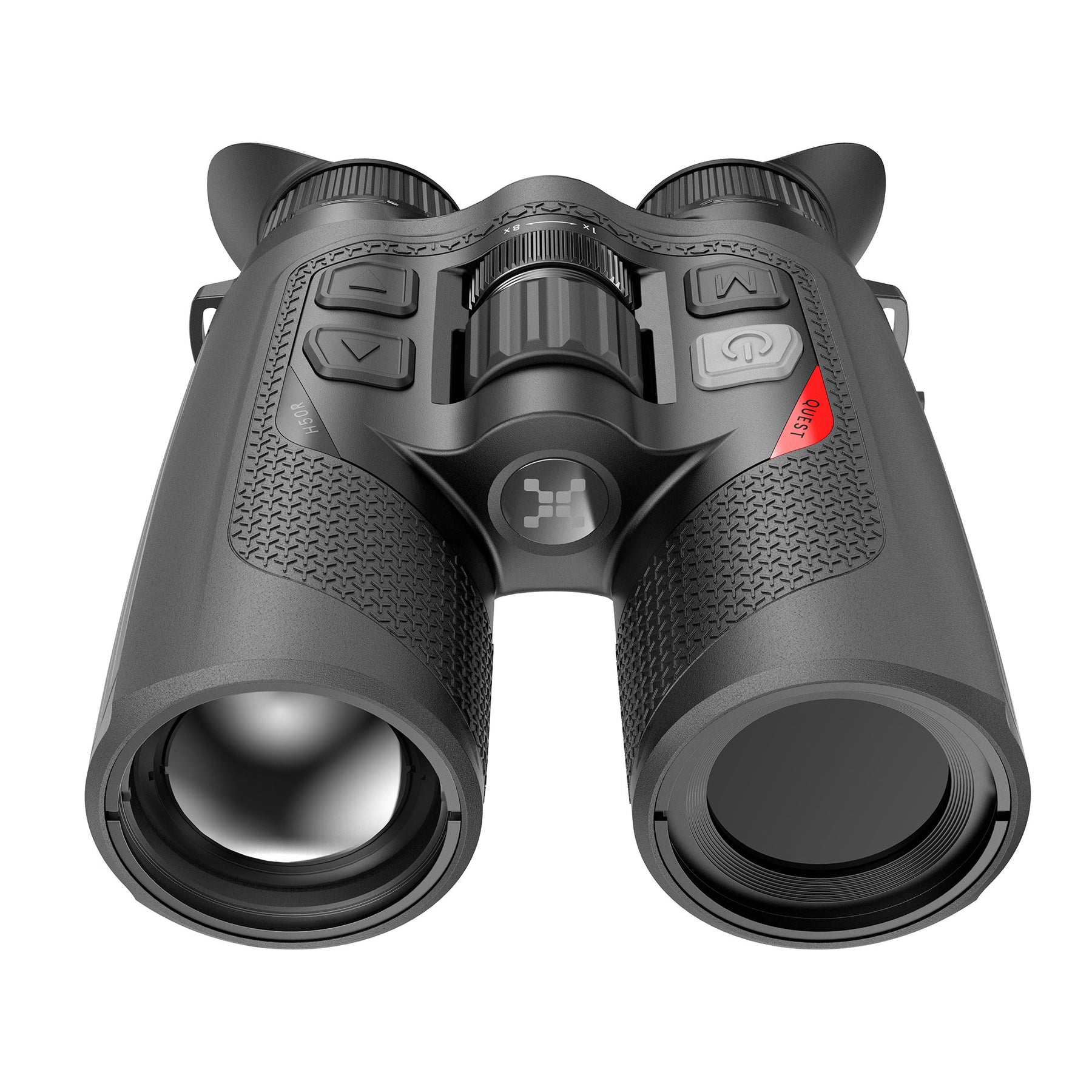

NocPix QUEST L35R Thermal Imaging Binoculars with LRF

The QUEST L35R uses a 384×288 thermal sensor with a 12μm pixel pitch and ≤15mK NETD thermal sensitivity.

The lower sensor resolution compared with the H35R and H50R is the main reason the L35R sits at the entry point of the range, but its thermal sensitivity remains exceptionally strong. NETD determines how effectively the thermal system can distinguish small differences in temperature, and the L35R shares the same ≤15mK rating as the more expensive QUEST models.

This helps maintain usable thermal detail in lower-contrast conditions such as damp weather, mist and environments where the subject and background are relatively close in temperature.

A 60Hz refresh rate provides smooth movement while scanning and following moving heat sources, while R+ processing and Electronic Image Stabilisation help improve image clarity and stability.

The L35R uses the same fast 35mm F0.9 objective lens size as the H35R, but the lower-resolution sensor results in a very different viewing characteristic.

Base magnification starts at 5×, providing a relatively tight native image and making distant heat sources appear larger than through the wider-view H35R.

The 7.5° × 5.7° field of view covers approximately 13 × 10 metres at 100 metres. This is considerably narrower than the H35R, so the L35R is less suited to rapid wide-area scanning, but the stronger native magnification can be useful when observation is concentrated at moderate distances.

NocPix specifies a maximum detection range of up to approximately 1,800 metres for the QUEST L35R.

Detection range refers to the distance at which a suitably sized heat source may be detected under suitable conditions. It should not be confused with identification range, which will normally be considerably shorter.

The combination of the 35mm objective and 5× native magnification gives the L35R useful reach while keeping the price significantly below the higher-resolution QUEST models.

The QUEST L35R includes the same concealed laser rangefinder concept used across the QUEST family, with a manufacturer-stated ranging capability of up to 1,000 metres.

This allows distance information to be obtained directly through the binocular without carrying a separate handheld rangefinder.

The LRF is integrated into the body of the device, helping retain the clean binocular-style shape of the QUEST platform.

L35R: the most accessible QUEST model. It keeps the ≤15mK sensitivity, 60Hz refresh rate, LRF and core QUEST platform while using a 384×288 sensor and higher 5× base magnification.

H35R: the biggest step up for general use. Its 640×512 sensor provides almost three times as many thermal pixels and its much wider field of view makes scanning considerably easier.

H50R: retains the 640×512 sensor but moves to a 50mm lens and 4× base magnification for more distance-focused use across open ground.

S50R: the flagship, using a 1280×1024 sensor and exceptionally wide field of view for maximum image information and wide-area observation.

The L35R and H35R use the same 35mm F0.9 objective, the same 12μm pixel pitch, the same ≤15mK thermal sensitivity and the same 60Hz refresh rate. The major difference is sensor resolution.

The L35R uses a 384×288 sensor with 110,592 thermal pixels. The H35R uses a 640×512 sensor with 327,680 thermal pixels – almost three times as many.

This gives the H35R considerably more thermal image information and allows it to deliver a much wider 22 × 18m field of view at 100m while still starting at 3× magnification.

The L35R instead starts at 5× and provides a narrower 13 × 10m field of view. That can be useful when you naturally prefer greater native magnification, but it makes sweeping large areas slower.

Our view: if budget allows and you regularly scan mixed terrain, the H35R is the stronger all-round binocular. The L35R remains a very capable route into QUEST if you want the binocular platform, LRF and excellent thermal sensitivity without paying for the higher-resolution sensor.

The L35R makes most sense for someone who wants the comfort and features of the QUEST binocular platform but does not necessarily need a 640×512 or 1280×1024 thermal sensor.

It keeps many of the same headline features as the more expensive models, including ≤15mK sensitivity, 60Hz imaging, integrated 1,000m LRF, dual-eye viewing, image stabilisation, ballistic calculation, N-Link connectivity and the dual-battery system.

The compromise is resolution and field of view. If maximum thermal detail or rapid wide-area scanning is the priority, moving to the H35R is worthwhile. If value and native magnification matter more, the L35R is a strong entry point.

The QUEST L35R uses a high-resolution 1920 × 1200 AMOLED viewing system designed around comfortable two-eye observation.

A 10mm exit pupil and 25mm eye relief help provide a relaxed viewing position during longer sessions.

The device includes 64GB of internal storage for recording observations and supports photo, video and onboard audio recording.

The QUEST L35R uses the same dual-battery concept found throughout the QUEST family, combining a built-in 4200mAh battery with a replaceable rechargeable 18650 battery.

The replaceable external battery can be changed while the internal battery maintains power, reducing interruption during prolonged observation sessions.

Two rechargeable 18650 batteries and a dedicated 18650 battery charger are included with the L35R.

Actual battery runtime will depend on ambient temperature and the use of features such as recording, wireless connectivity, LRF and display brightness.

The L35R uses the same traditional binocular-style design language as the rest of the QUEST family, with a full-rubber coating to improve grip and provide additional protection during field use.

At around 700g, it remains relatively lightweight for a thermal binocular and is designed for comfortable prolonged handheld observation.

The device carries an IP67 rating for protection against water and dust, making it suitable for demanding outdoor conditions.

• NocPix QUEST L35R Thermal Imaging Binoculars with LRF
• Portable carry bag
• 2 × 18650 rechargeable batteries
• 18650 battery charger
• Data cable
• Neck strap
• Lens cleaning cloth
• Quick-start guide
• Lens cap

The QUEST L35R is covered by the NocPix manufacturer's standard warranty.

Main device: 3-year warranty
Battery: 2-year warranty
Thermal detector: 10-year warranty

For products purchased through an authorised NocPix dealer, the warranty period begins from the purchase date shown on the original invoice.

The manufacturer's warranty covers qualifying failures caused by defects in materials, manufacturing or production under normal use and maintenance. Accidental damage, misuse, unauthorised repair or modification and damage caused by incorrect use are not covered by the standard warranty.

Keep your Bamfords proof of purchase as evidence of the original purchase date for any future warranty claim.

What sensor does the QUEST L35R use?
The L35R uses a 384×288 thermal sensor with a 12μm pixel pitch and ≤15mK NETD.

What is the detection range of the L35R?
NocPix specifies a maximum detection range of approximately 1,800 metres.

Does the L35R have a laser rangefinder?
Yes. The concealed integrated LRF has a manufacturer-stated ranging capability of up to 1,000 metres.

What is the difference between the L35R and H35R?
Both use 35mm F0.9 lenses, ≤15mK sensitivity and 60Hz refresh rates. The L35R uses a 384×288 sensor with 5× base magnification and a 13 × 10m field of view at 100m. The H35R uses a higher-resolution 640×512 sensor, starts at 3× and provides a much wider 22 × 18m field of view.

Does the L35R have ballistic calculation?
Yes. NocPix lists ballistic calculation support as part of the QUEST L35R feature set.

What batteries does the L35R use?
It uses a dual-battery system consisting of a built-in battery and a replaceable rechargeable 18650 battery.

Are batteries included?
Yes. Two rechargeable 18650 batteries are included.

Does it include a charger?
Yes. A dedicated 18650 battery charger is supplied in the package.

Does the L35R record video?
Yes. It supports photo, video and audio recording and includes 64GB of internal storage.

Is the L35R waterproof?
It carries an IP67 rating for protection against water and dust.

How long is the NocPix warranty?
NocPix's standard warranty provides 3 years for the main device, 2 years for the battery and 10 years for the thermal detector, subject to the manufacturer's warranty terms.
