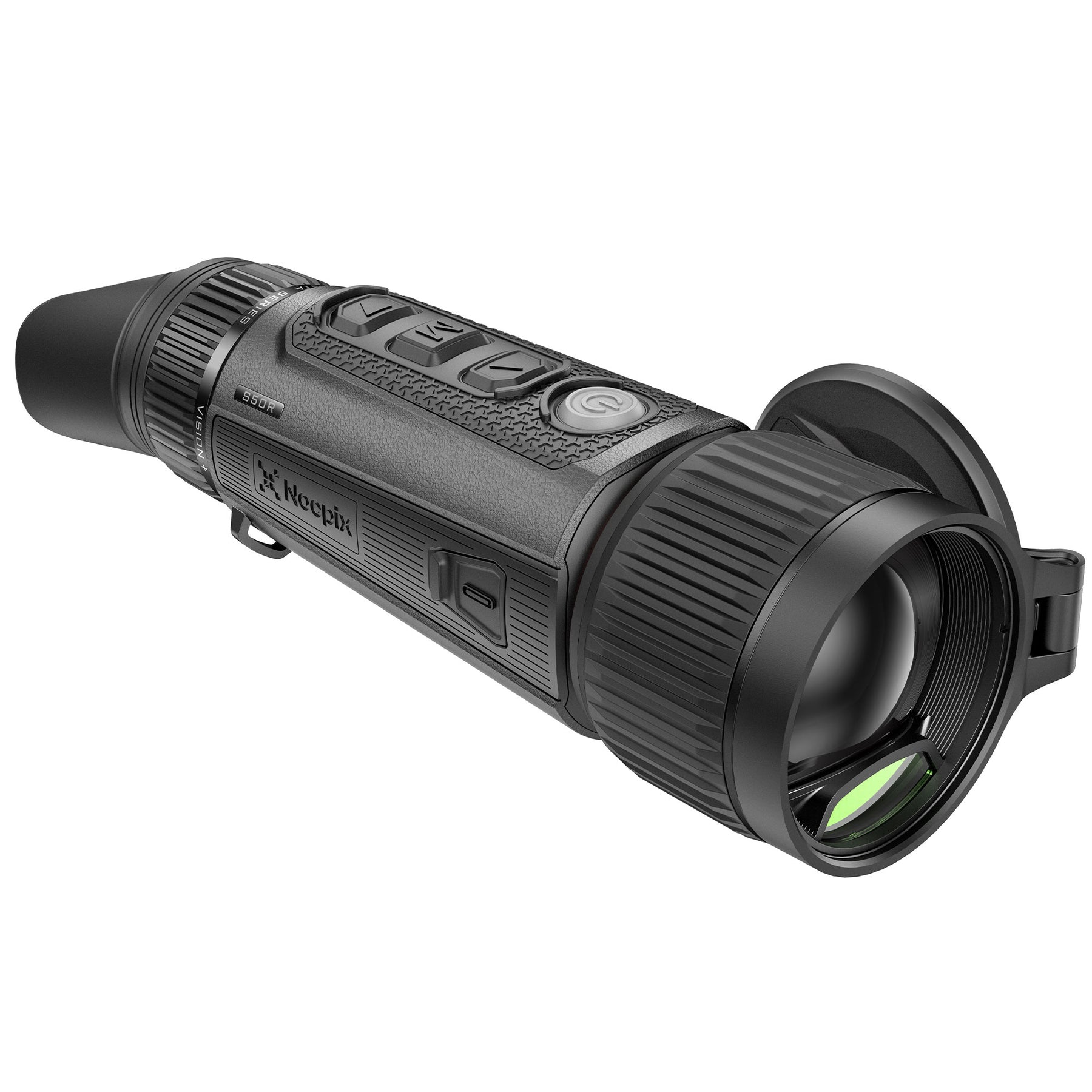

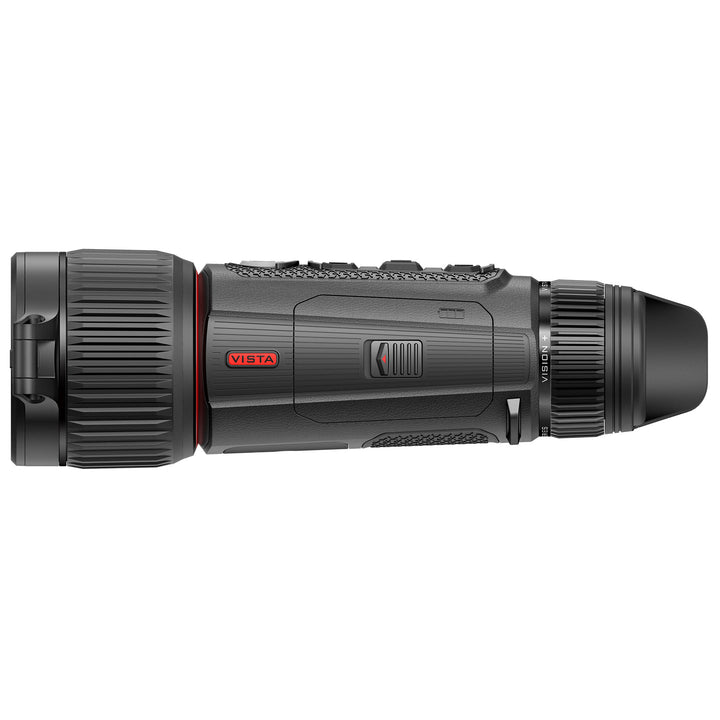

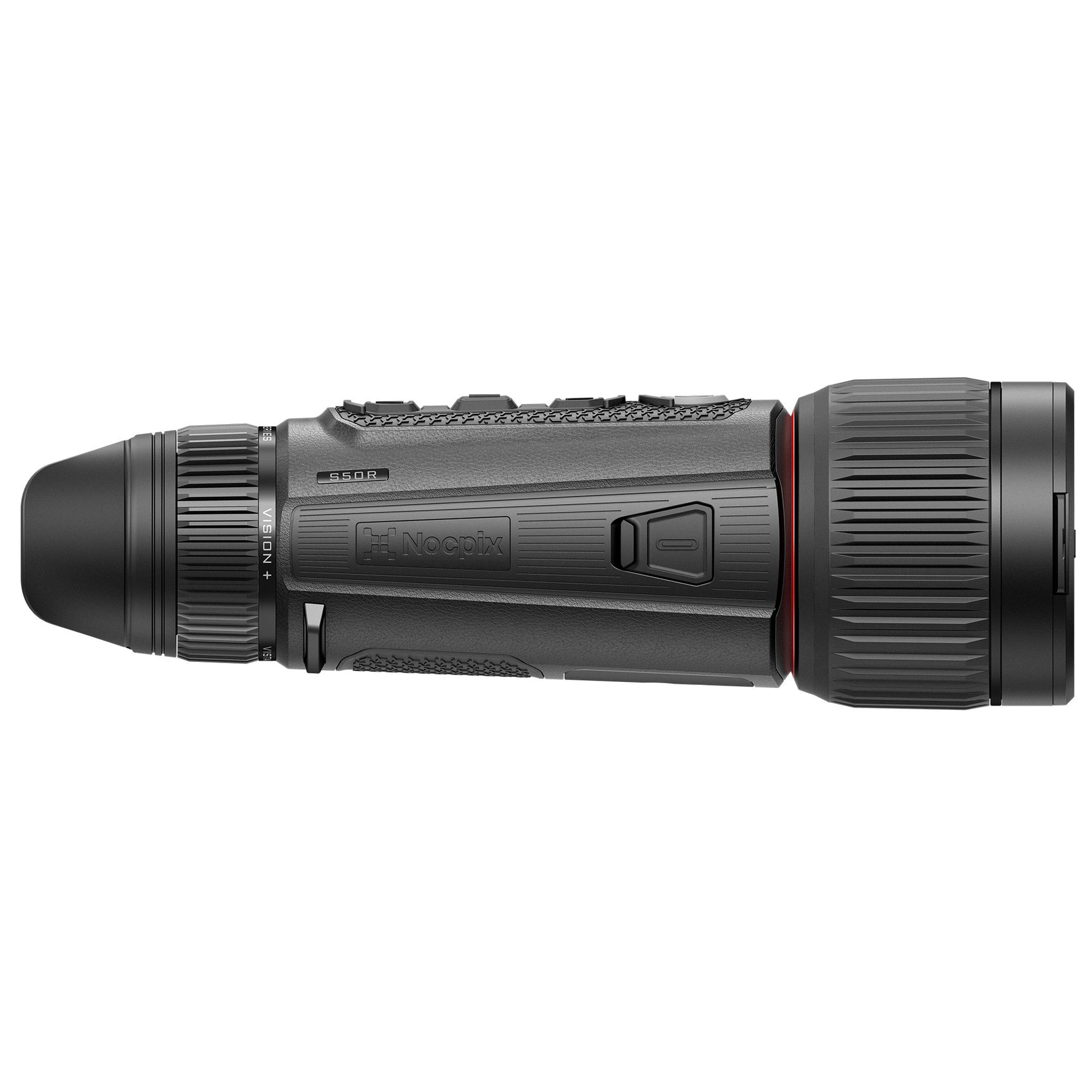

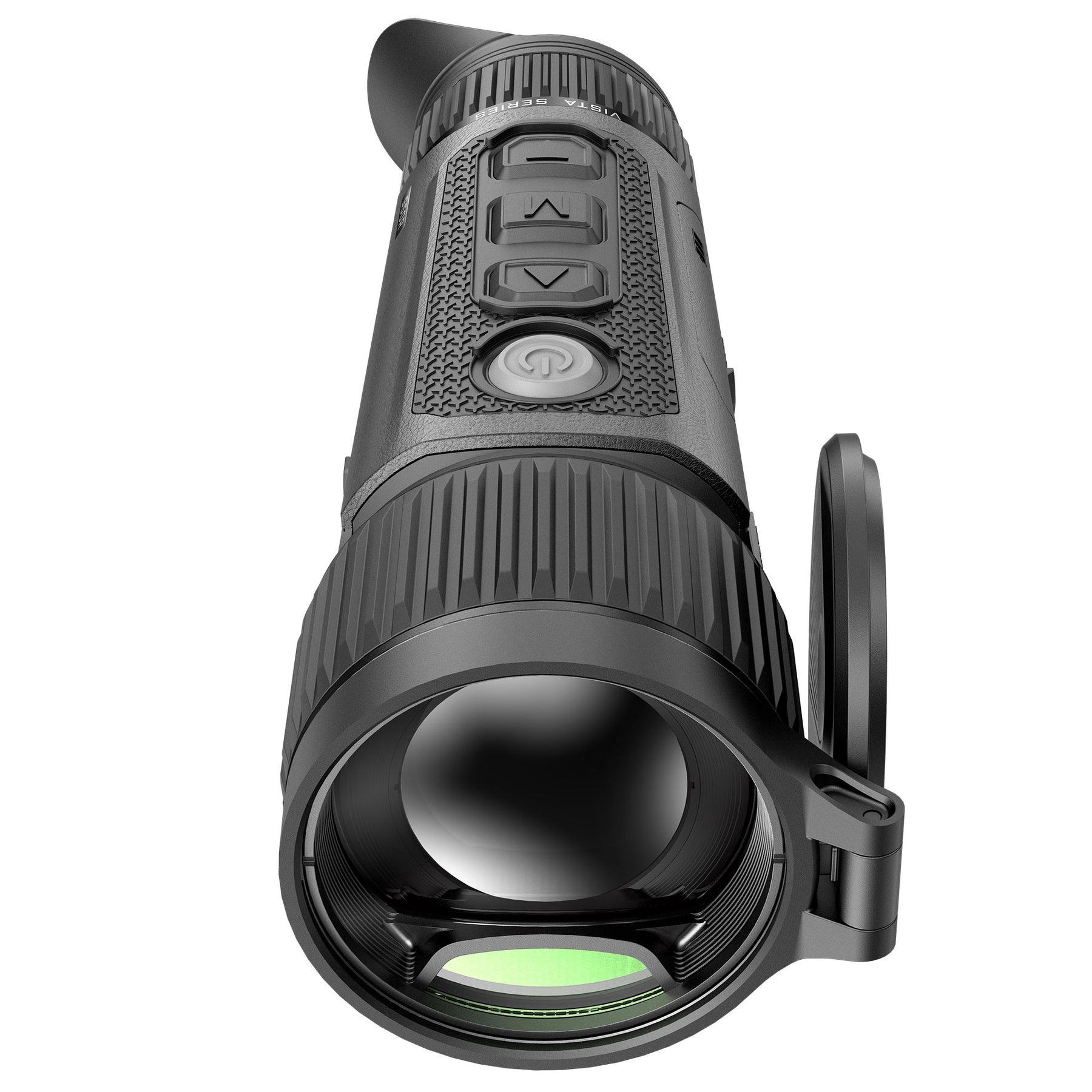

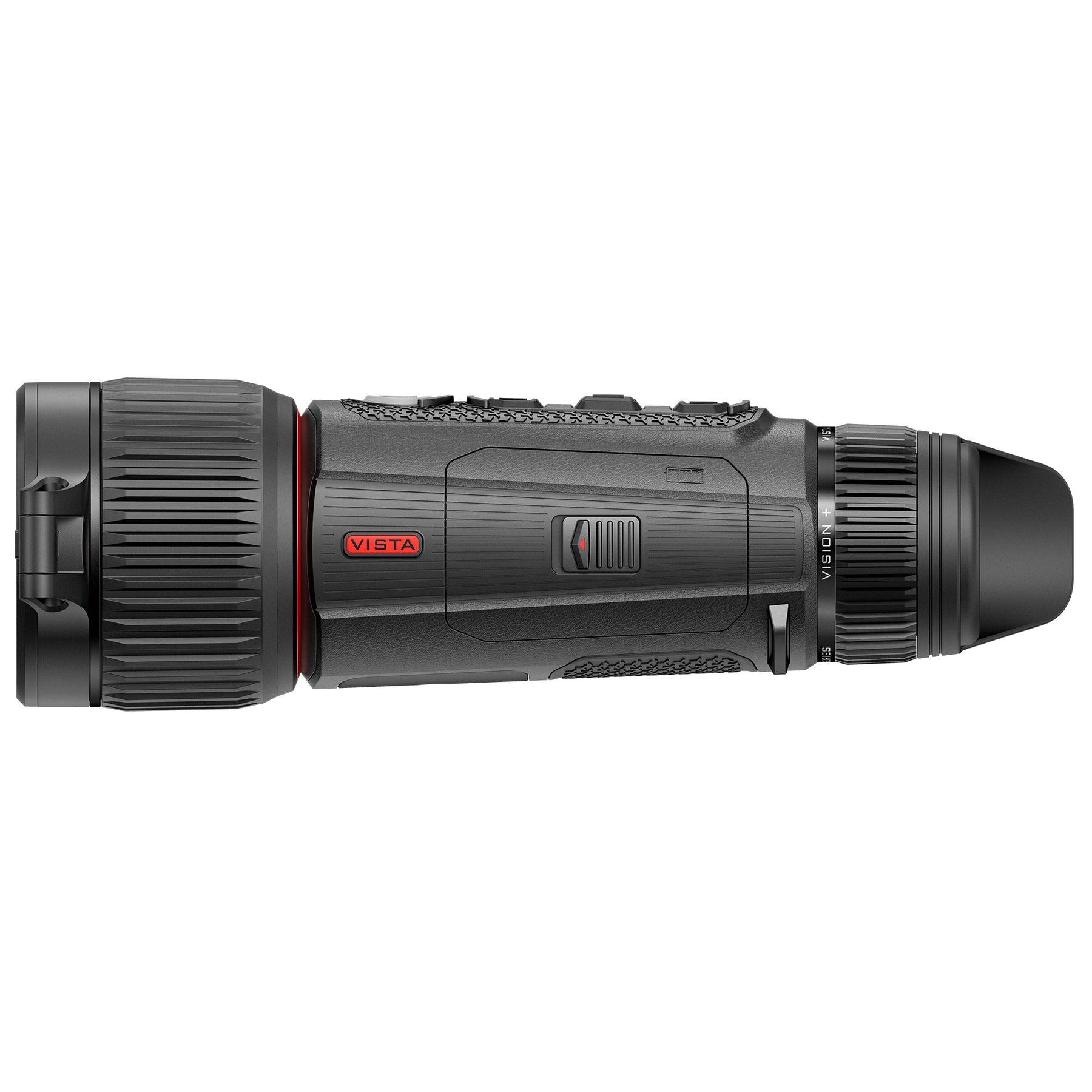

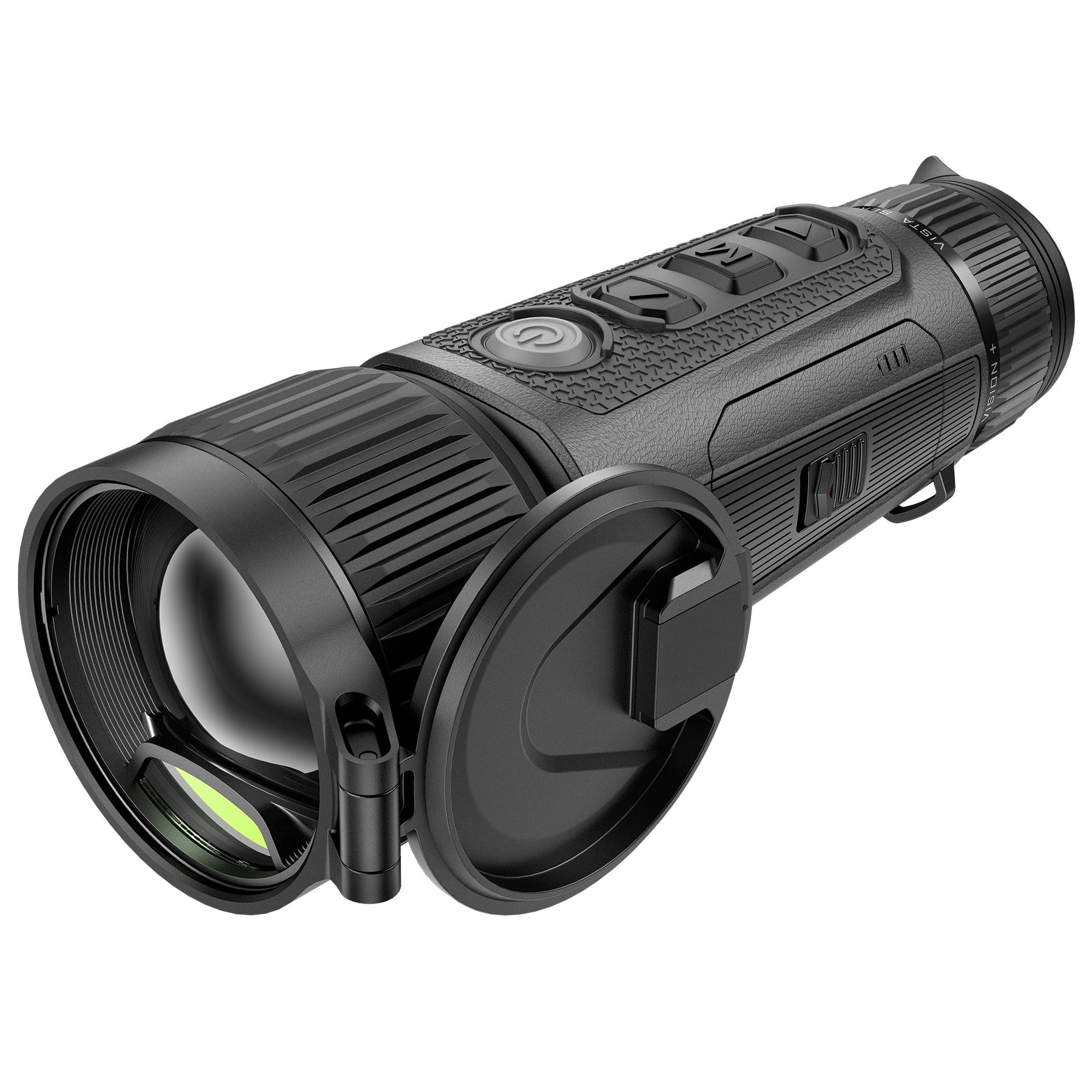

NocPix VISTA S50R Thermal Imaging Monocular with LRF

The VISTA S50R is the model to choose if maximum thermal image detail is the priority. Its 1280×1024 detector provides four times the thermal pixel count of a 640×512 sensor, giving substantially more image information before digital magnification is even applied.

What makes the S50R particularly unusual is that the higher resolution does not come with an extremely narrow field of view. Its 2× base magnification and 31 × 25m field of view at 100m make it exceptionally strong for scanning while still offering very high detail.

The built-in 1,200m laser rangefinder also removes the need to carry a separate rangefinder, while ballistic calculation functionality adds another layer of information for users who require precise range data.

If you want excellent VISTA performance at a lower price, the H50R provides a 640×512 sensor and 50mm lens with integrated rangefinding. If you want the very best VISTA image quality, choose the S50R.

H35: Wide-view 640×512 model without integrated rangefinding.

H35R: Combines the 35mm 640×512 platform with integrated 1,200m laser rangefinding.

H50: Longer-range 640×512 model with a 50mm lens and 4× base magnification.

H50R: Adds the integrated 1,200m LRF to the H50's 640×512 / 50mm platform.

S50R: Flagship VISTA with 1280×1024 resolution, 50mm F0.9 objective, 2× base magnification and a very wide 31 × 25m field of view.

The S50R and H50R both use a 50mm F0.9 objective lens and both include integrated 1,200m laser rangefinding. The major difference is the detector.

The H50R uses a 640×512 sensor, containing 327,680 thermal pixels. The S50R uses a 1280×1024 sensor, containing 1,310,720 thermal pixels.

That means the S50R has four times as many thermal pixels. Fine detail is therefore retained substantially better, especially as subjects become smaller or digital magnification is applied.

The S50R also starts at just 2× magnification and provides a 31 × 25m field of view at 100m, compared with 4× and 15 × 12m on the H50R.

Choose the H50R if you want premium long-range performance and rangefinding at a lower price. Choose the S50R if you want the highest possible image detail and an exceptionally wide scanning view.

Thermal sensor resolution determines how much thermal information is captured before the image is enlarged or processed.

The S50R's 1280×1024 detector contains 1,310,720 thermal pixels. By comparison, a 640×512 detector contains 327,680 pixels.

This higher native resolution allows the S50R to show finer outlines, smaller temperature differences and more target detail. It also means more information remains available when digital zoom is used.

Despite using a 50mm objective lens, the S50R starts at only 2× magnification because of its much larger 1280×1024 detector.

This produces a wide 17.5° × 14.0° field of view, equivalent to approximately 31 × 25 metres at 100 metres.

That means the S50R can scan a substantially larger area than the H50R while simultaneously providing much greater native thermal resolution.

The VISTA S50R incorporates an integrated laser rangefinder with a manufacturer-specified ranging capability of up to 1,200 metres.

This allows you to locate a heat source, observe it and measure its distance using a single handheld device rather than switching between a thermal monocular and separate rangefinder.

The S50R also incorporates ballistic calculation functionality for users who require additional range-based information.

The VISTA series uses NocPix's Vision+ system, built around a 2560×2560 circular AMOLED display and 8mm exit pupil.

The high-resolution circular display is designed to provide a large and immersive image, making the VISTA particularly comfortable during extended periods of scanning and observation.

On the S50R, the display is paired with the 1280×1024 detector, allowing the device's very high native thermal resolution to be presented with excellent visual detail.

NocPix thermal imaging products are supplied with manufacturer warranty cover when purchased through an authorised dealer.

• Main unit: 3-year warranty
• Battery: 2-year warranty
• Thermal detector: 10-year warranty

Warranty periods begin from the purchase date shown on your invoice and remain subject to NocPix's current warranty terms.

If you purchase your NocPix VISTA S50R from Bamfords, Bamfords is your point of contact should you require assistance with a warranty claim.

What sensor does the NocPix VISTA S50R use?
The S50R uses an ultra-high-resolution 1280×1024, 12μm thermal sensor with NETD sensitivity of ≤15mK.

What is the difference between the VISTA S50R and H50R?
Both use 50mm F0.9 lenses and integrated laser rangefinders, but the S50R upgrades from 640×512 to 1280×1024 thermal resolution. It also starts at 2× rather than 4× magnification and provides a much wider field of view.

How far does the VISTA S50R rangefinder work?
NocPix specifies an integrated laser ranging distance of up to approximately 1,200 metres.

Is the VISTA S50R good for scanning?
Yes. Its 2× base magnification and 31 × 25m field of view at 100m make it the widest-view model in the current VISTA range.

Does the S50R have ballistic calculation?
Yes. Ballistic calculation is included as part of the S50R's advanced rangefinding functionality.

What refresh rate does the S50R use?
The thermal detector operates at 60Hz for smooth viewing when scanning and following moving heat sources.

How many thermal pixels does the S50R have?
A 1280×1024 detector contains 1,310,720 thermal pixels, four times the pixel count of a 640×512 detector.

How many batteries come with the VISTA S50R?
Two rechargeable IBP-7 battery packs are supplied with the VISTA package.

• NocPix VISTA S50R Thermal Imaging Monocular
• 2 × rechargeable IBP-7 battery packs
• Portable carry bag
• Data cable
• Neck strap
• Lens cleaning cloth
• Quick-start guide
